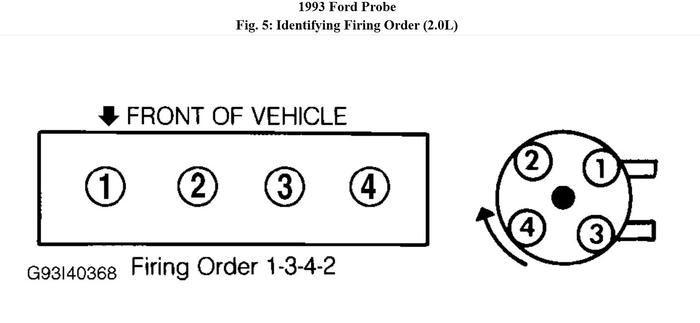

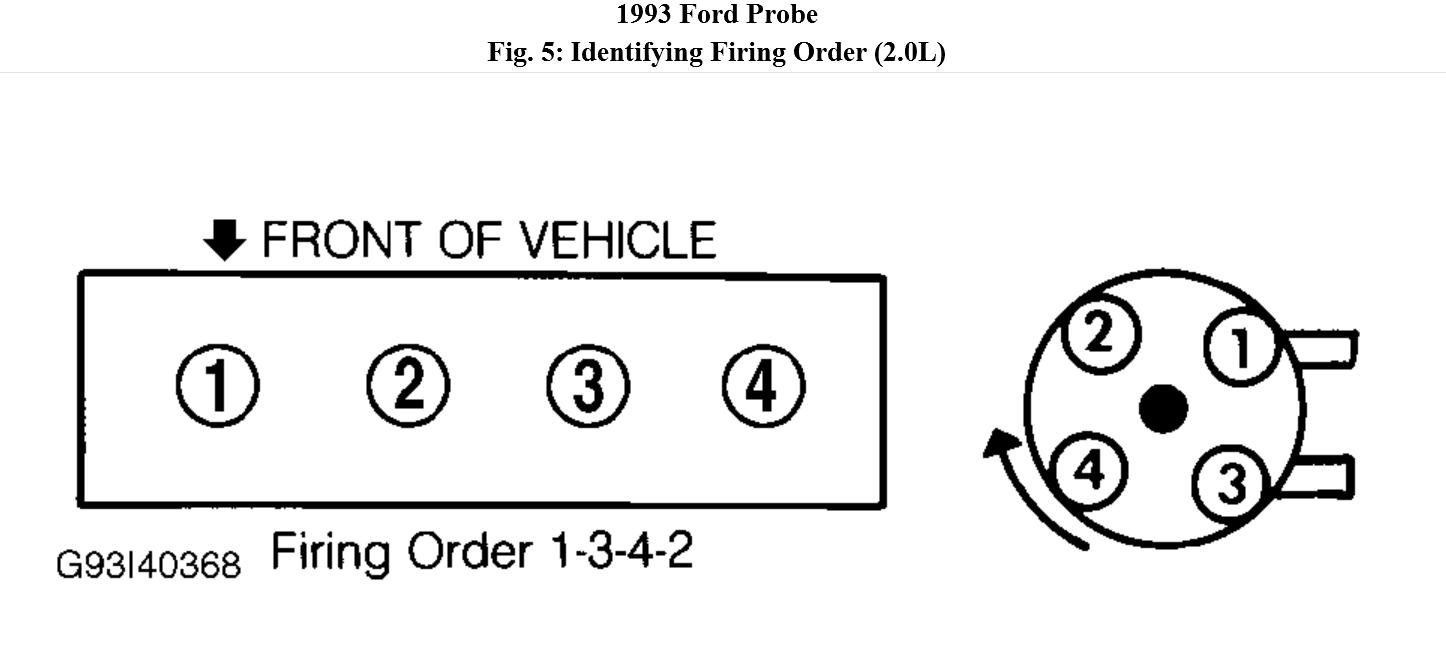

what is the head lay out and fireing order on 1993 ford probe base

What is the engine model code?

iwill get it it is 2.0duelover head cams 16valves

Refer to diagram.

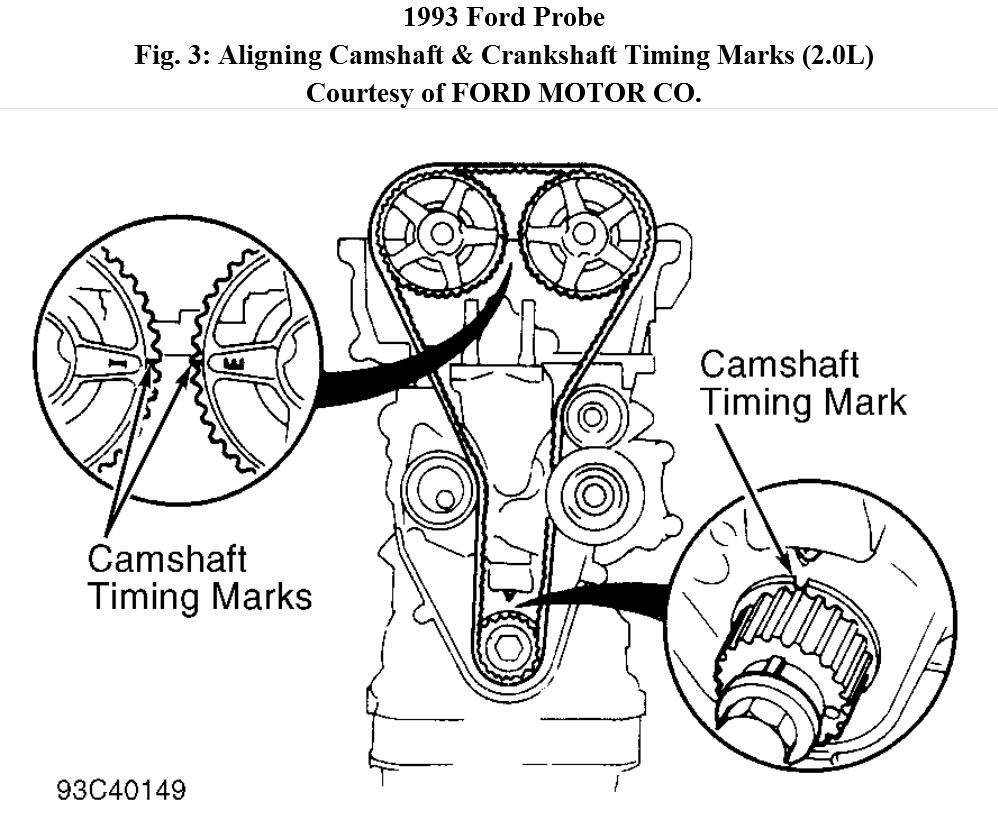

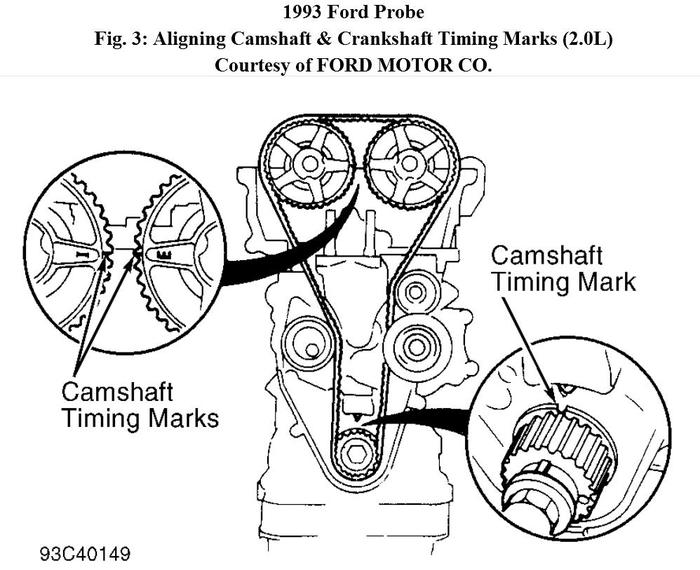

hey guys thanks for all of your help ok so i got the head redone bought new gaskets a new starter but the repair man could not get the timeing belt on so ibought ahaynes manual the tear down and rebuild the book said take off front wheel andfenderwell but this man would not take off that front wheel he was goeing to take out my motor to try and get the belt on and then said the haynes book was wrong so i called it guys i called a junk man to pickup the1993ford probe and he paid me one hundred and seventy five dollers so i have nocar your thoughts on this repair man thanks godbless

thanks guys 4allyour help god bless

Procedure involves removing the wheel and upper/lower splash shields. You got yourself a mechanic that do not want to use his brains.

You're welcome but that is not the way I would have expected you to resolve the problem.

I have a 1997 ford probe gt They use the same KLDE engines in the models 92-97

My firing order is like this



Firewall side
1 3 5
Engine
2 4 6
Bumper side

Most of the workshop manuals get this wrong, but this is the correct order for 2.5l v6 probes.



Disregard this, woops looks like you don't have the v6..... sorry about that.
