Horn Relay

1993 FORD AEROSTAR
208,000 MILES • 6 CYL • 4WD • AUTOMATIC
Avatar
KBEUCKE
  • MEMBER
  • 78 POSTS
Trying to put in a horn relay but having trouble finding it. I was told it was under the dash just right of the steering column, but I do not see it there.Any where else it could be?
Jan 9, 2011 at 4:56 PM
Advertisement
Avatar
MERLIN2021
  • CERTIFIED EXPERT
  • 17,250 POSTS

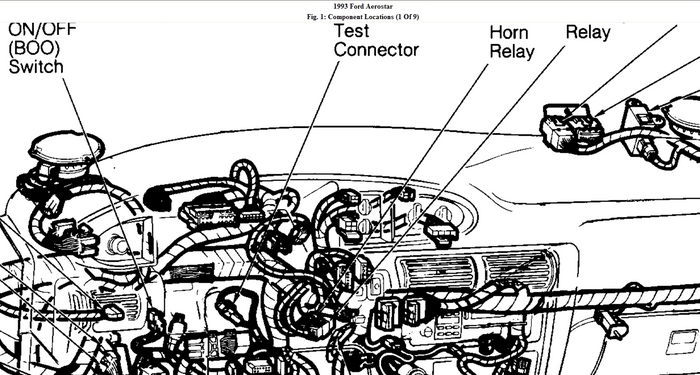

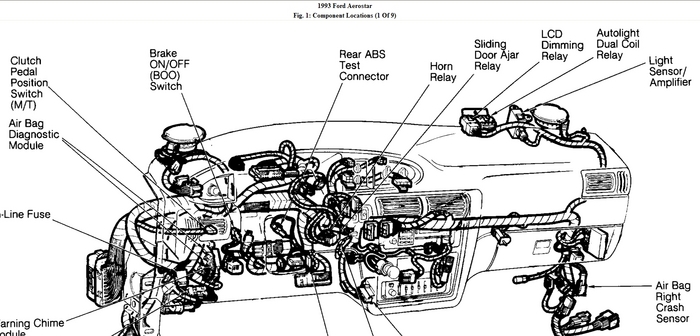

Check the pictures below.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jan 9, 2011 at 5:07 PM
Avatar
KBEUCKE
  • MEMBER
  • 78 POSTS
hard to tell is this to the right of the steering wheel and pretty far up into the dash?
Jan 9, 2011 at 5:11 PM
Advertisement
Avatar
MERLIN2021
  • CERTIFIED EXPERT
  • 17,250 POSTS
yes it's to the right of the steering column.
Jan 9, 2011 at 5:19 PM
