no turn signals

Might want to check the Turn Signal Flasher. It is mounted under the center of the dash, to the A/C duct

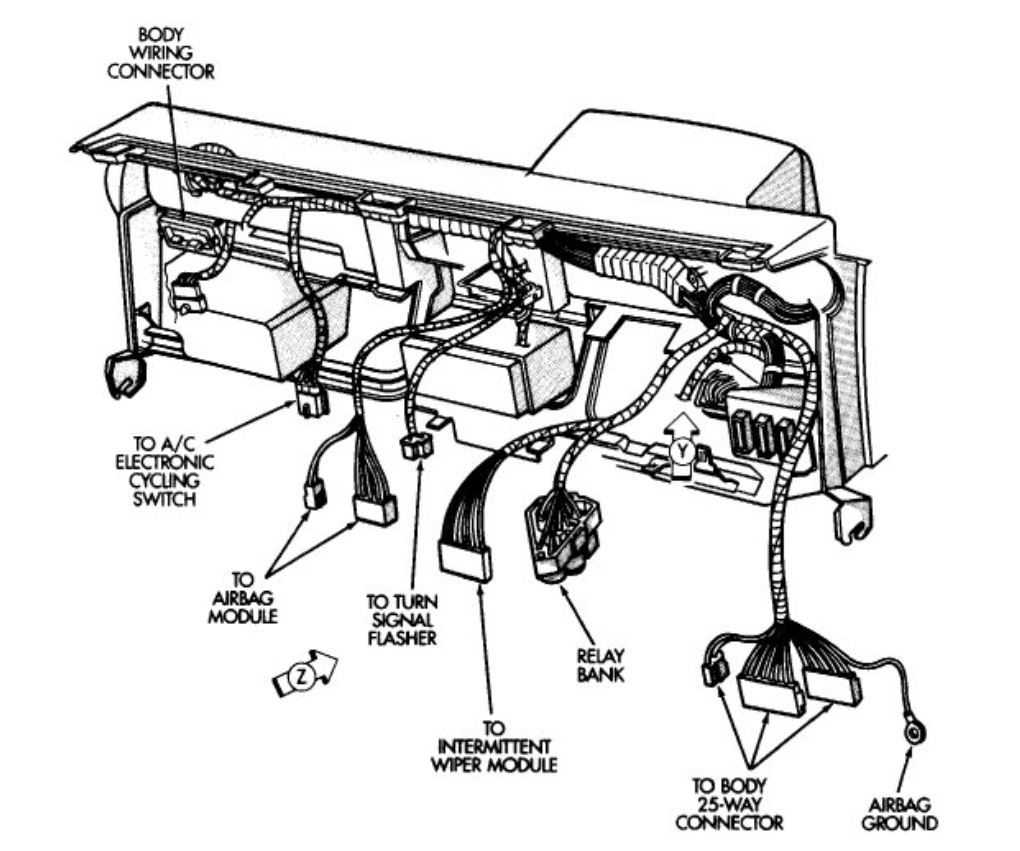

See the picture below for location

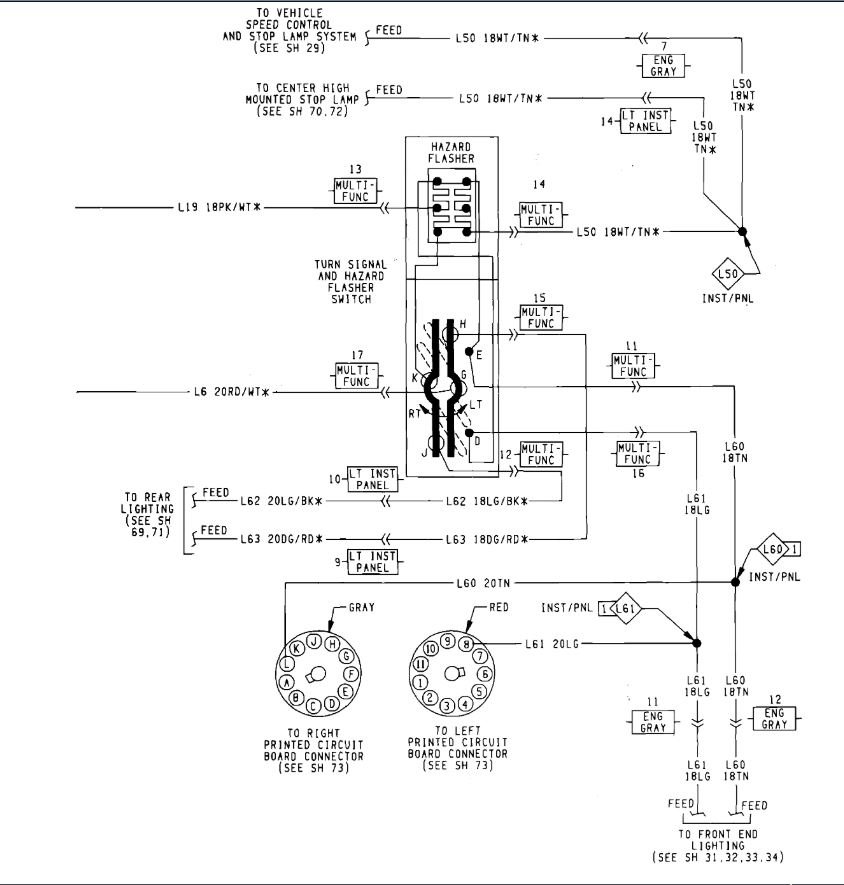

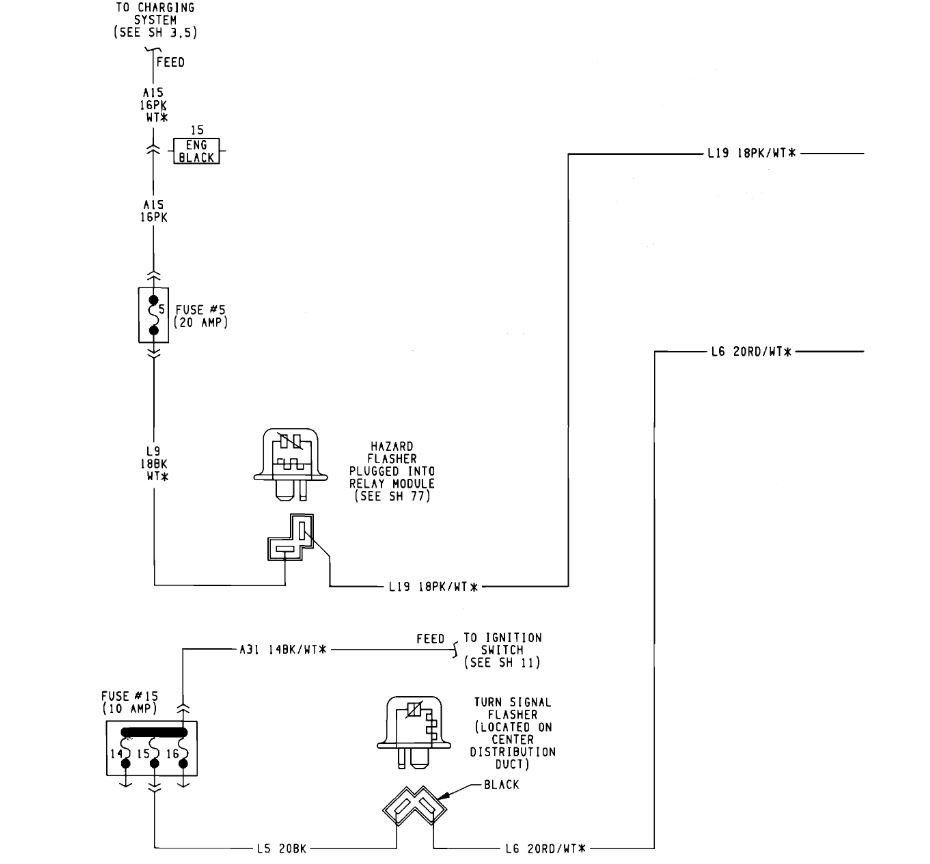

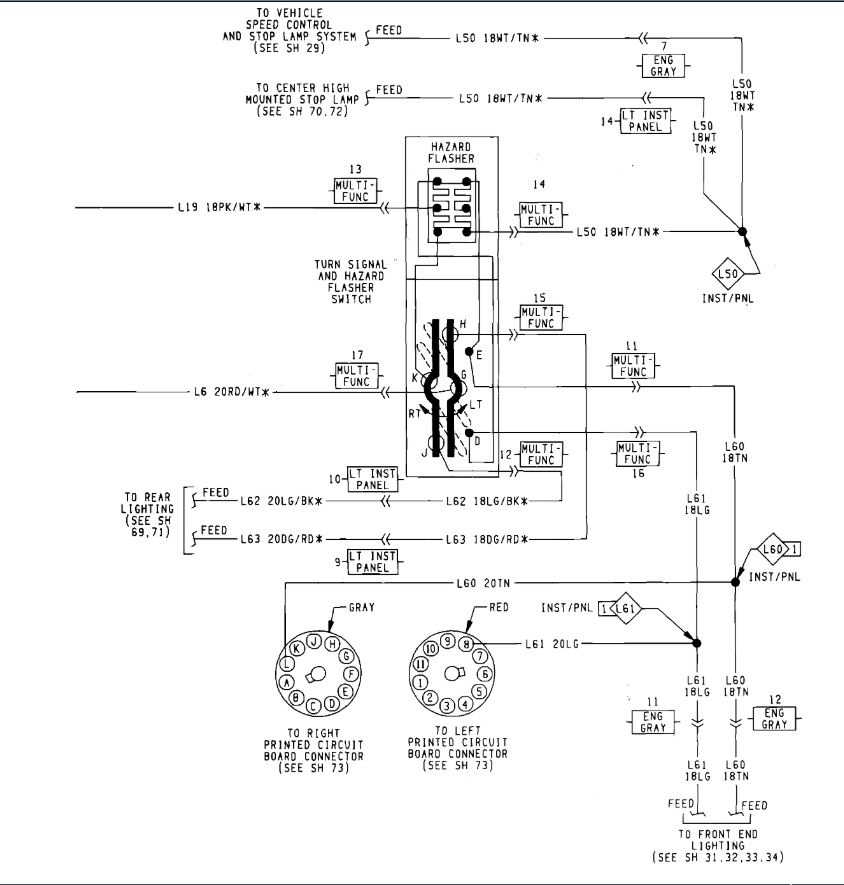

Also attached below is the wiring diagram for the turn signals to help you find the problem

Electrical problem
1993 Dodge Shadow 6 cyl Front Wheel Drive Automatic 49.321 miles

All lights work, checked all fuses, emg. flashers work, changed flasher shown in manual two times. for $25.00 I was told by a (service manager) there are two flashers for this car but could not tell here they are located.

Need help

Sparkjumper

The signal flasher hangs to the right of the radio. Can't remember if you can see it from under the dash or if you have to pop the glove box out.

Also, be sure two rear lights on each side are turning on with the hazard flashers. If only one on each side work, there won't be enough current flow to make the signal flasher turn on and off. Look for corroded ground pins that slide into the bulb sockets.
caradiodoc

Okay, my car is a 1993. My turn signals will not work, my lights in my car work and my hazard lights and brake lights work, but my turn signals will not work. I have changed all the fuses changed the dimmer switch put all new light bulbs in it and have cleaned them all and they still will not work. can somebody help me?

Have you checked your turn signal switch?

yes, i have checked the switch. i have just put a new one on it.

I did all of this with my Shadow. The actual turn signal flasher is not one in the same with the hazard lamps. The turn signal flasher is behind the plastic cover under the drivers side dash, close to the center, mounted on the air duct.

[quote:f1ad00d73e="carriew161"]ok i have a 93 dodge shadow my turn signals will not work my lights in my car work and my hazzard lights and break lights work but my turn signals will not work. I have changed all the fuses changed the dimmer switch put all new light bulbs in it and have cleaned them all and they still will not work can some body help me?[/quote:f1ad00d73e]

I found the hazaard flasher with two relays but cannot find this other flasher you say is there. Can you be more specific about location?

uryannelson can you private message me on this? I am new to the forum and cannot private message yet.

Hey shadow 727, today i was researching on how to fix the lights on my reverse in the back and i stumbled onto your question. Today i was also messing around under the driver seat and right next to were my stereo is at and i removed these two circle cylinders that make a clicking sound. To my almost heart attack i later tried to use my emergency brake and my turn signals and i found out why they stopped working. If you still need help please email me and i will send you pictures of my Dodge Shadow 1993 with instructions on were to locate the problem and pictures of the cylinder you need to purchase.

Hi, I have a 1993 Dodge Shadow and I am having the same no turn signal problem. Where is the turn signal flasher located?
