fuel relay

Its mounted in the engine compartment, by the firewall in a relay pack

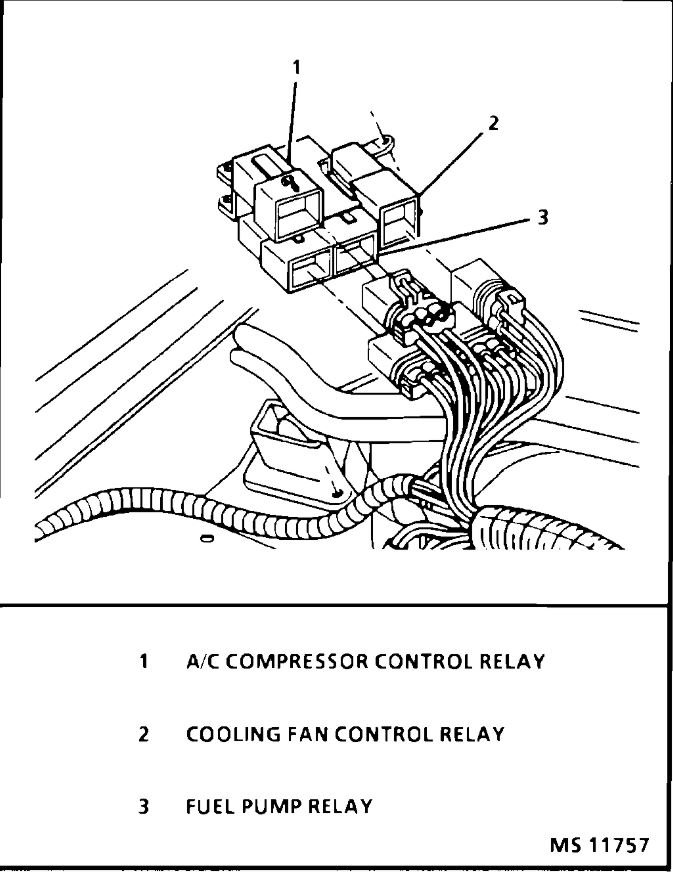

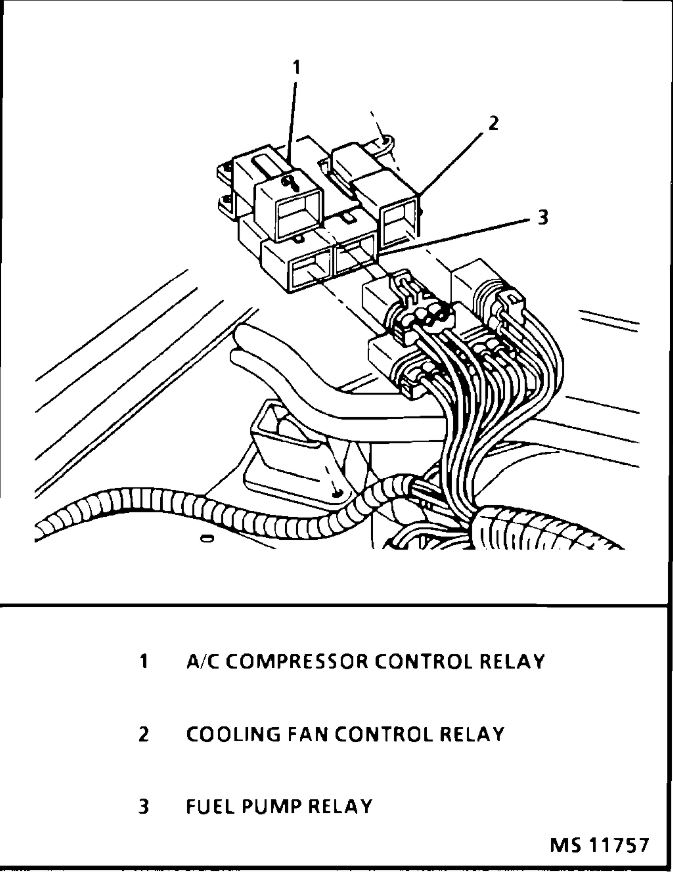

See the diagram below for location

I know that the relay is located on the firewall behind the right shock tower,but,which one is it? There are four relays on the bracket & I had someone turn key on while I felt for one to click. Well, 2 of the damn things clicked, so now I'm confused as to which is the correct one. I've looked online, Haynes manual, & neither is definitive as to which one of the four is the correct one. Since I at least have it narrowed down to two possibilities,I guess I could just use process of elimination,but if you can tell me exactly which one,it would be very appreciated! Thanks,SEABEE

Which relay are you looking for?That would really help since you said there are four of them.

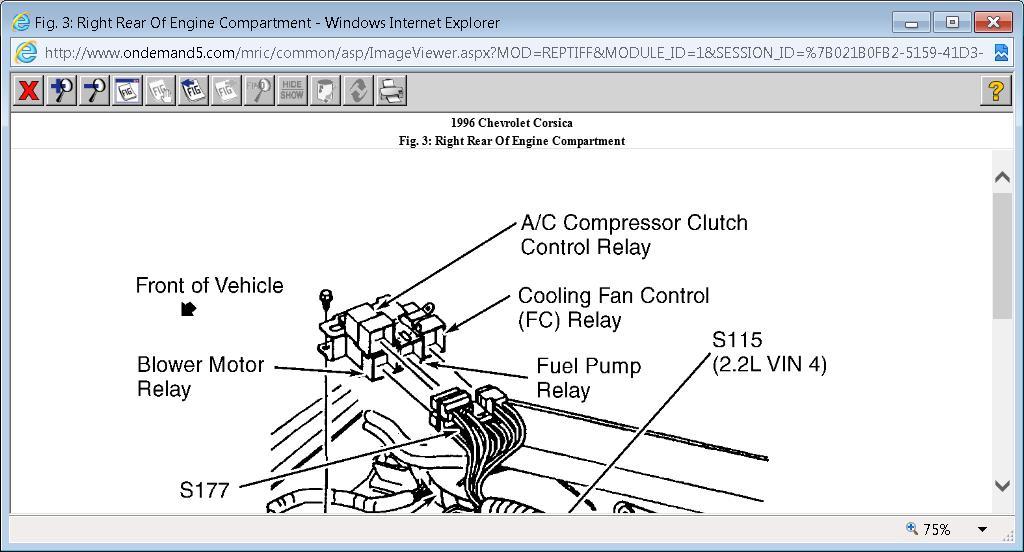

here you go.

Thanks Saturntech9! I am looking for the FUEL PUMP RELAY & they are all in a straight line on the bracket, NOT like the layout on the diagram you just sent,but THANKS anyway!

Which engine do you have?

2.2 4cylinder

Electrical problem
1991 Chevy Corsica Engine Size unknown Two Wheel Drive Automatic 200000 miles
----------------------------------------------------------------
the fuel pump stays runing after car is shut off. Where is the fuel pump relay located.
Thanks

Its on the relay bracket in center of firewall engine compartment

The fuel pump relay has a dark green wire with a white stripe a black wire with a white stripe A gray wire and a pink wire.That should help you find the relay.

Got it! Thank you very much! You've been a big help!

Your welcome let me know what you find.

Just fixed it man! It was exactly as you described! Gravy job when you know what the hell to look for! Appreciate it very much!

Your welcome that's what we're here for glad you got it fixed.So bad relay or poor connection? I haven't seen too many bad relays.

where is the fuel pump relay located on a 92 chevy corsica?

On relay bracket, at right rear corner of engine compartment

Well,not exactly sure! The car wouldnt start the other day for my girlfriend & when I tried it, it fired right up! I shut it off, tried it again,& it started again! I thought it was the FUEL PUMP, but after confirring with a friend thats a mechanic, he said its most likely the RELAY! So I took the fuelpump back & bought a RELAY! I guess if there is a break in the circuit somewhere,it will rear its ugly head again, but I'm keeping my fingures crossed that it was the RELAY!

I haven't seen a lot of those relays fail most of the time its a bad connection bad ground etc.If it was the fuel pump not turning on?Usuallyfuel pumps whnwhen they fail don't usually work off and on.What I have seen and done is if you loose fuel pressure and you have a crank no start. While cranking I would smack the center of the gas tank with the palm of my hand.To get the pump working again sometimes works sometimes doesn't.I use that trick to find a bad pump. Before trying make sure it doesn't start and you have no fuel pressure.Then try it.

Ok! I'll remember that in case it does the same thing again! Thank you!

Your welcome
