1992 TOYOTA COROLLA
Avatar
DU TOIT
  • MEMBER
  • 2 POSTS
What can cause the tempreture guage to go from cold to hot as soon as you switch the car on. We have already replaced the tempreture guage switch. any suggestions please.
Nov 27, 2012 at 4:01 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
A short in the sending unit, its wire or a faulty gauge.
Unplug the sending unit wire and turn ignition switch on, does the gauge needle max out?

Nov 27, 2012 at 4:07 PM
Avatar
DU TOIT
  • MEMBER
  • 2 POSTS
Thanks for the answer. Have already unpluged the unit wire and the guage comes down to zero when the car is turned on. Any other suggestions.
Nov 27, 2012 at 6:08 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Either the sending unit is or gauge is bad. If the original and replacement sensor is showing same symptoms, the gauge is more likely to be the cause.

TEMPERATURE GAUGE & SENDER

Wiring Harness Operational Test

1. Unplug connector at coolant temperature sender. Turn ignition on. Temperature
gauge should indicate COOL. Turn ignition off. Connect a 12-volt, 3.4-watt test light between coolant temperature sender harness connector terminal and ground.

2. Turn ignition on. Test light should glow and temperature gauge should slowly
move to HOT. If gauge functions as described, replace sending unit. If gauge
does not function as described, perform TEMPERATURE GAUGE RESISTANCE TEST below.

Temperature Gauge Resistance Test

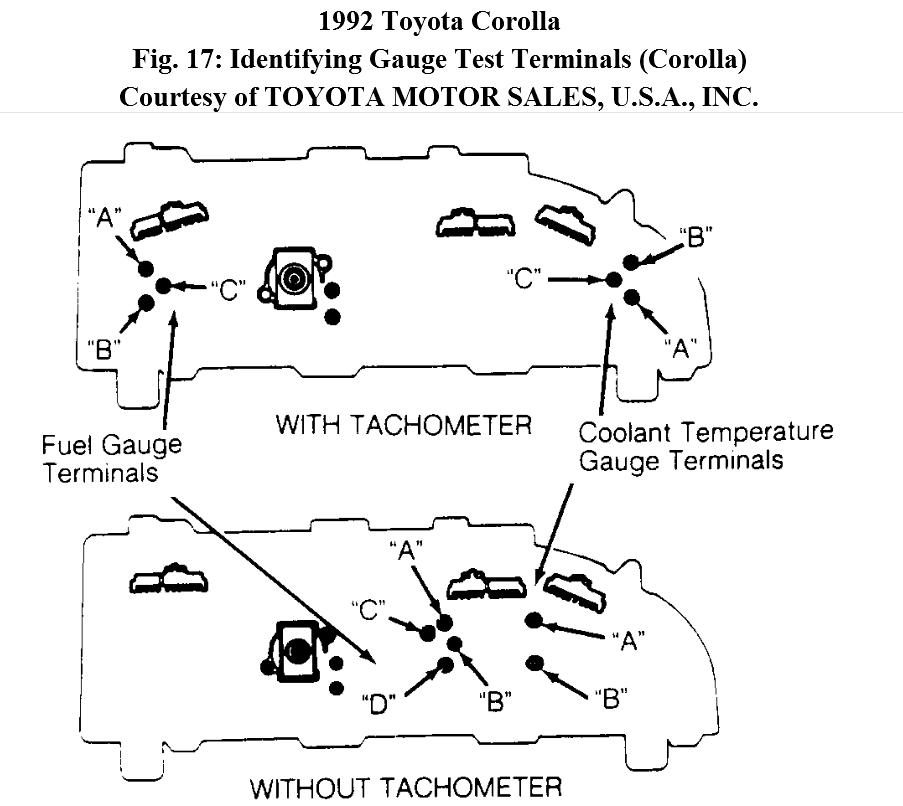

Remove instrument cluster. Using ohmmeter, check gauge resistance across appropriate terminals. See Fig. 17. Ensure ignition is off and harness

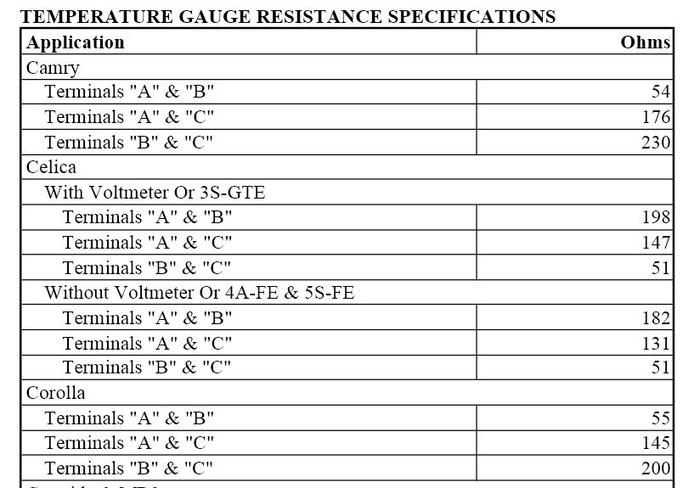

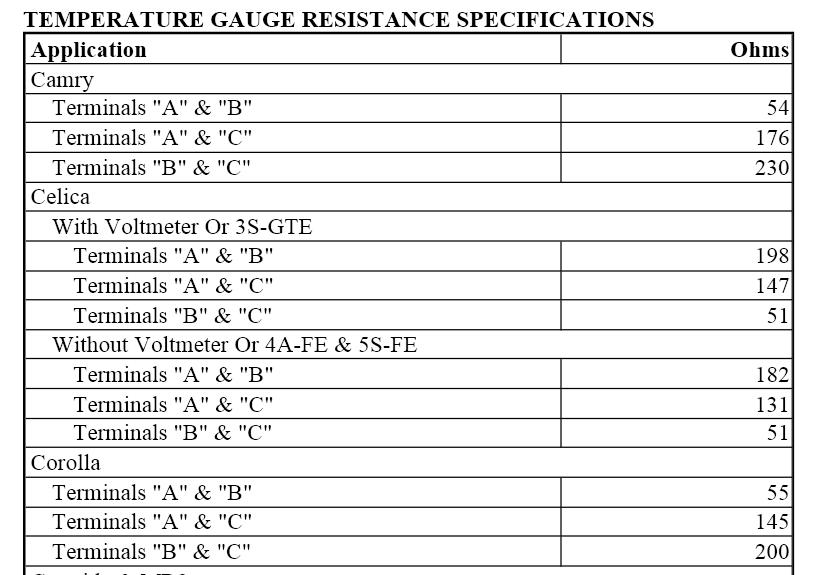

connector is unplugged from instrument cluster. See TEMPERATURE GAUGE RESISTANCE SPECIFICATIONS table. Replace gauge if not within specification.
If gauge is within specification, repair open or short circuit in wiring harness.
Nov 27, 2012 at 6:26 PM
Avatar
JUNSHA
  • MEMBER
  • 1 POST
Good day!

Im having a query regarding on our cars temperature.

Last year (November2015) we hit a kangaroo which damaged the radiator. We sent the car to shop and they fixed it and all done.

Now when im driving the car, i noticed that the temperature gauge is lighting and when im starting the engine, not more than 2 minutes the gauge starts to rise. So after 5minutes the gauge is already in the center on C-----------H

Can you help me on this.

Thanks
Mar 20, 2016 at 8:27 AM
