Instructions on how to replace carrier bearing for nissan hardbody 4wheel
1992
Dec 21, 2012 at 11:48 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

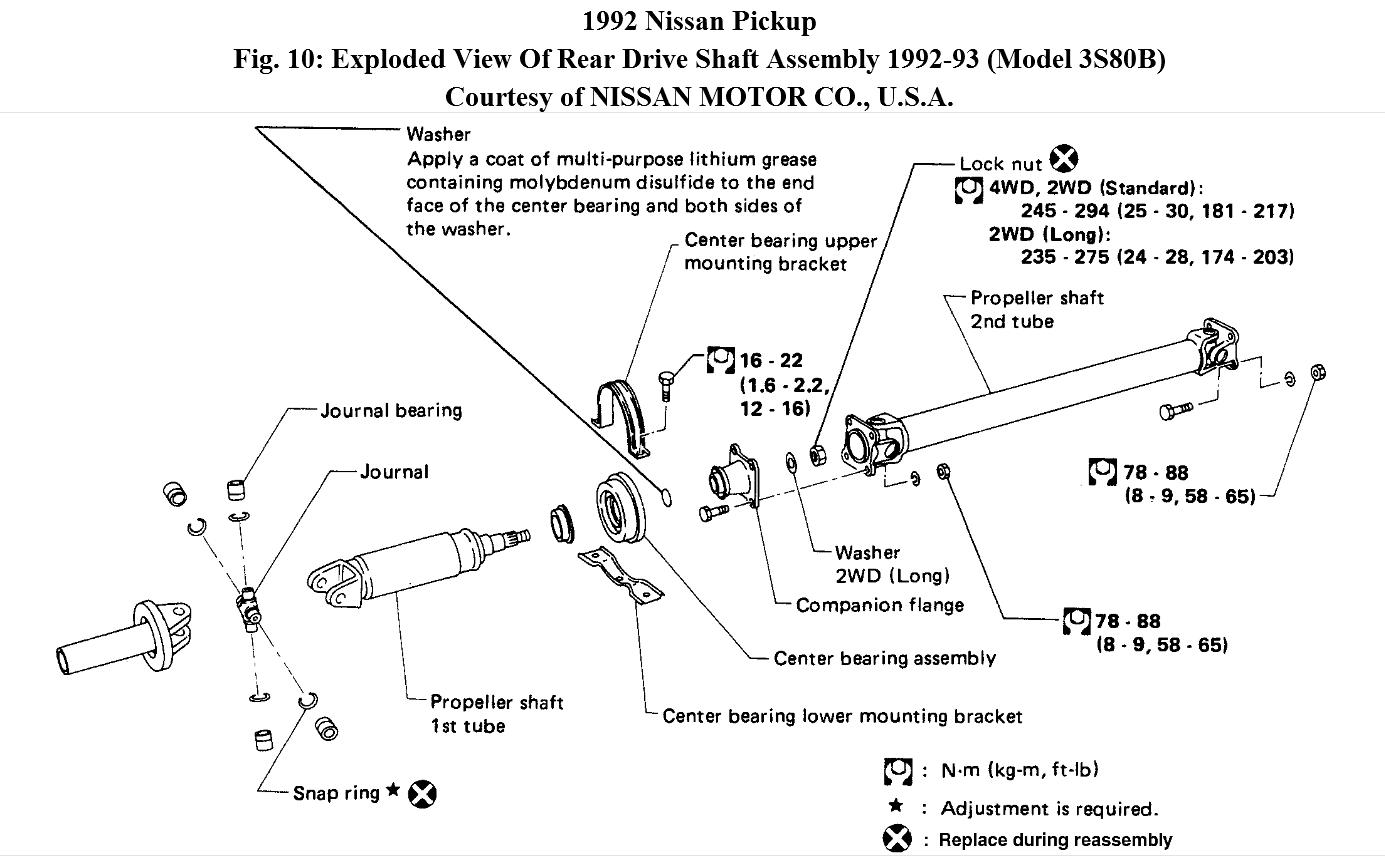

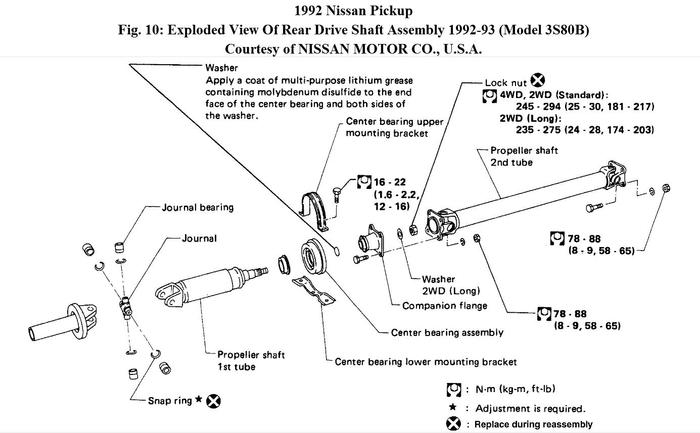

Before disconnecting propeller shafts and disassembly, mark positions so that they are reinstalled in the same position.

Remove shaft assy from vehicle by removing the flange bolts and carrier bearing bolts.
Remove flange center nut.
Tap flange off shaft, Remember to mark the position.
Tap carrier bearing off. If it is stuck, you might need to press it out.
Installation is reversal of removal.
Dec 21, 2012 at 12:49 PM
