Timing marks

1992 MAZDA PROTEGE
1,870,000 MILES
Avatar
YANNICRISANTOS
  • MEMBER
  • 132 POSTS

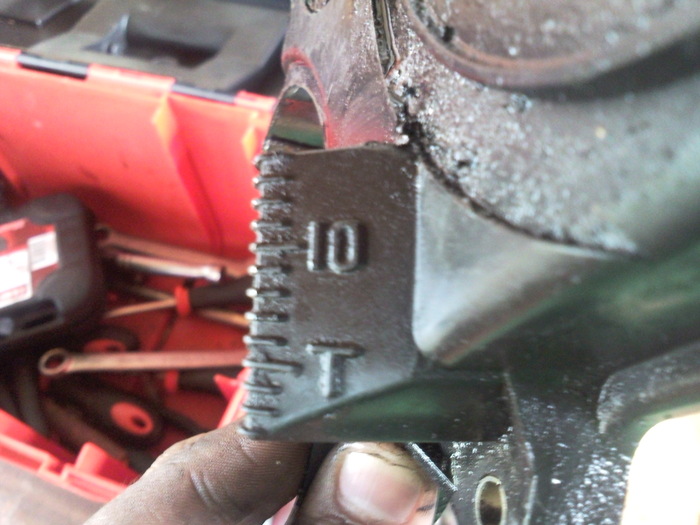

I can't figure out the bottom marks from the poly the poly has 1 mark and the other thing that is on the side has like a T and a 10 and a lot of small marks. does marks are for the lower poly and I want to know what mark is it.
Image (Click to enlarge)
Attached Media
Jul 12, 2012 at 7:27 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
DOHC or SOHC????
Jul 12, 2012 at 7:54 PM
Avatar
YANNICRISANTOS
  • MEMBER
  • 132 POSTS
SOHC
Jul 12, 2012 at 8:18 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
Manual or Auto tranny -ignition timing is 5degs that means you time between 10 and T while TEN and GRN in the Green test connector jumpered
Jul 12, 2012 at 8:28 PM
Avatar
YANNICRISANTOS
  • MEMBER
  • 132 POSTS
Okay I got it. Thanks
Jul 12, 2012 at 8:42 PM
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
You're welcome
Jul 14, 2012 at 3:11 PM
