No pulse fuel injector

1992 ISUZU RODEO
Avatar
MHOMESLEY12
  • MEMBER
  • 1 POST
i have a 92 isuzu rodeo 3.1l v6 4x4, cannot get fuel out of the injectors, it has brand new fuel pump and filter, no pulse at the injectors. i replaced whole distributor because i thought it might the position sensor but it still has no pulse? what should i do next?
Oct 16, 2013 at 1:55 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
It sounds like the ECM is out or not getting power or ground. Here is a guide and some diagrams (below) that will help us see whats going on.

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

and

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

If everything checks out get a used ECM and plug it in.

Please let us know what happens.

Cheers, Ken

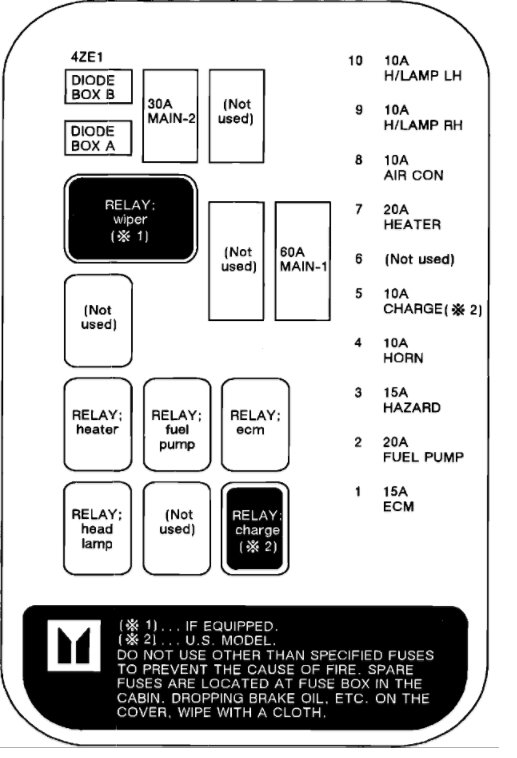

Image (Click to enlarge)
Attached Media
Sep 12, 2017 at 5:04 PM
