1992 GMC Sierra 92 gmc 4.3l code 15

1992 GMC SIERRA
Avatar
J.STIEG
  • MEMBER
  • 361 POSTS
Working on a 92 gmc and it is running rough I have the CTS reporting abnormally low, how to troubleshoot. Getting code 15 diagrams would help. Trying to determine sensor or harness. Also what is the resistance value of the CTS when cold. Thanks




Aug 22, 2013 at 11:48 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

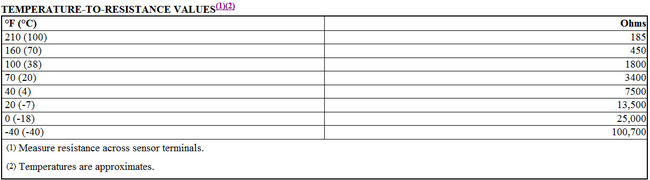

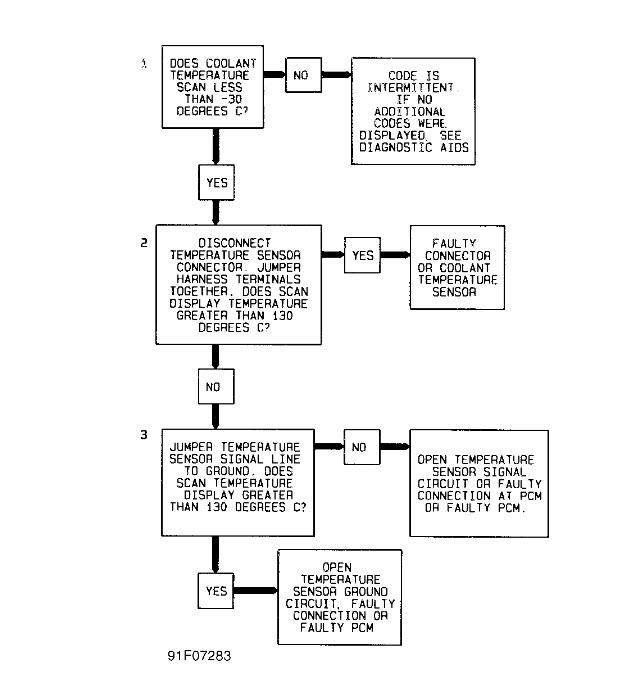

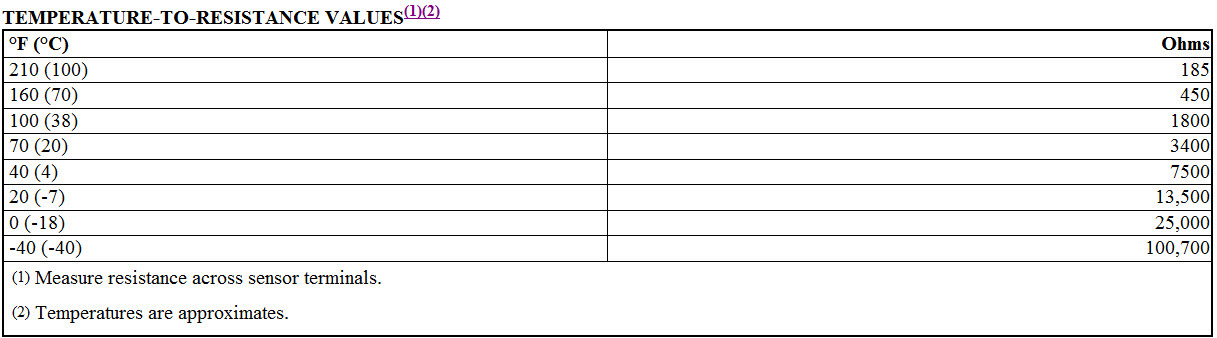

you really need a scanner to troubleshoot but see pics clicking on pic should enlarge a lot of those leaked coolant to wires so that may be problem and need a harness replaced which some came with switches. rough running spray choke cleaner below tbi as that gasket had a high failure rate as well as soft hose going to map sensor, sucks together then map doesn' tread right.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 22, 2013 at 12:08 PM
Avatar
J.STIEG
  • MEMBER
  • 361 POSTS
I put the CTS in and it runs good now. The bad one had more than 200k at any temp.
Aug 27, 2013 at 1:36 PM
