spark plug wiring

1992 CHEVROLET S-10
6 CYL • 2WD • AUTOMATIC
Avatar
GR
  • MEMBER
  • 3 POSTS
need a diagram on the firing for a 1992 S10 V6 4.3
Apr 2, 2011 at 4:31 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

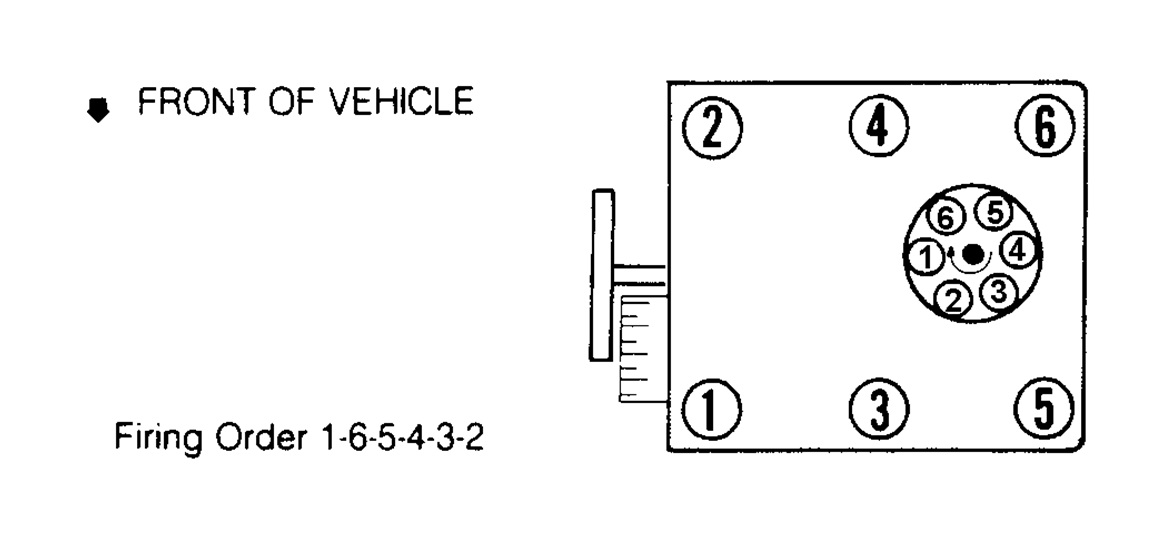

Hope this helps.
Image (Click to enlarge)
Attached Media
Apr 2, 2011 at 4:36 PM
Avatar
GR
  • MEMBER
  • 3 POSTS
what is the timing setting on the s10 its on 6 but runs rough
Apr 2, 2011 at 5:07 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
At idle you set timing on zero.
Apr 2, 2011 at 6:03 PM
Avatar
GR
  • MEMBER
  • 3 POSTS
some one told me that it be set 6 or 12 is that right
Apr 2, 2011 at 6:29 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Our database says zero. Is there a decal under your hood somewhere, that has timing specs?
