Where is the EGR Valve located?

1992 CHEVROLET ASTRO
144,000 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
JALYNN SMITH
  • MEMBER
  • 2 POSTS
Where is the EGR valve located on the van listed above with a CMF1 engine?
Jul 16, 2011 at 12:37 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

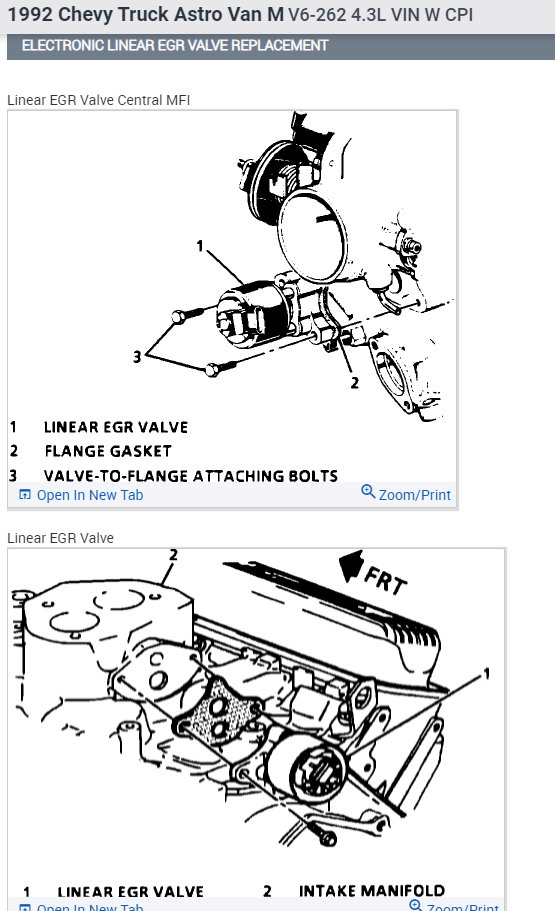

The EGR valve is located on the back of the intake manifold.

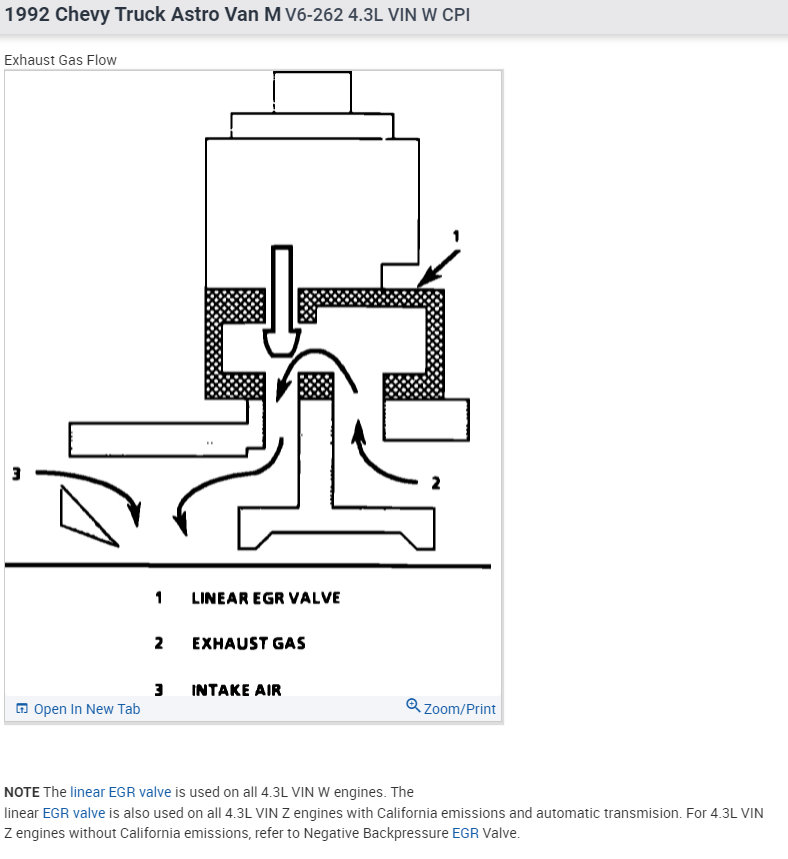

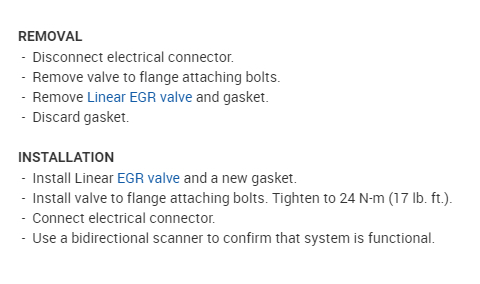

I have attached diagrams for your reference (look below).

Here is a helpful video on how to test the EGR valve:

https://youtu.be/DqUCbbKdWf4

Please let me know if you have any questions.
Thank you.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jan 23, 2022 at 2:42 PM
