vaccum diagrams?

1992 CADILLAC DEVILLE
105 MILES
Avatar
DOMINICKLUVERO
  • MEMBER
  • 2 POSTS
is there anyway i can get a diagram of the vaccum hoses in the 1992 cadillac 4.9L? i believe i have a leak and have found some other hoses that needed replacement i want to make sure i check them all. car is idling rough and has a slight hesitation.thank you very much
Apr 11, 2012 at 12:29 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

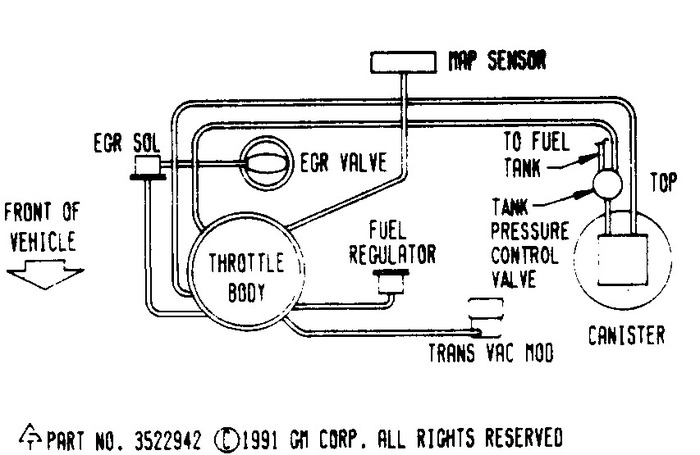

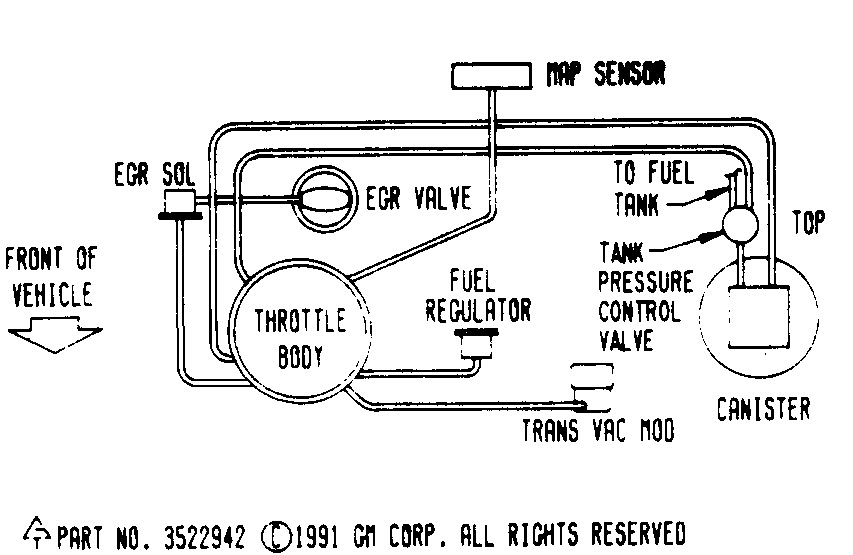

here you go, make sue that the cannister purge valve isn't open at idle, it would have vacuum at both connections. that can be a big cause of your problem.
Image (Click to enlarge)
Attached Media
Apr 11, 2012 at 2:22 PM
