1992 Cadillac Deville dashboard removal

1992 CADILLAC DEVILLE
4.9L • V8 • FWD • AUTOMATIC
Avatar
REARDRIVE
  • MEMBER
  • 93 POSTS
I am trying to replace the radio speaker in the upper dash pad. I remove the four screws behind a/c vents and three screws from the upper pad.it feel like another screw is holding the right side of the upper pad is there another screw that I am missing
Aug 24, 2015 at 12:23 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

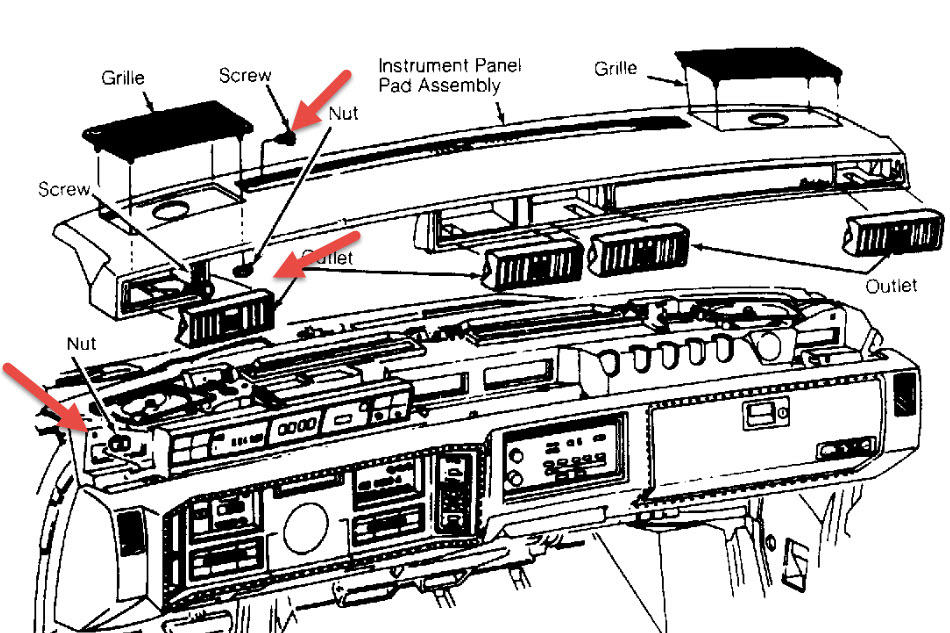

see pic grill may pop off however. be same on both sides.
Image (Click to enlarge)
Attached Media
Aug 25, 2015 at 6:24 AM
Avatar
REARDRIVE
  • MEMBER
  • 93 POSTS
I tried popping the speaker grill out but that did not work, I read in a mechanic book to take globe box out and take the two nut and bolt to the upper pad but I could not fine the two bolts
Aug 25, 2015 at 3:09 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
they shold be in same area on other side of dash in pici sent
Aug 25, 2015 at 3:16 PM
Avatar
REARDRIVE
  • MEMBER
  • 93 POSTS
The hookup must not be the same because the only screw I had to remove is the screw behind a/c left vent it will raise up. I did the same thing on the right side but it still bolted to some thing. the speaker grille come off with the upper pad thank you
Aug 26, 2015 at 4:30 AM
Avatar
REARDRIVE
  • MEMBER
  • 93 POSTS
Thank you for your help ; if anyone else has this problem they need to take the glove box out to get to the two small screws above the glove box hole
Aug 27, 2015 at 4:20 AM
