I need to replace the front right disc pads

1991 MAZDA 626
300 MILES
Avatar
ROYRACE
  • MEMBER
  • 2 POSTS
on my 626 '91 GD but am not sure which bolts to undo. Is there a diagram I can view? It looks as though if I remove the inside leading bolt (towards the front of car) the housing will swing up exposing the pads, is this correct?
Apr 19, 2012 at 1:06 AM
Advertisement
Avatar
IMPALASS
  • CERTIFIED EXPERT
  • 3,112 POSTS

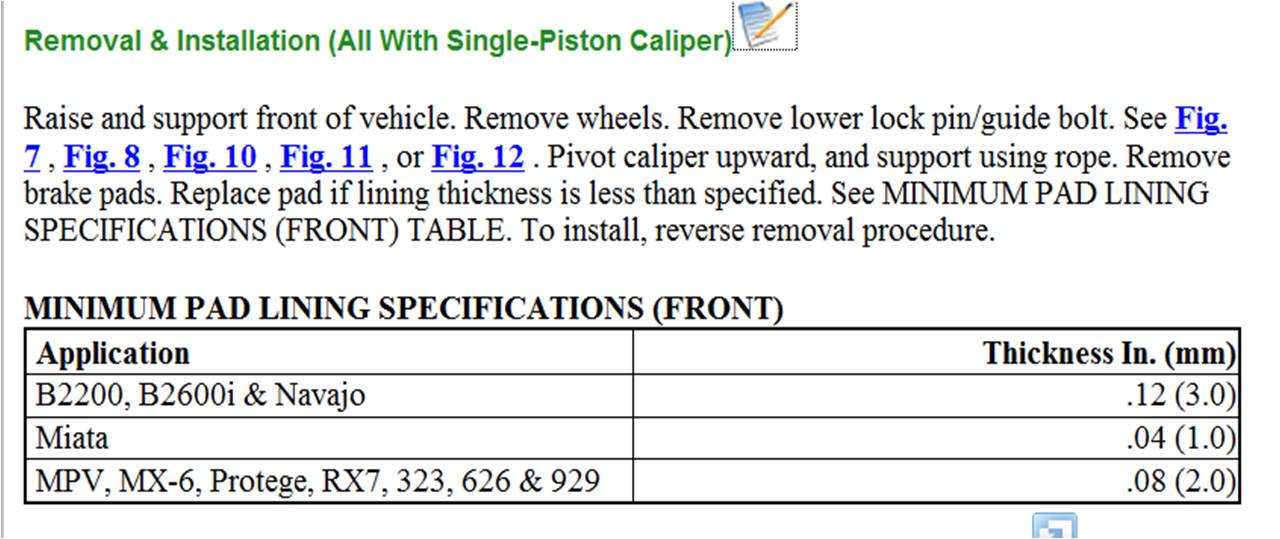

The information you requested
Images (Click to enlarge)
Attached Media
Attached Media
Apr 19, 2012 at 1:14 AM
Avatar
IMPALASS
  • CERTIFIED EXPERT
  • 3,112 POSTS

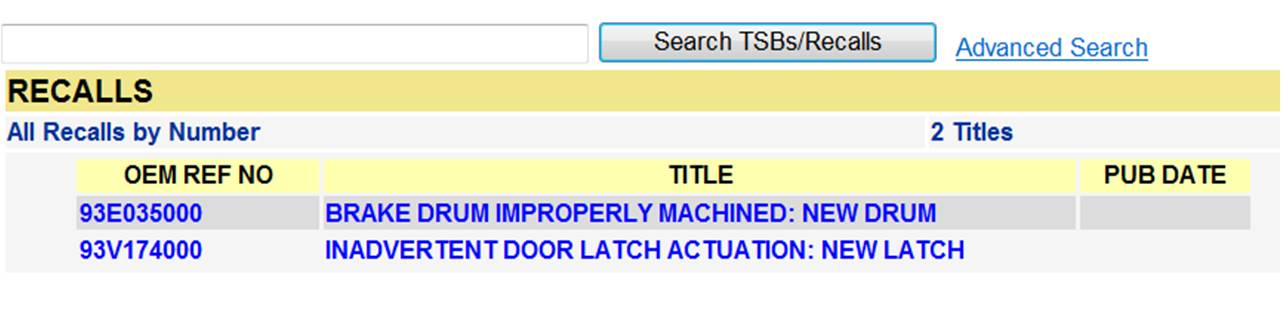

Also check the dealer with your VIN number to ensure your vehicle is up to date on the recalls. These are normally repaired for free.
Image (Click to enlarge)
Attached Media
Apr 19, 2012 at 1:16 AM
Advertisement
Avatar
ROYRACE
  • MEMBER
  • 2 POSTS
Thanks for the exploded view, just what I was looking for. Was reluctant to go ahead in case I erred. Many thanks.
Apr 19, 2012 at 1:45 AM
