1991 Chrysler New Yorker charging system

1991 CHRYSLER NEW YORKER
Avatar
UAPAKECHI
  • MEMBER
  • 2 POSTS
I'm not a novice at auto repair, but this one has me stumped. The owner has replaced the alternator, the computer (controls alternator) and the battery. The car does not show charge voltage on the electronic dash. Intermittant loss of charging system. I have checked all fuses, engine to body grounds, all quick disconnect power cables (2 near battery) and the damned thing starts charging in the middle of testing. Is this a spoiled child wanting attention or is it cursed?
Aug 7, 2013 at 8:05 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

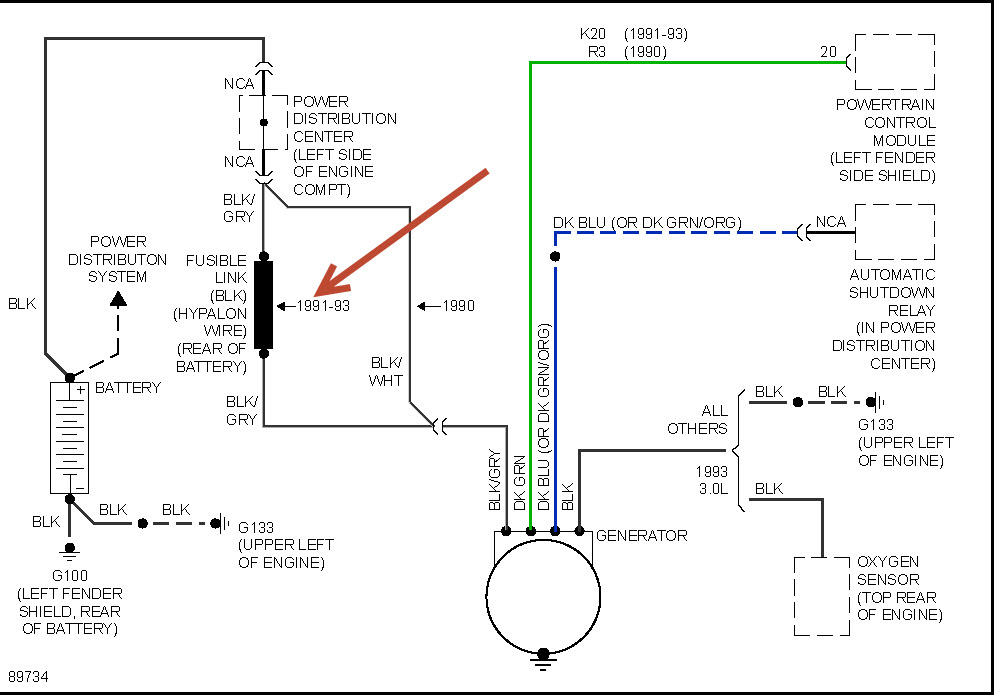

see if the fusible link has all the wires connected or just a few strands..... then check auto shutdown relay maybe corroded. see pic.
Aug 8, 2013 at 6:32 AM
Avatar
UAPAKECHI
  • MEMBER
  • 2 POSTS
Thanks! I'm on it tomorrow.
Aug 8, 2013 at 7:05 AM
