setting hotter or colder it starts flashing arrows?

1991 CHEVROLET SILVERADO
227,000 MILES • 5.7L • V8 • 4WD • AUTOMATIC
Avatar
JEFFREY L JONES
  • MEMBER
  • 1 POST
The fan blows / the doors change from defrost to dash vents to floor but when I try to change the temp setting hotter or colder it starts flashing arrows all the way across the temp setting and stays until I shut the power off when I turn it back on everything looks normal
Jan 25, 2015 at 8:02 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
if this is automatic temp control, I think the HVAC control has gone out.
Jan 25, 2015 at 8:29 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

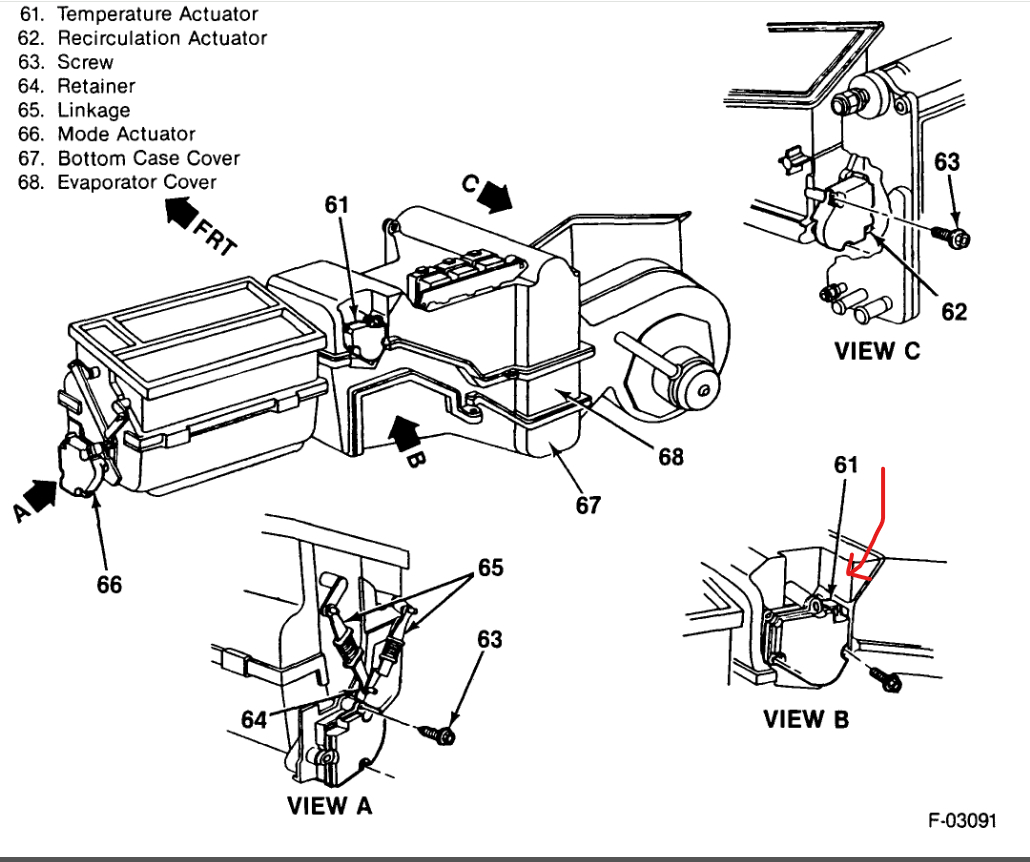

Yep, this means the temperature blend door actuator has gone out, here is the location so you can change it out to help fix the problem. Check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Attached Media
Sep 12, 2024 at 6:29 PM
