No pulse to injectors

Hello,

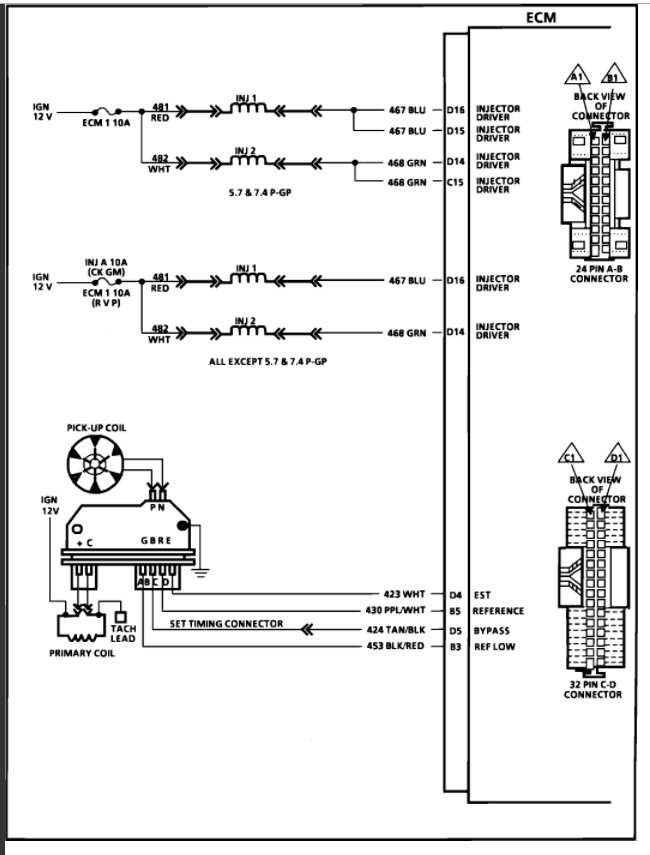

This sounds like you have an ignition module or ECM that has gone partially out. Here is the engine and ECM wiring diagrams so you can see how the system works. Use this guide to check the connections/signals and then replace the ECM if everything checks out:

https://www.2carpros.com/articles/how-to-check-wiring

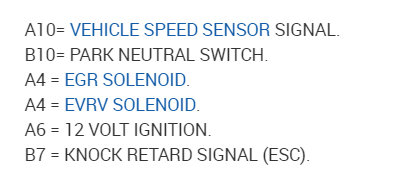

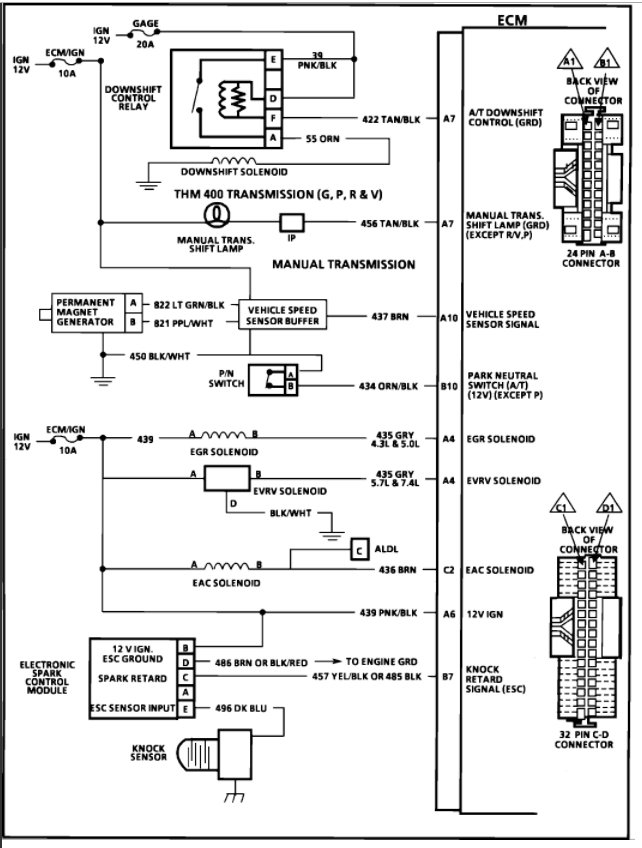

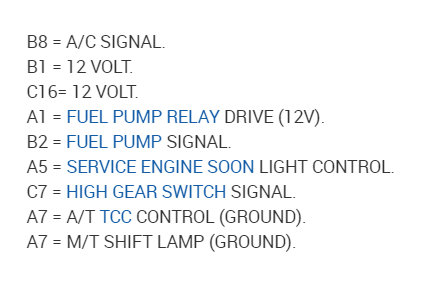

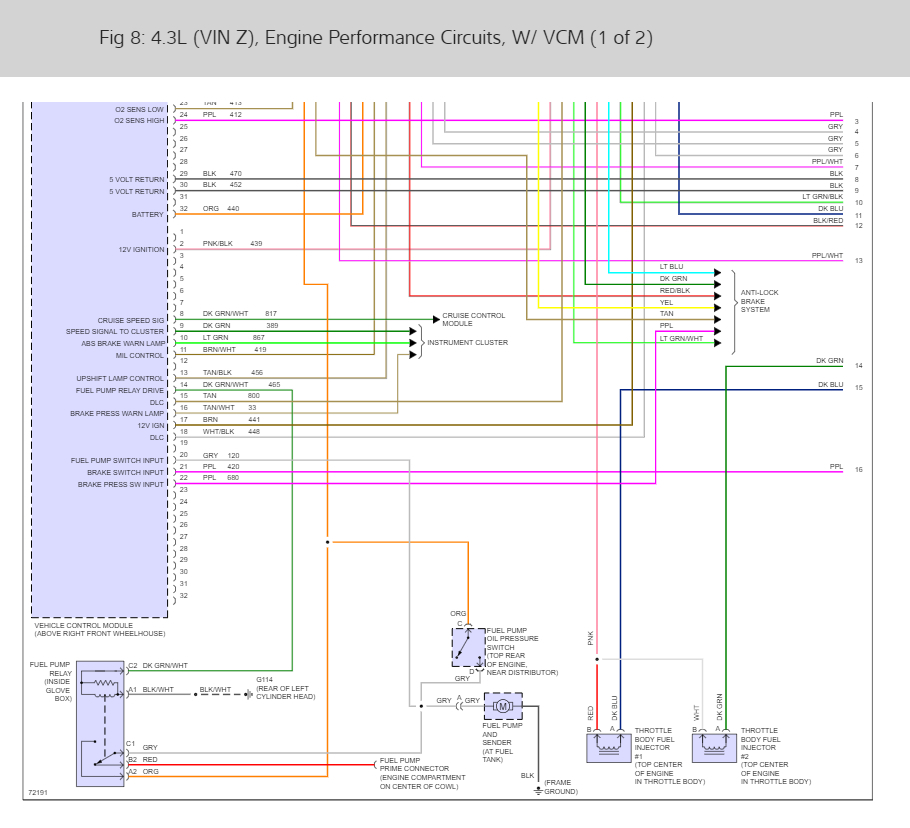

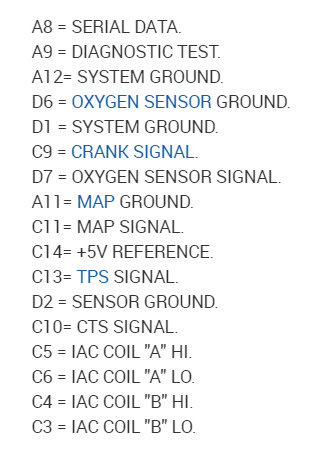

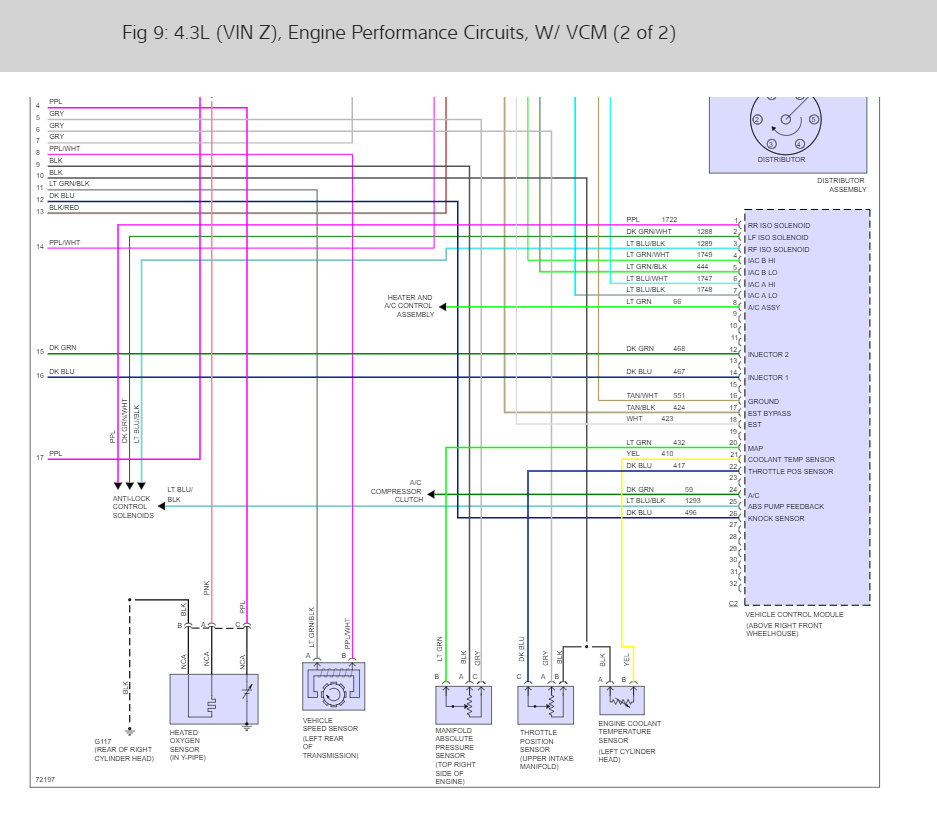

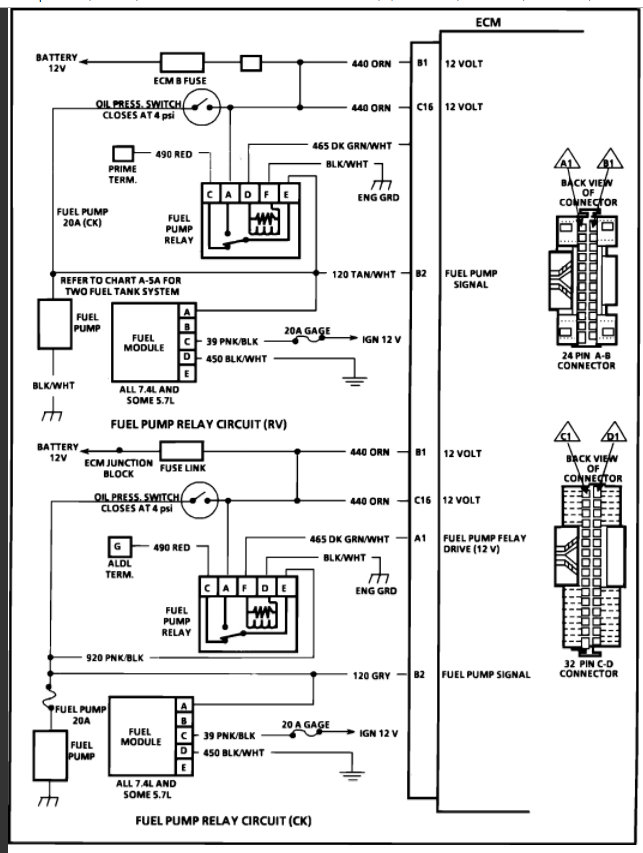

Check out the diagrams (below). Please let us know what you find.

Checked the fuel relays all good. So I replaced the ignition module and pick up coil and the truck fired right up. good call! I love this site. thanks again.

Good to hear, please use 2CarPros anytime we are here to help.

Cheers

Injectors won't pulse until running.

Hey guys! I'm kinda I. The same pickle and is my only driver right now. 95 S10 4wd 4.3 vortec tbi z vin 5 speed. Truck ran great but had a bad head gasket. Was about to redo the top end so pressure washed the engine bay good and drove it into the shop and started tear down but only small things disconnected then put back together to make a quick trip but wouldn't start without starting fluid. Figured I didn't connect something to gave in and rebuilt the top end thinking I would connect it back up. Still the same issue. Runs fine once I spray fuel in the TB or even jump power to the injector to spray a quick squirt and will run all day but once shut off, nothing. I'm lost.

Hello,

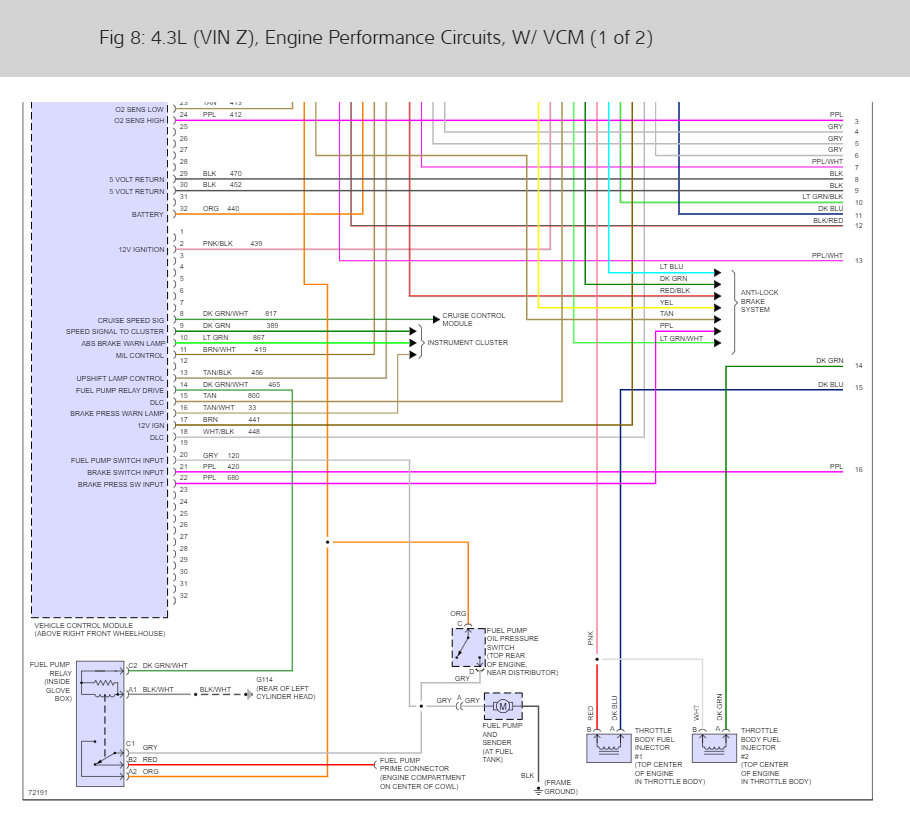

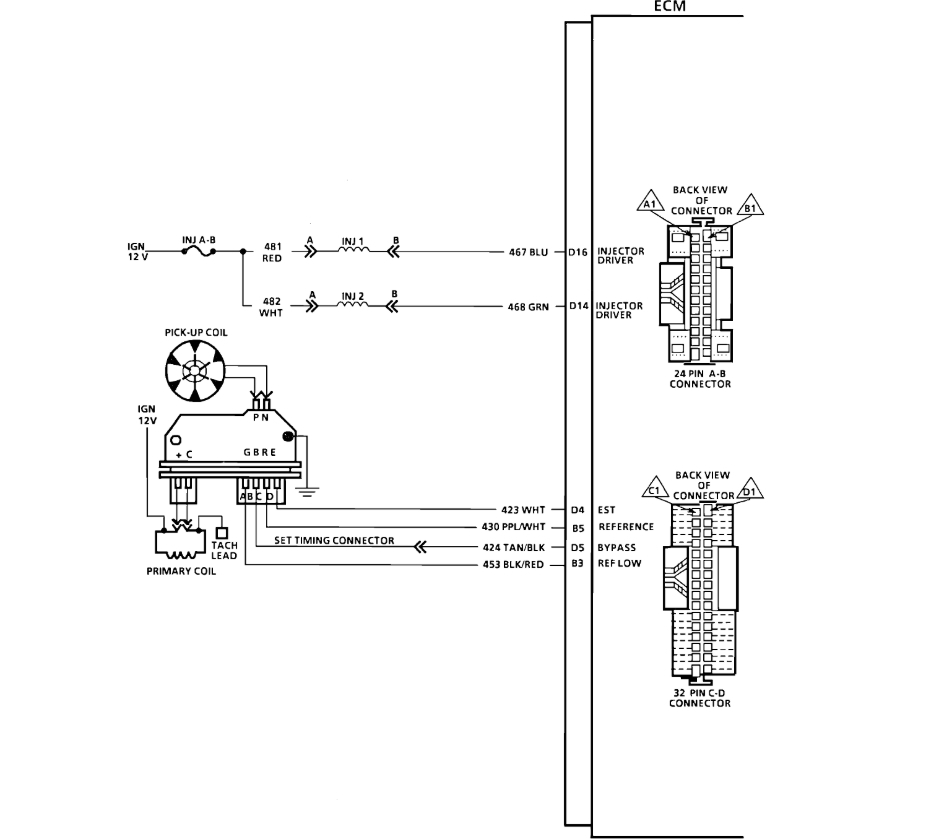

It sounds like you may have water inside the distributor which when hot makes steam and causes the engine not to start, here are the engine wiring diagrams so you can see how the system works. Check the fuses as well in the diagrams. Check out the diagrams (below). Please let us know what you find. We are interested to see what it is.

I am working on a 1990 Chevy C 1500 pickup with a 5.7 engine. With a noid tester on the TBI lead I get no pulse. I have tried disconnecting all sensors and have even replaced ecm. I have voltage on one side of injectors but the ecm will not provide ground, I have tested the ecm for power and ground as best I can and all seems good. Engine will start if you pour gas in throttle body but will only run until gas in intake is gone. New ecm did not come with prom chips not sure if this may be my problem. Also not sure about leads from distrbutor is this where the ecm sees that the engine is turning, This model does not have a crank sensor and I can not find a parts listing for a cam sensor. Any help would be greatly appreciated.

Rasmataz,
Thanks for the reply. This was where I was going next but I was not sure if the ECM got a signal from the distributor. Pulled cap and found several problems in distributor. Replaced distributor and problem is solved. I can see now that the older engines got their reference from the ignition module. Is this still the way the ECM gets reference or is that the job of the crank sensor now?

That depends on the car maker. Thanks for letting us know your issue is resolved.

Hi, one of injectors have spray more fuel at second or third run engine. i changed injectors and ECM no result. when hot engine more fuel spray the right one.

Hello,

It sounds like you have high resistance in one of the injector wires. Here is a guide so you can do some simple tests and check:

https://www.2carpros.com/articles/how-to-check-wiring

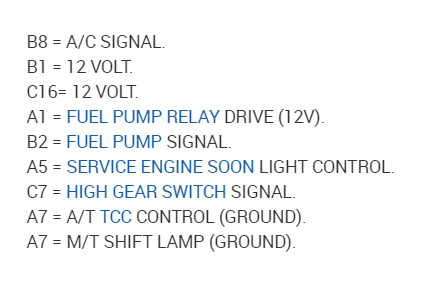

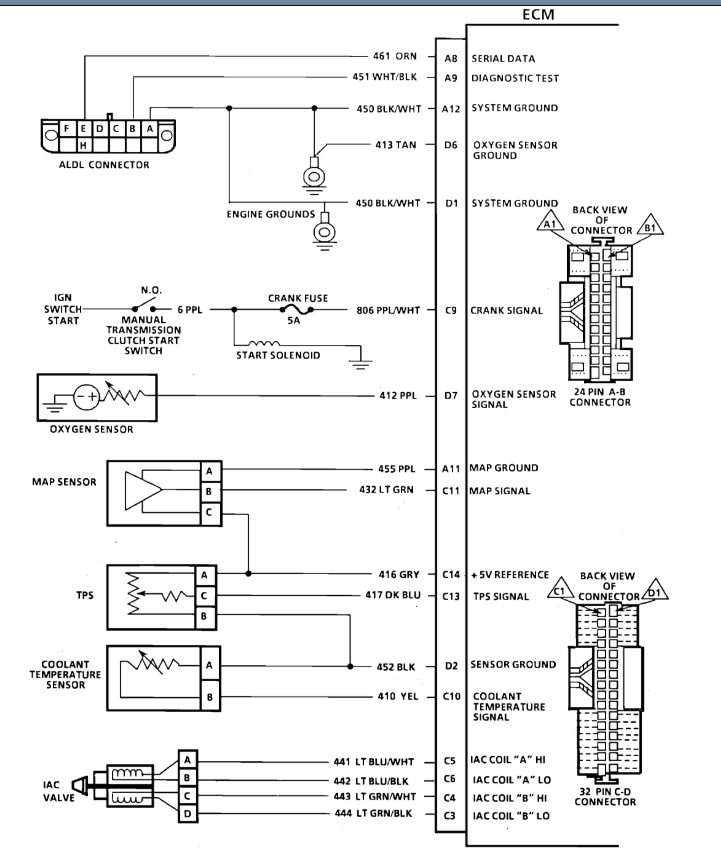

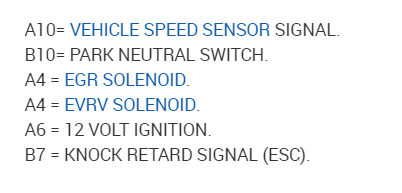

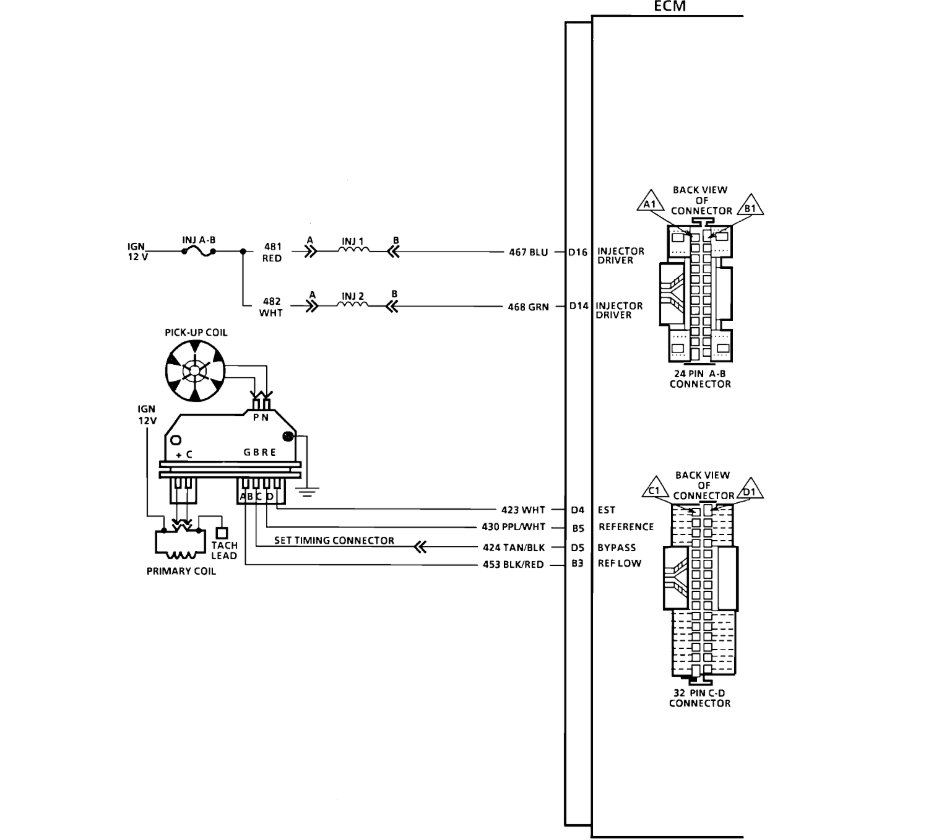

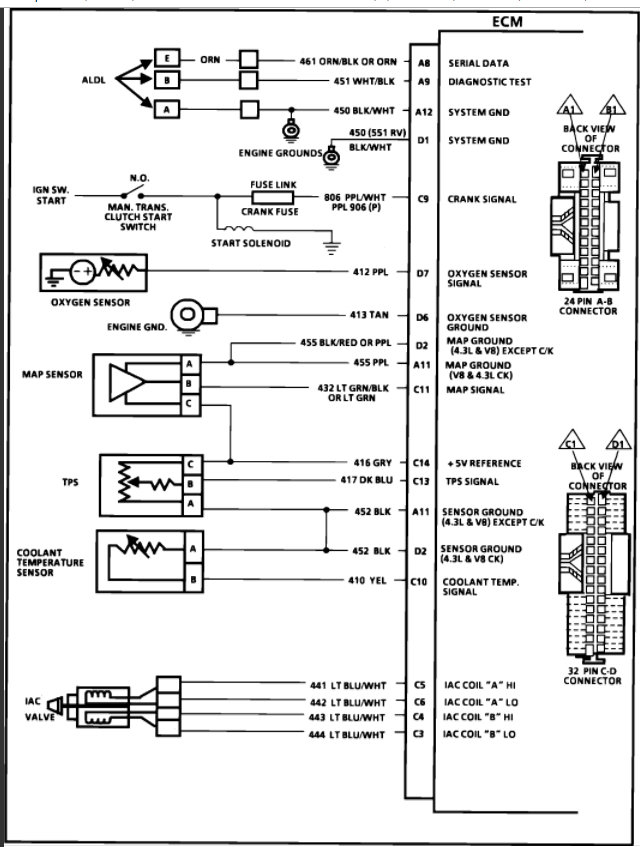

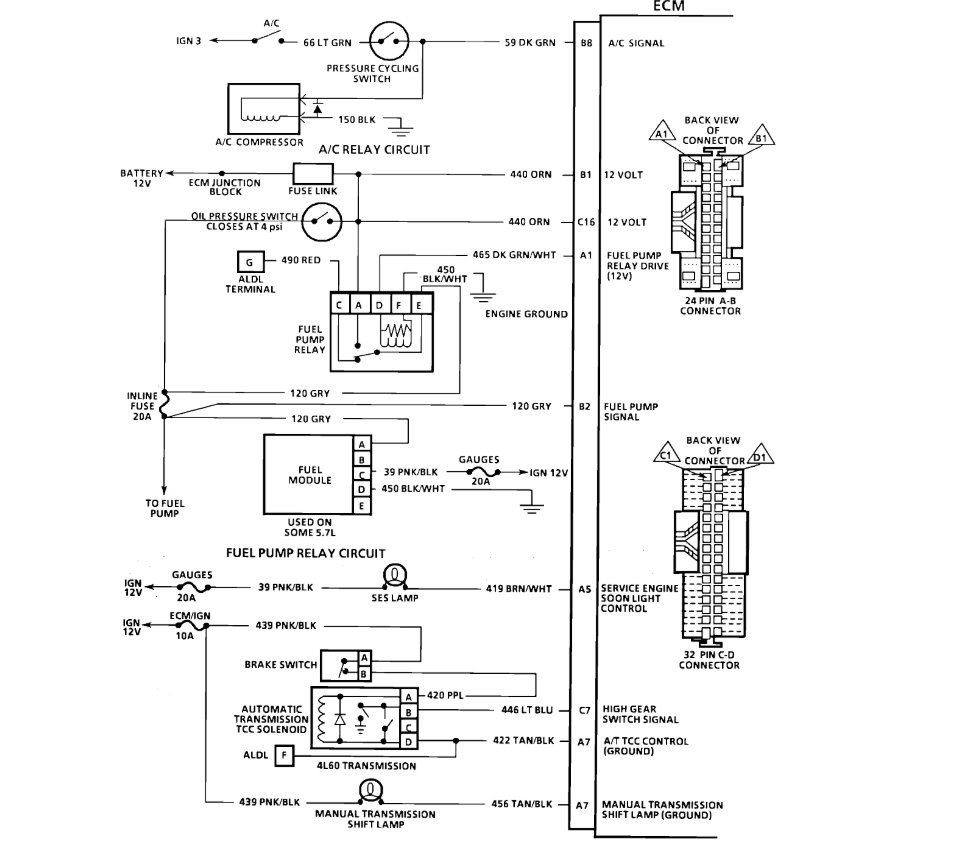

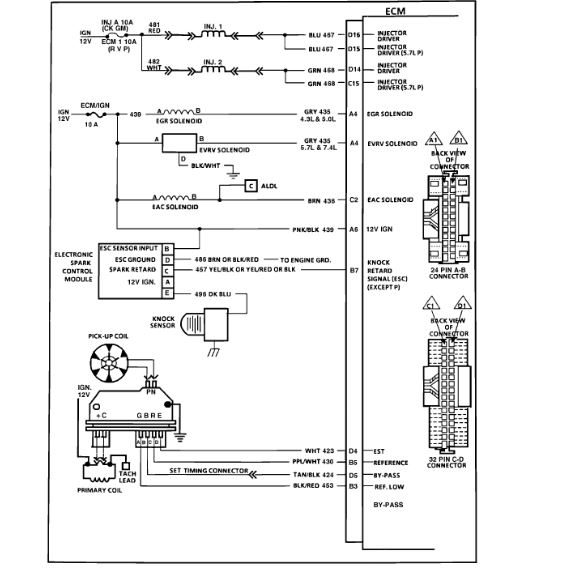

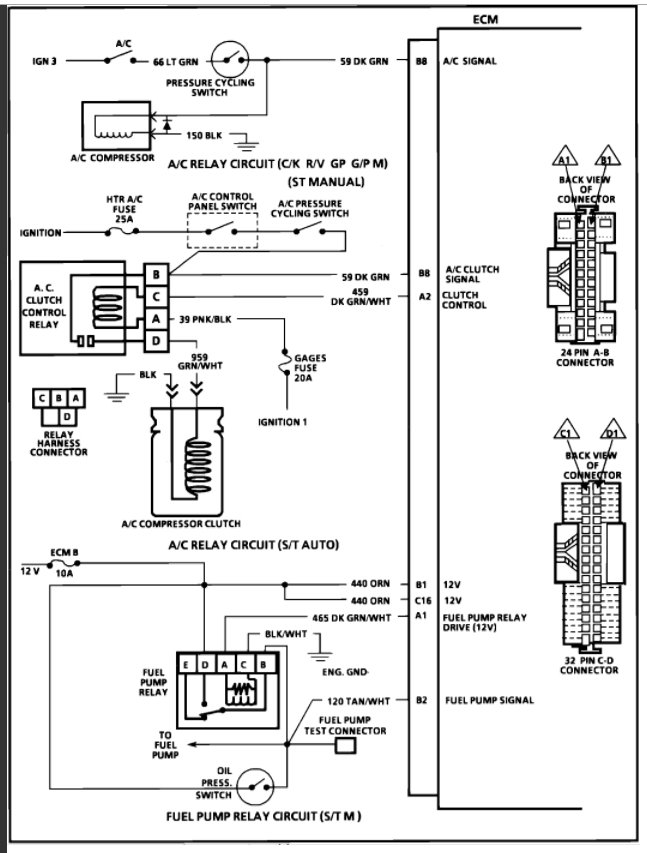

Here are the wiring diagrams so you can get started (below):

Please run this test and get back to us we are interested to see what it is.

Cheers, Ken

I noticed that the fuel injector on the driver has a drip in the center while running. These are new injectors I bought from Amazon. I swapped the injectors and it still drips on the driver side. That tells me that it is not the injectors? Could it be electrical, or a something with the throttle body?

Good morning.

Were the old ones leaking prior to the replacement?

I would check the throttle body where the injectors mount and be sure there are no remnants of the old o-ring from the old injector.

Are you using lubricant on the o-ring prior to installation?

Roy

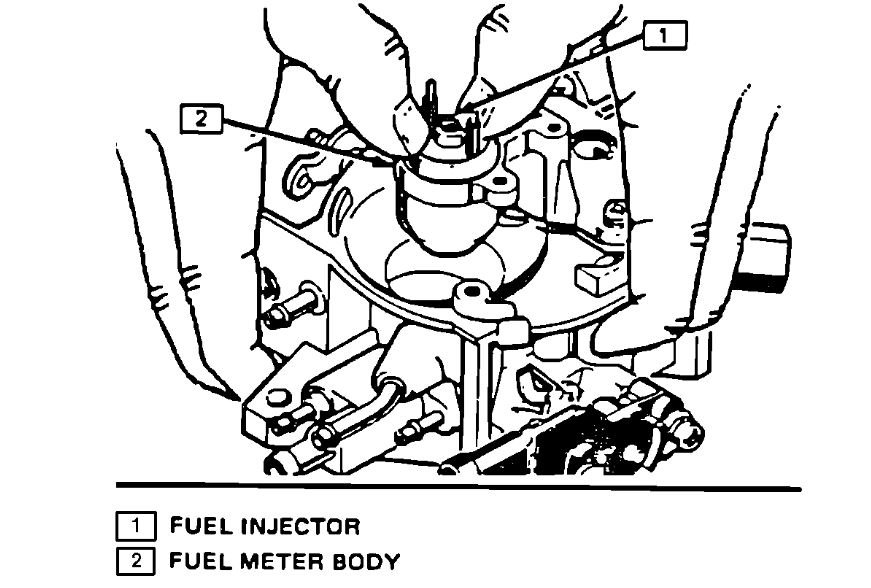

INSTALLATION:

1. Lubricate new lower (small) o-rings with automatic transmission fluid and push on nozzle end of injector until it presses against injector fuel filter.
2. Install steel injector back up washer in counterbore of fuel meter body.
3. Lubricate new upper (large) o-rings with automatic transmission fluid and install directly over the back up washer. Be sure the o-ring is seated properly and is flush with top of fuel meter body surface.
Note: Backup washers and o-rings must be installed before injectors, or improper seating of large o-rings could cause fuel to leak.
4. Install injector, aligning raised lug on each injector base with notch in fuel meter body cavity. Push down on injector until it is fully seated in the fuel meter body. (Electrical terminals of the injector should be parallel with throttle shaft).
5. Install fuel meter cover gasket.
6. Install fuel meter cover.
7. Reconnect electrical connectors to fuel injectors.
8. With engine "off" and ignition "on", check for fuel leaks.

Yes, it was leaking before replacing. I actually did a rebuild of throttle body. Cleaned inside and out and it still leaked. I did not put oil on o-rings. So maybe I will redo that.

Give that a try before replacing the throttle body unit.

Roy

Could it be electrical?

Not causing an external fuel leak.

Disconnect the electrical connectors and turn the key on and see if it leaks. I am assuming it is where it mounts but if it is dripping from where the injector fires, then yes.

roy

just changed the motor it starts when u pour gas in it i dont get a spray traced the wires to ecm no power is there a fuse or you think it ecm or can i bypass to get those injectors to spay got any ideas to help

If you traced the wiring to the ECM and there is power there and not at the injector, there has to be a break in the wiring. Have you checked for continunity?

Truck wouldn't crank changed the fuel pump still no go replaced the e cm now on cold start it sprays for a couple seconds and fires then nothing rebuilt the throttle body in the past six months ran perfect then its down any help would be greatly appreciated

All "crank, no start" conditions are approached in the same way. Every engine requires certain functions to be able to run. Some of these functions rely on specific components to work and some components are part of more than one function so it is important to see the whole picture to be able to conclude anything about what may have failed. Also, these functions can ONLY be tested during the failure. Any other time and they will simply test good because the problem isn't present at the moment.
If you approach this in any other way, you are merely guessing and that only serves to replace unnecessary parts and wastes money.



Every engine requires spark, fuel and compression to run. That's what we have to look for.

These are the basics that need to be tested and will give us the info required to isolate a cause.

1) Test for spark at the plug end of the wire using a spark tester. If none found, check for power supply on the + terminal of the coil with the key on.


2) Test for injector pulse using a small bulb called a noid light. If none found, check for power supply at one side of the injector with the key on.


3) Use a fuel pressure gauge to test for correct fuel pressure, also noticing if the pressure holds when key is shut off.



Once you have determined which of these functions has dropped out,
you will know which system is having the problem.

I have changed fuel pump, filter, throttle body positioning sensor, map sensor idle control sensor, distributor, cap, rotary button, spark plug, wires, chased wires down to see if I might have a bad ground. But yet one of my injectors will not spray. I can swap wires from one injector to the other injector and then it works. Can anybody help me out?

Good morning.

If you move the connector to the injector and it works, you have a harness issue with controlling that injector. Inspect the connector closely for any damage.

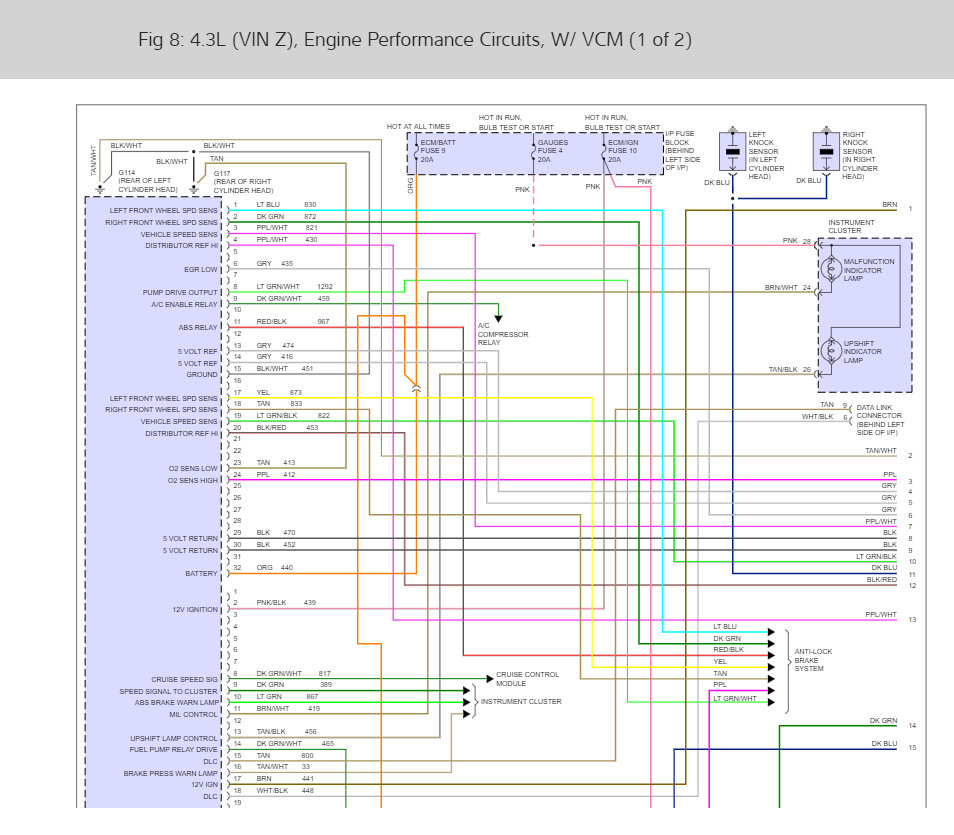

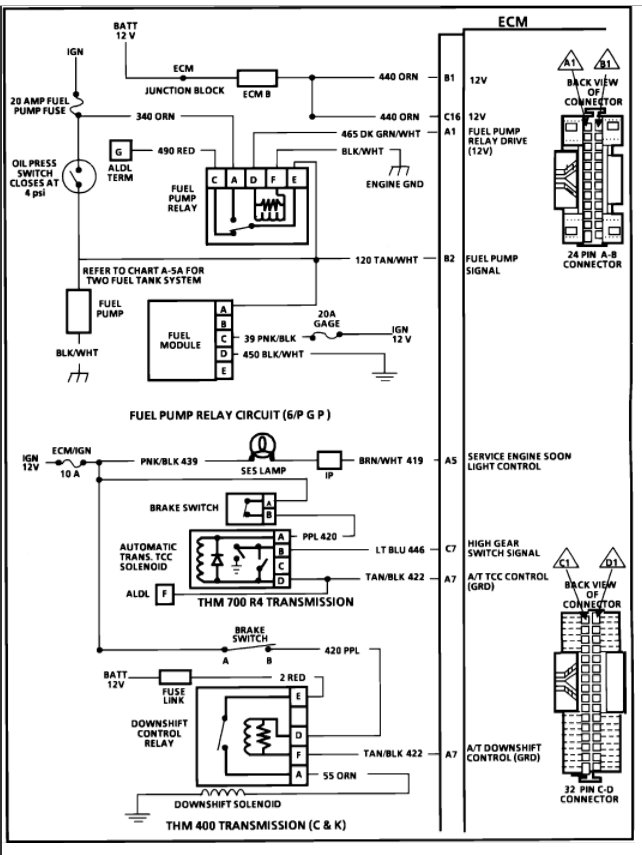

Check for power to the injector connector. You should have 12 volts with the key on. If you do not. Check all your fuses. there is a separate fuse for each injector feed in the fuse block. It should be a 5 amp fuse.

Roy

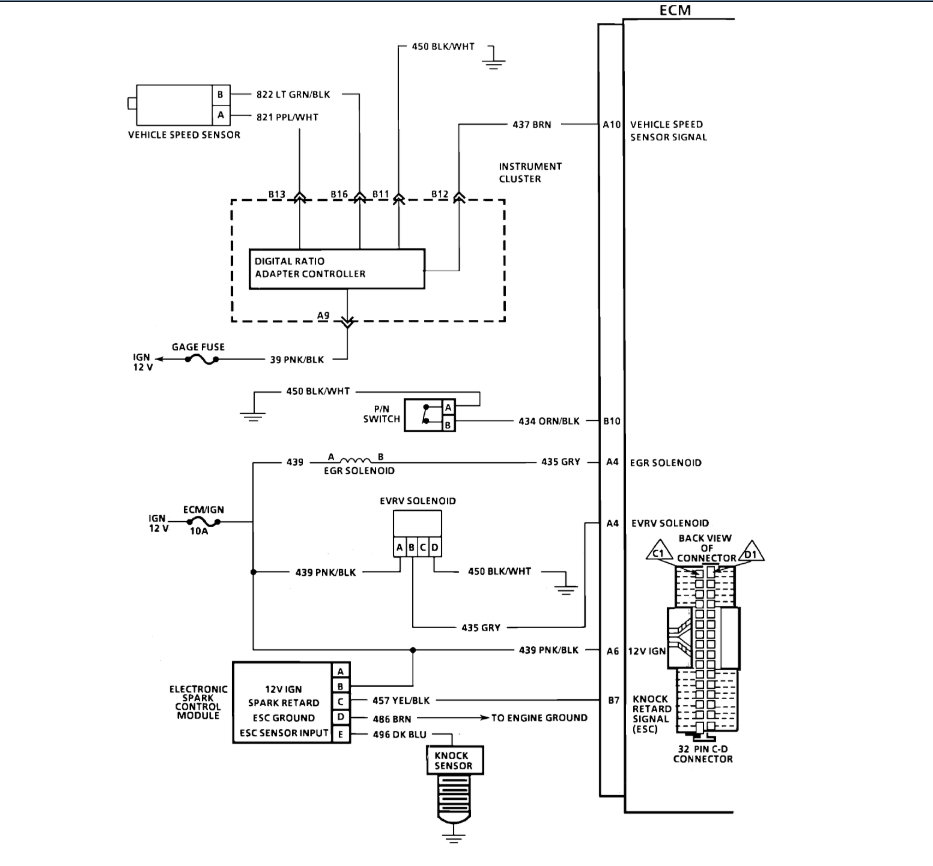

Just asking, do you think it could be the spark control modulator? I looked at the wiring schematics that you sent it only has one 10 amp fuse in the fuse box for both A&B injectors. Other than that everything is telling me that it might be my catalytic converter, but I kind of doubt that since I am not getting spark to the injector.

No, that controls spark, not fuel.

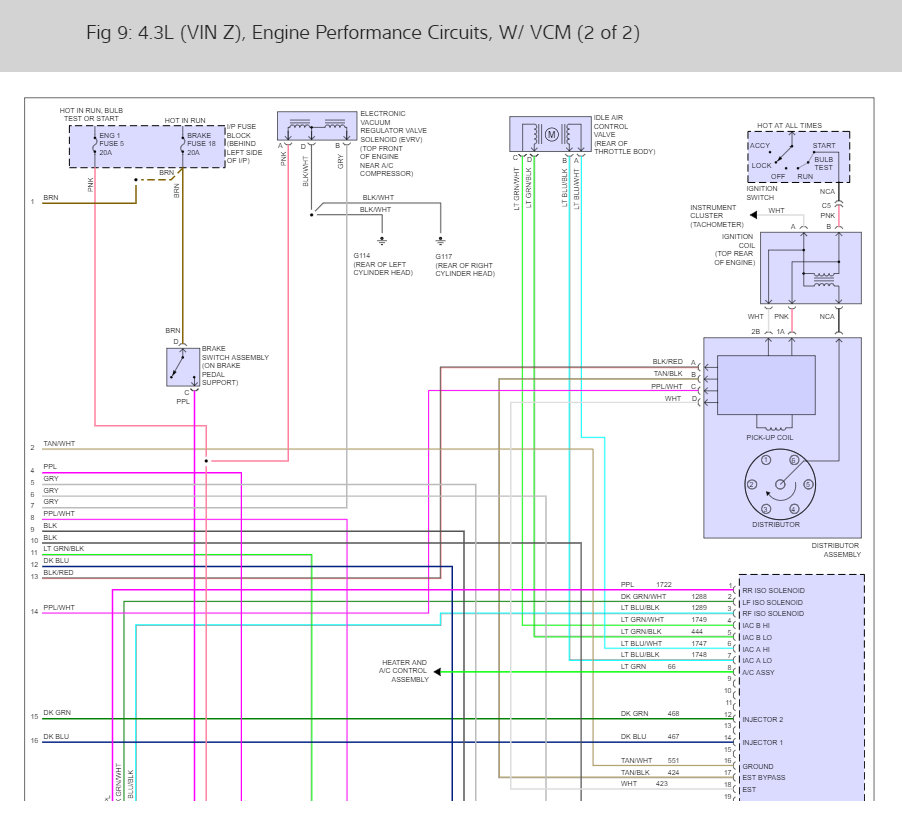

Yes, the power for the injectors are tied together from one fuse. If you have power to one injector then there is a wiring issue to the other injector. Follow the harness back and look for any damage.

Roy

Thank you.

Hi, i have a 1988 chevrolet silverado c1500, swb, 5.7L v8 and the other day in a parking lot i tried starting it and it would never fire. called my dad and he towed me home.(short drive) and we found out neither fuel injectors are spraying. this is the first time we've had issues with this, and it usually starts up like a normal old truck. any help? i can answer other questions if needed to find a solution

put a funnel I the gas tank and have someone turn the key to on. the fuel pump in there will hum if its running. if not then take a hammer and rap firmly on the bottom of the gas tank and try it again. if still nothing, then is there any engine light on?

You are welcome.

Always glad to help.

Roy

Come to find out I had a wire that was corroded so bad it fell apart about six inches behind the computer underneath the glove box. Thanks for helping me out would have never been able to figure that out.

Good find.

Always glad to help.

Roy

Electrical problem
1988 Chevy Silverado V8 Four Wheel Drive Automatic

fuel injector won't spray

Check if there's power on the red wire on the injector's harness connector-if so could be the computer ground drivers or the cam or crankshaft input signals to the computer is missing not snchronizing the injector/s. Also check inj A and B fuses.

Hi. So we have had a 1988 Chevrolet G20 v8 van in our yard for over a week now that has us stumped. The customer drove it to a friends house. They went to a funeral. Came back tried to start it and it wouldn't start. At that point it was firing but not starting. He changed the distributor cap and rotor the ICM and he botched a rebuild of the throttle body. We have rebuilt the throttle body again changed the inner pickup coil in the distributor and the ignition coil. Also put the wires all one spot to the right because they were all one spot retarded. Now the problem we have is its not getting fuel to the injectors unless you connect a ground wire from the wires to the body of the van. But then it pulses as it should but puts out way too much gas from the injectors and floods the motor. Please help

Hi,

If you get an injector pulse by adding a ground, then the body ground is bad. That wouldn't cause too much fuel to reach the injectors. Have you checked fuel pressure? You could have a faulty fuel pressure regulator causing the pressure to rise too much. First, here is a link that explains how to test fuel pressure:

https://www.2carpros.com/articles/how-to-check-fuel-system-pressure-and-regulator

Here are the manufacturer's specs or pressure:

FUEL PRESSURE
Ignition ON Engine OFF .................... 62-90 kPa (9-13 psi)

Let me know what you find or if you have other questions.

Take care,
Joe
