I changed the 80A AMP fuse and now it will turn over but won't start.

1990 TOYOTA CAMRY
200,000 MILES • 2.0L • 4 CYL • 2WD • AUTOMATIC
Avatar
SCULBY
  • MEMBER
  • 1 POST
I'm working on my mom's car (listed above). In the beginning there was no power anywhere. No dash lights, no nothing! I changed the battery as still nothing. I changed the 80A AMP fuse and now it will turn over but won't start. Still no headlights or dash lights. Thinking it's another fuse.. possibly the ignition fuse but, honestly don't know. Could someone help me please?
Jan 10, 2021 at 3:14 PM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
I think you are correct and the only way we are going to find out if there is a fuse is to run through and check them. Here is a guide that will help with checking fuses:

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Also, below is the fuses that I would think we need to make sure are okay. Let's run through these and see what we turn up. This sounds like the fuel pump has gone out, when you turn the key to the on position without cranking the engine over can you hear the fuel pump run in the tank for 5 seconds?

https://www.2carpros.com/articles/car-cranks-but-wont-start

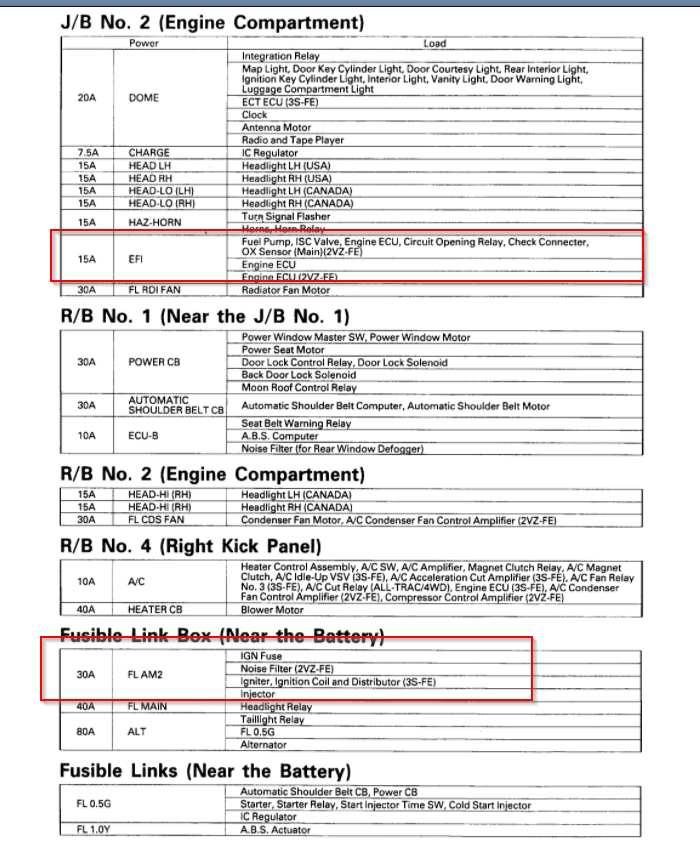

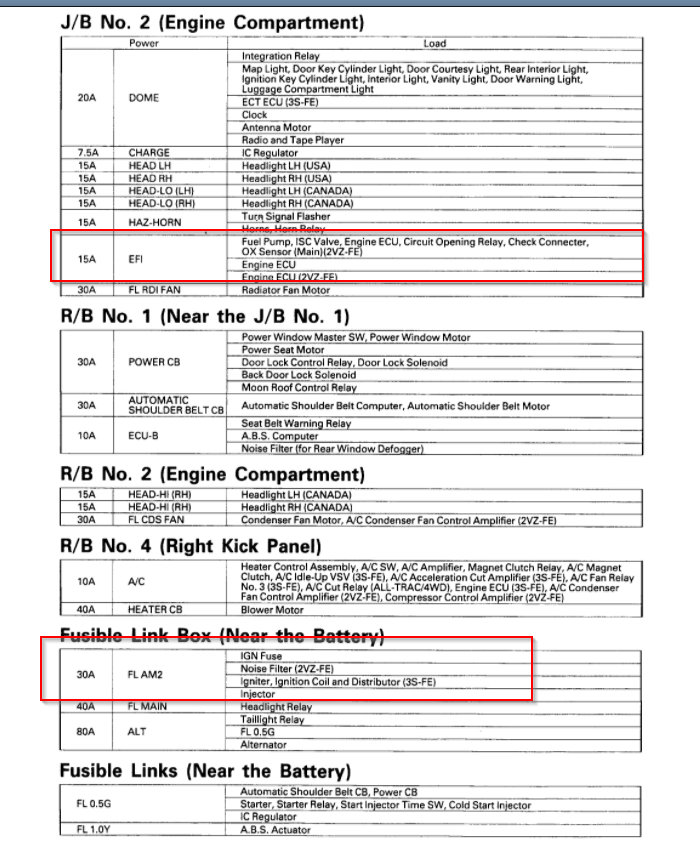

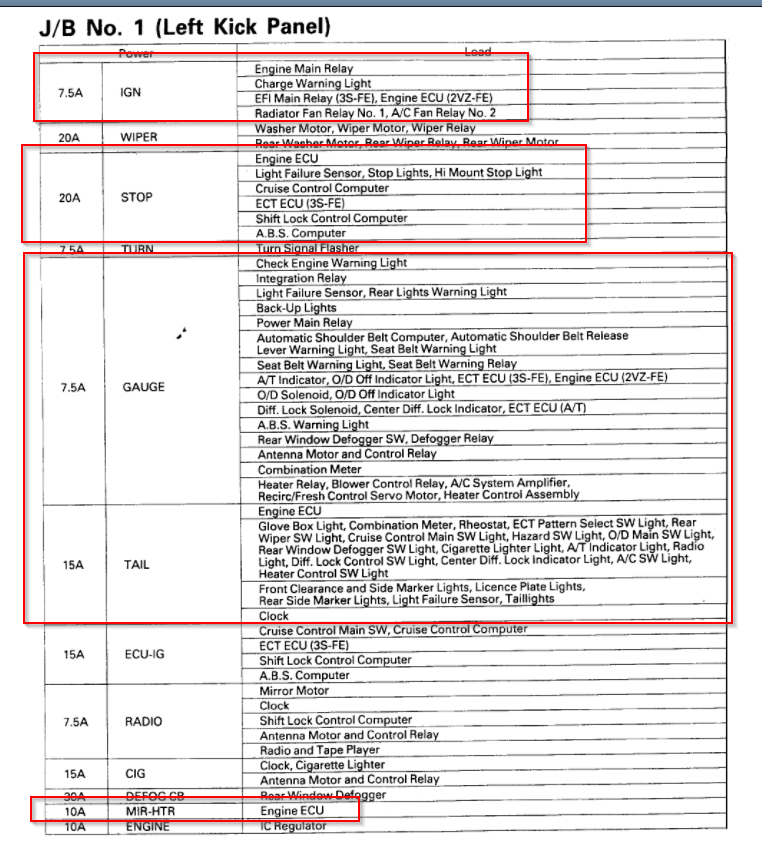

Check out the diagrams (Below). Please let us know what happens.
Images (Click to enlarge)
Attached Media
Attached Media
Jan 11, 2021 at 4:40 PM
