Where are the fuel filter and fuel pump located?
Jan 9, 2011 at 10:52 PM
fuel system
1990 NISSAN AXXESS
DCASH
- MEMBER
- 3 POSTS
- FOLLOW
Advertisement
The fuel filter is found near the right rear wheel area and is covered by a protective plate. It is a pleated paper filter housed in a metal shell to withstand the higher fuel pressures of fuel injected vehicles.
The fuel pump is in the fuel tank to get to it-lift up on the lower portion of the rear seat

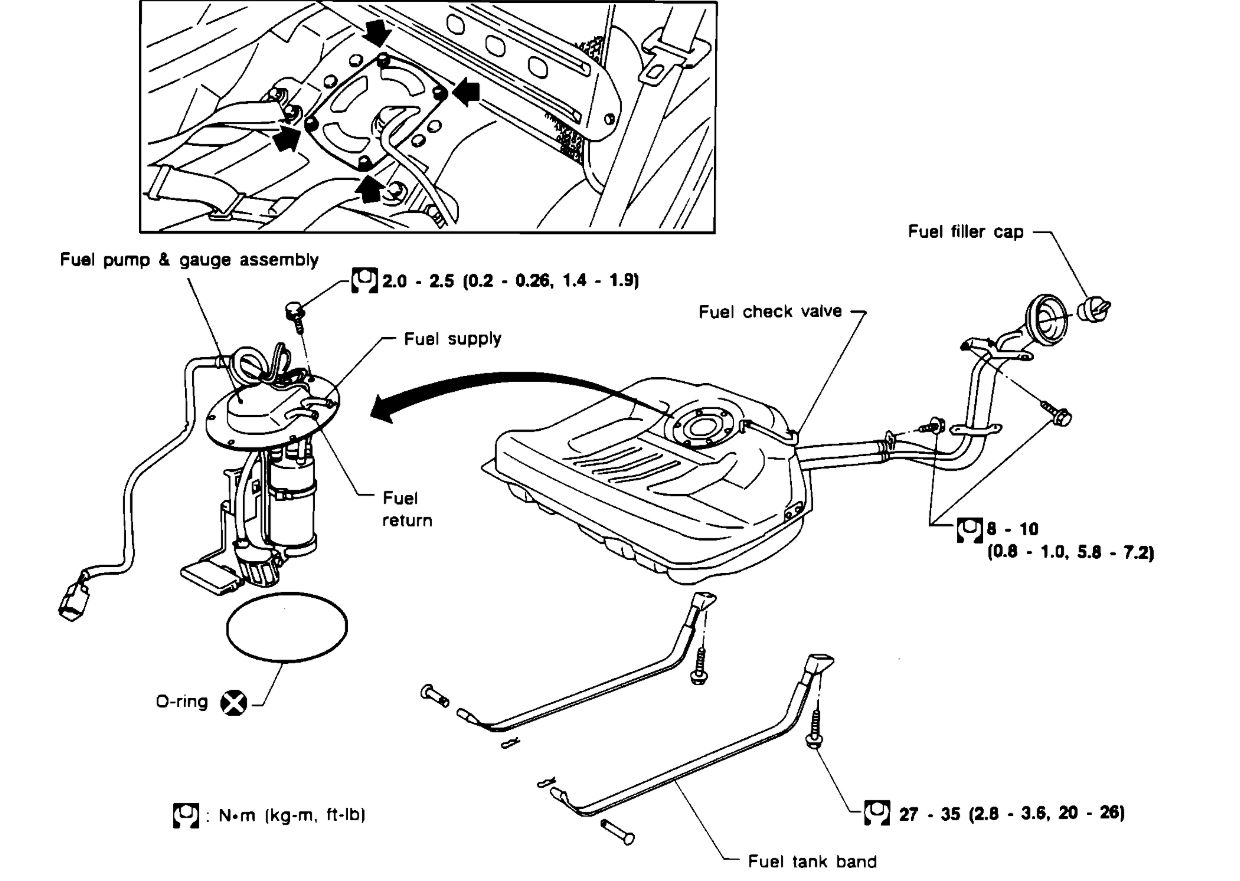

See the diagram below
The fuel pump is in the fuel tank to get to it-lift up on the lower portion of the rear seat
See the diagram below
Image (Click to enlarge)
Jan 9, 2011 at 11:21 PM
A big THANX to rasmataz for the quick response!
Jan 9, 2011 at 11:43 PM
