1990 Jeep YJ Steering concerns

1990 JEEP WANGLER YJ
70,000 MILES • 2.4L • 4 CYL • 4WD • MANUAL
Avatar
VARGMIGUEX
  • MEMBER
  • 1 POST
Occasionally when starting my car one of my belts squeaks for about 10-15 seconds. Also notice as of late that my steering kind of has dead spots like no power steering from 12oclock to 1oclcock then its fine. Not sure if I have a bad power steering belt or if my power steering pump is going bad. Any and all info is greatly appreciated
Mar 27, 2014 at 5:22 PM
Advertisement
Avatar
CJ MEDEVAC
  • CERTIFIED EXPERT
  • 11,004 POSTS
OLD BELTS GET WORN ON THE SIDES---THE LITTLE MIDDLE PART GETS SUCKED IN DEEPER......SOMETIMES BOTTOMING IT OUT....THE SIDES NO LONGER HAVE THE FRICTION THEY ONCE HAD AND WE GET SLIP

SOMETIMES, EVEN THE PULLEYS WEAR OUT TOO

TRY A NEW BELT AND TIGHTEN IT CORRECTLY

DO NOT TOUCH ANY ADJUSTMENTS ON THE STEERING GEAR---THESE ADJUSTMENTS ARE FOR "INITIAL SET-UP" WHEN THE GEAR WAS NEW

MONKEYING WITH THEM WILL LOCK YOUR STEERING UP ..........LIKE WHEN YOU ARE MAKING A LEFT TURN OUT OF THE CENTER LANE----SIX LANES, DOWNTOWN ATLANTA AT 1700 HRS!

SEE IF THE BELT FIXES THINGS BEFORE YOU CHANGE THE PUMP!

KEEP US POSTED

THE MEDIC

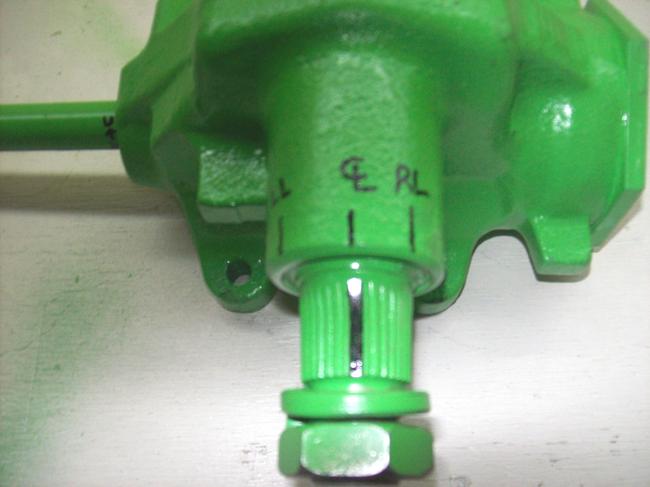

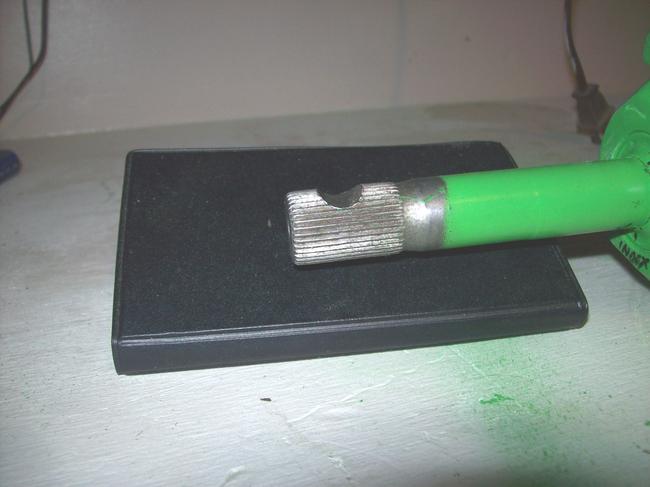

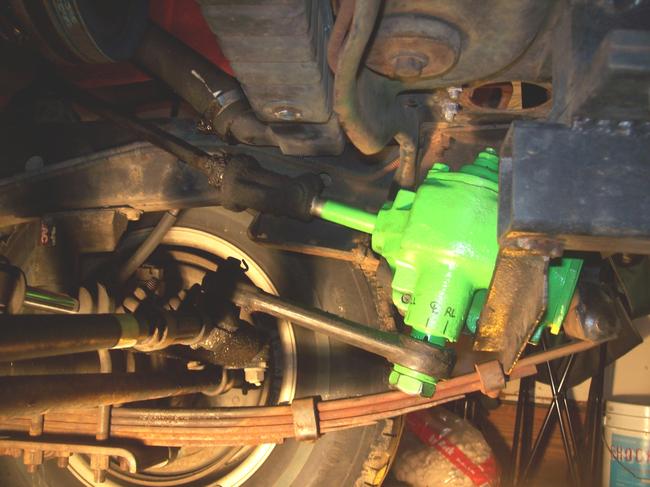

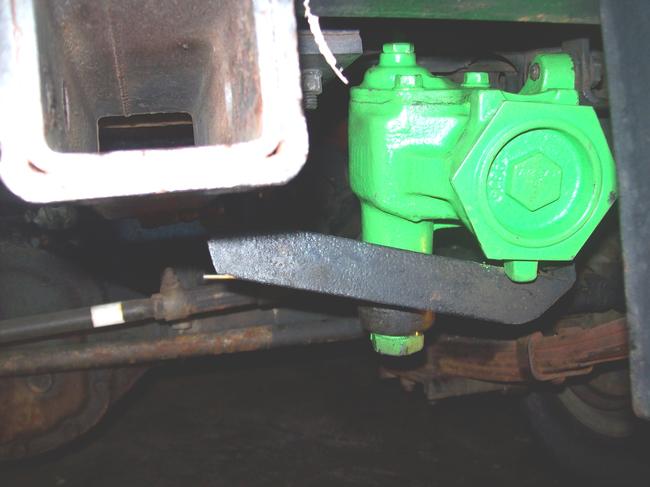

A few pics of my new Saginaw manual steering gear on my '77 CJ 5 (well it was new when i took these pics not too long ago)
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Mar 27, 2014 at 6:20 PM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
check belts and make sure they are tight using a tension gauge
Mar 28, 2014 at 7:13 AM
