Instrument cluster wiring

1990 FORD RANGER
99,342 MILES • 2.3L • 4 CYL • 4WD • MANUAL
Avatar
JEFF TURNER
  • MEMBER
  • 1 POST
I was needing a diagram with the wire location & colors of the plug on the instrument cluster in order to locate which wire comes from the coolant temp sending unit. Any help would be greatly appreciated
Jul 31, 2015 at 8:54 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Hello,

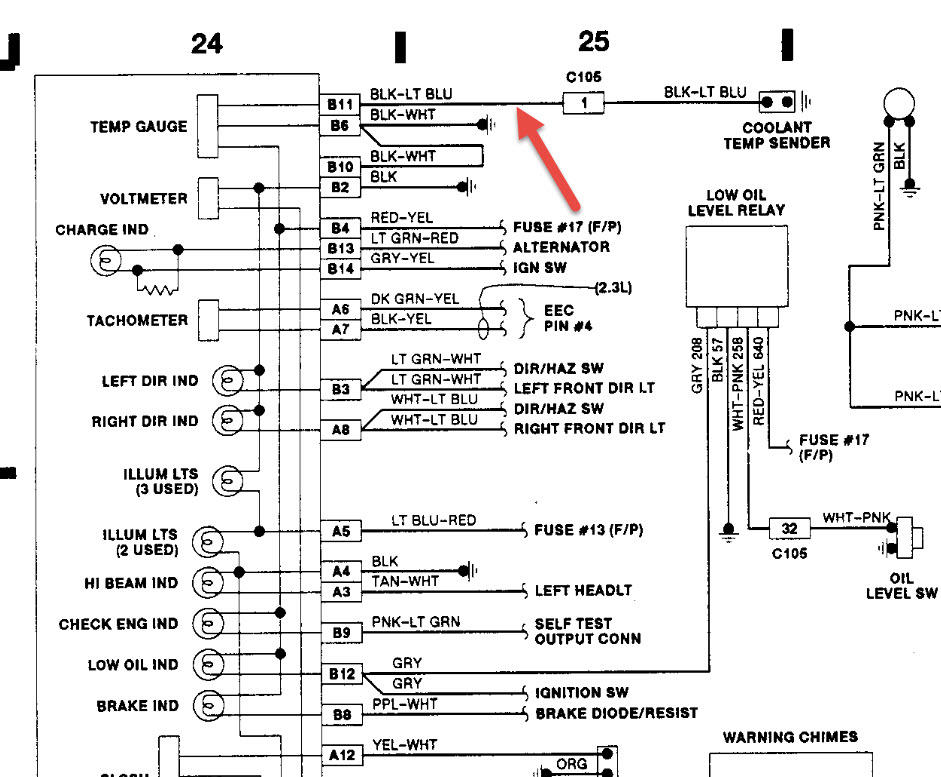

Here is a wiring diagram of the cluster below check out the pic - blu/black wire. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to enlarge)
Attached Media
Aug 1, 2015 at 6:41 AM
Avatar
RICK WILLHITE
  • MEMBER
  • 5 POSTS
This is the diagram I referred to. I checked this fuse (17) by eye and meter, and it checks good. Anything else? Thank You VERY much for the assistance. Rick
Jan 18, 2025 at 11:00 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Yes, the wiring color is blk/ dr blu if you replaced the sensor, and the wire is good you will need to replace the gauge cluster if both fuses are good, and the cluster is grounded.
Jan 21, 2025 at 9:31 AM
Avatar
RICK WILLHITE
  • MEMBER
  • 5 POSTS
I checked the #7 fuse. Which other is there? Thanks for the assistance, Rick
Jan 23, 2025 at 10:00 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Yes, please check fuse# 13 and 17.
Jan 23, 2025 at 11:17 AM
