1990 Eagle Talon separating head from top end

1990 EAGLE TALON
138,000 MILES
Avatar
COWBOY032693
  • MEMBER
  • 16 POSTS
i cant quite figure out how to get the top end off my head. any special tools? i cant figure out if it is the hex keys in the middle or the 12 points oaround the outside. do the cams need to be removed before?
Aug 19, 2013 at 1:06 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
what engine ? turbo or non
Aug 19, 2013 at 7:07 AM
Avatar
COWBOY032693
  • MEMBER
  • 16 POSTS
turbo. i just need to know what the 12 point socket is that i need to separate it
Aug 19, 2013 at 1:33 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

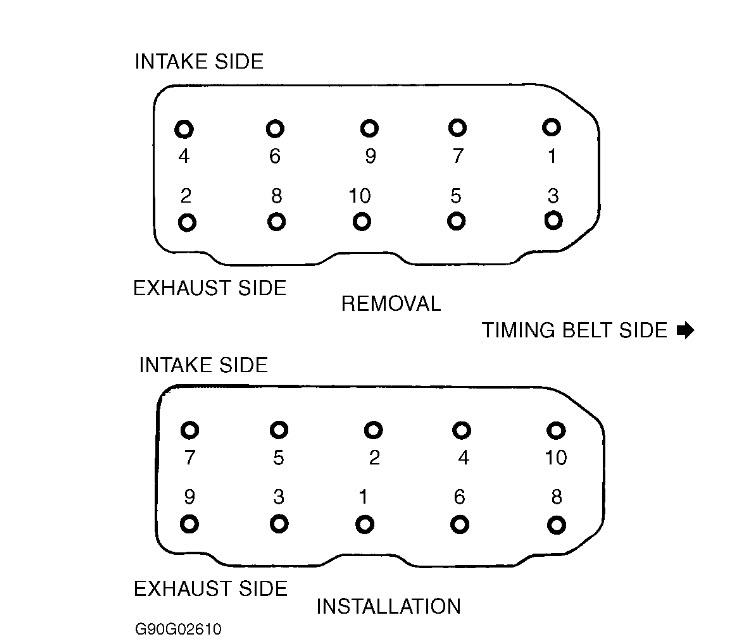

I have no idea it wil be metric though that is for sure. it just gives a tool number for it.md9978051 make sure you follow the reomoval and install bolt procedure that i'msending though and install head gasket correctly as well.
Image (Click to enlarge)
Attached Media
Aug 19, 2013 at 3:02 PM
