idle air control valve location

1989 PONTIAC SUNBIRD
50,000 MILES • 4 CYL • FWD • AUTOMATIC
Avatar
JRCANDFAN4EVER
  • MEMBER
  • 1 POST
where is the idle air control valve on a 89 sunbird se
Feb 3, 2011 at 4:56 AM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

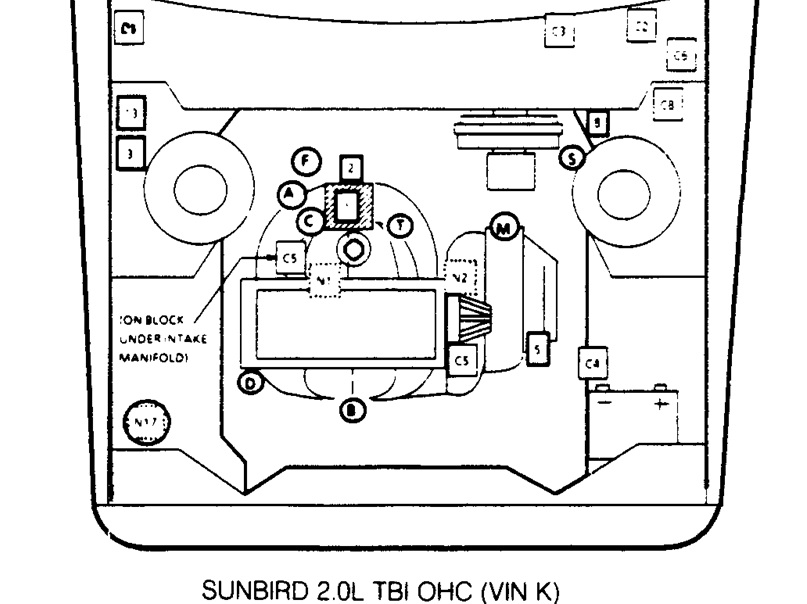

It's on the throttle-body. #2 in the diagram, note the vin. Sorry I don't have a better picture. If you want the wiring colors for the connector, give us the vin. I'm not sure which vin you have?
Image (Click to enlarge)
Attached Media
Feb 3, 2011 at 4:34 PM
