where is the crank sensor located on a 89 grand am 2.5ltr and is there a photo available of its location

1989 PONTIAC GRAND AM
117,000 MILES
Avatar
ABBOTTFRANKJR
  • MEMBER
  • 1 POST
where is the crank sensor located on a 89 grand am 2.5ltr and is there a photo available of its location
Aug 29, 2012 at 6:47 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

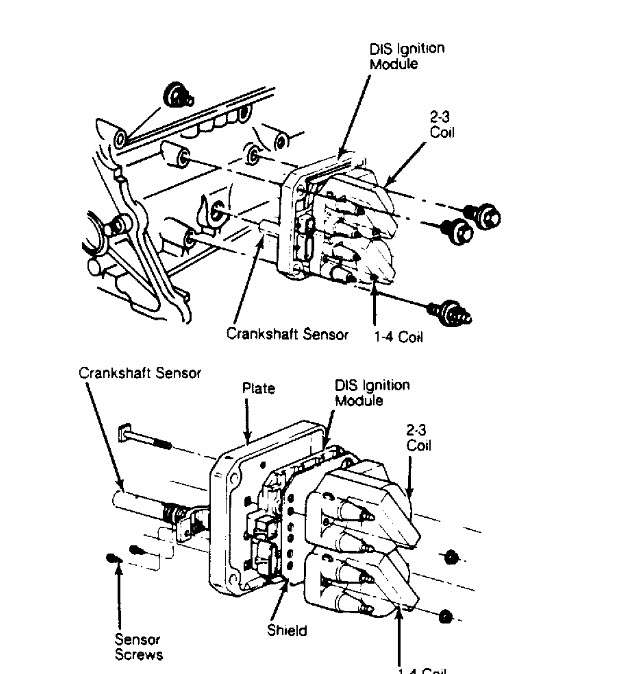

its under the coils and part of the dis module pack
Image (Click to enlarge)
Attached Media
Aug 29, 2012 at 7:06 PM
