1989 Dodge Colt Configuration plug alternator

1989 DODGE COLT
1.5L • 4 CYL • FWD • MANUAL
Avatar
ISRAEL1970
  • MEMBER
  • 1 POST
I need you support to determine wish cables a need to plug on the ALternator
cables from harness
yellow
white
red
white / red (B+ Terminal) TO PLUG with Nut .
I dont have the plug that is conected on the alternator
Sep 16, 2014 at 9:59 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

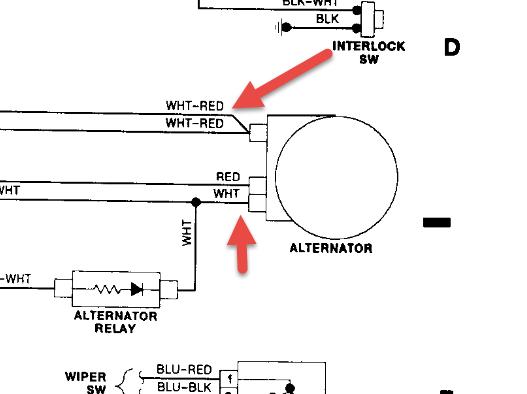

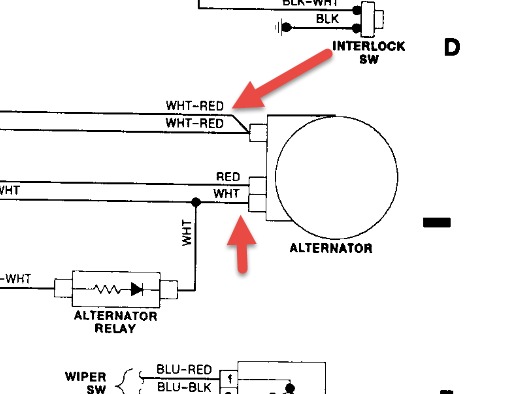

where two red white wires go in diagram go to fusible link the others you can see.
Image (Click to enlarge)
Attached Media
Sep 16, 2014 at 4:18 PM
