ECU pin out diagram needed

1989 DAIHATSU MIRA
46,045 MILES
Avatar
MUZMIRA
  • MEMBER
  • 3 POSTS

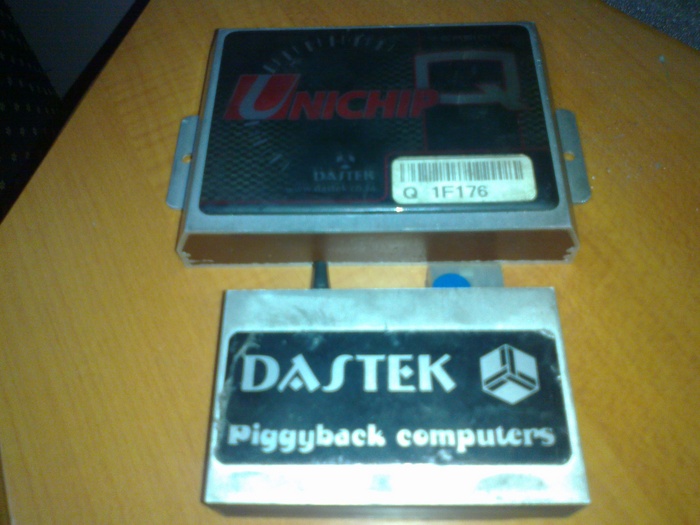

My car is the l20i model. I want to install piggy back ECU that need link to the ECU unit. Below is a picture of the piggy back.
Image (Click to enlarge)
Attached Media
Feb 28, 2012 at 9:05 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Our database does not have any information on your vehicle so I am not able to get you any diagram.
However, I do have a copy of the manual back at my office which I should be able to get it scanned and posted here.

I believe you have the turbo-charged version?
Feb 28, 2012 at 1:28 PM
Avatar
MUZMIRA
  • MEMBER
  • 3 POSTS
yes, mine is turbo charged version. thanks for your time and help. i will wait for the diagram.
Feb 28, 2012 at 11:46 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Sorry for the delay as I kept forgetting to bring the manual home.

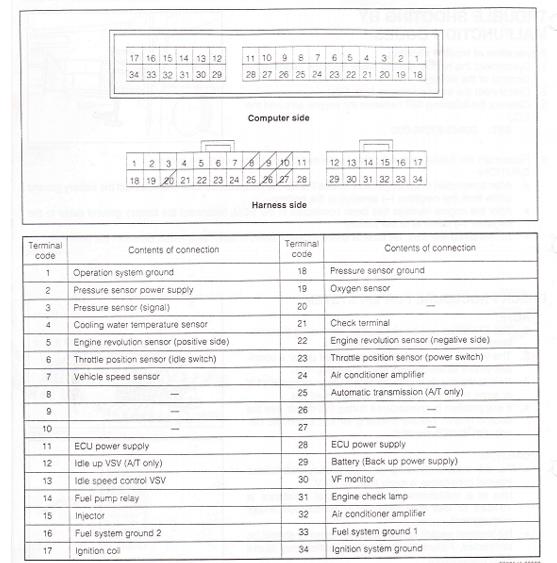

The prints are rather blurred and I hope you are able to make something out of it.
Image (Click to enlarge)
Attached Media
Mar 3, 2012 at 11:35 AM
Avatar
MUZMIRA
  • MEMBER
  • 3 POSTS
Thank you so much for your help. i really appreciate it.
Mar 6, 2012 at 1:15 AM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
You are welcome.

Hope the information is helpful.
Mar 6, 2012 at 12:45 PM
