1989 camaro heat/AC problem

1989 CHEVROLET CAMARO
6 CYL • AUTOMATIC
Avatar
NATALIA1531
  • MEMBER
  • 1 POST
1989 camaro heating/AC problem. doesn't come out of vents or defroster (simply anywhere) but car will eventually get warm/cool inside so it's coming out somewhere. help?
Jan 3, 2011 at 9:41 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

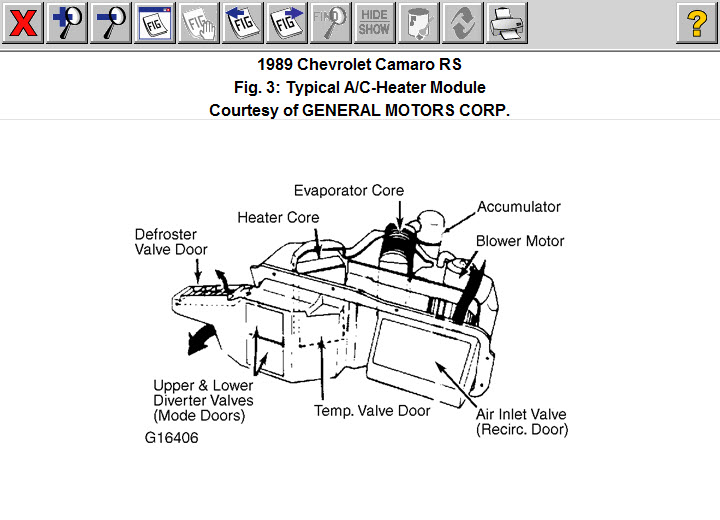

one of your diverterdoorsisn'tworking. i'm sending along a diagram. you'll need to check for a vacuum leak or electrical problem. you'll have to see if the door is getting vacuum or electrical to make it work.
Image (Click to enlarge)
Attached Media
Jan 5, 2011 at 1:40 AM
