Where is the relay switch located on a 1989 Buick LeSabre and is it difficult to replace?
Jul 15, 2012 at 3:47 AM
location of air condition relay switch
1989 BUICK LESABRE
MISSCHAMELEON
- MEMBER
- 1 POST
- FOLLOW
Advertisement
DIFFICULTY ????
I FOUND YOU A COMPONENT LOCATION

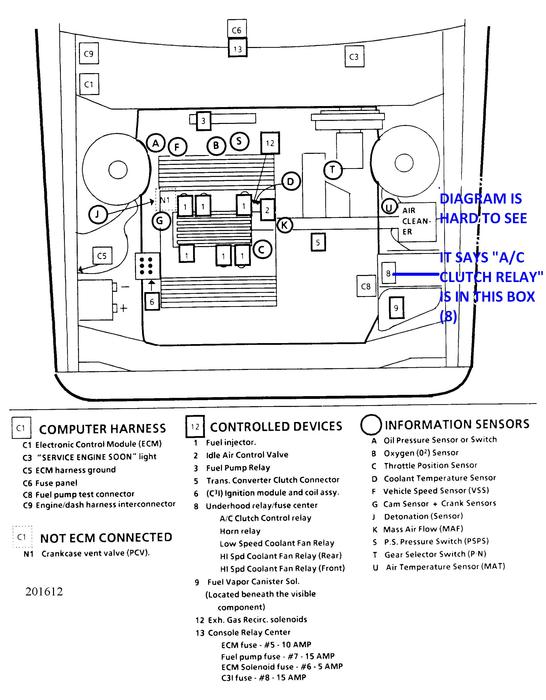

I CAN ONLY SEE "A/C CLUTCH RELAY" (1ST PIC)....THIS WOULD BE A EZ REPLACEMENT, IF THIS IS THE RELAY YOU ARE SEEKING
I COULD NOT FIND A DIAGRAM FOR THE BOX ITSELF.....LOOK IN THE "TOP" FOR THE BOX...OR EVEN THE OWNER'S MANUAL FOR IT'S POSITION
2ND PIC IS THE ENTIRE WIRE DIAGRAM FOR THE SYSTEM
LET ME KNOW IF THIS HELPED
THE MEDIC
I FOUND YOU A COMPONENT LOCATION
I CAN ONLY SEE "A/C CLUTCH RELAY" (1ST PIC)....THIS WOULD BE A EZ REPLACEMENT, IF THIS IS THE RELAY YOU ARE SEEKING
I COULD NOT FIND A DIAGRAM FOR THE BOX ITSELF.....LOOK IN THE "TOP" FOR THE BOX...OR EVEN THE OWNER'S MANUAL FOR IT'S POSITION
2ND PIC IS THE ENTIRE WIRE DIAGRAM FOR THE SYSTEM
LET ME KNOW IF THIS HELPED
THE MEDIC
Images (Click to enlarge)
Jul 15, 2012 at 5:00 AM
