Stereo

1988 FORD BRONCO
V8 • 4WD • MANUAL
Avatar
LOGGERSTHIL
  • MEMBER
  • 3 POSTS
what is the wire color code for a stock 88 bronco xlt stereo i have a cd player to install and the stock wires are all well.... messy and i want to hook my cd player up the correct way without having to guess.
Jul 31, 2011 at 9:30 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

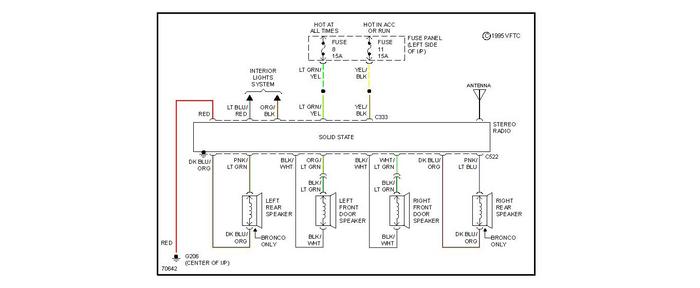

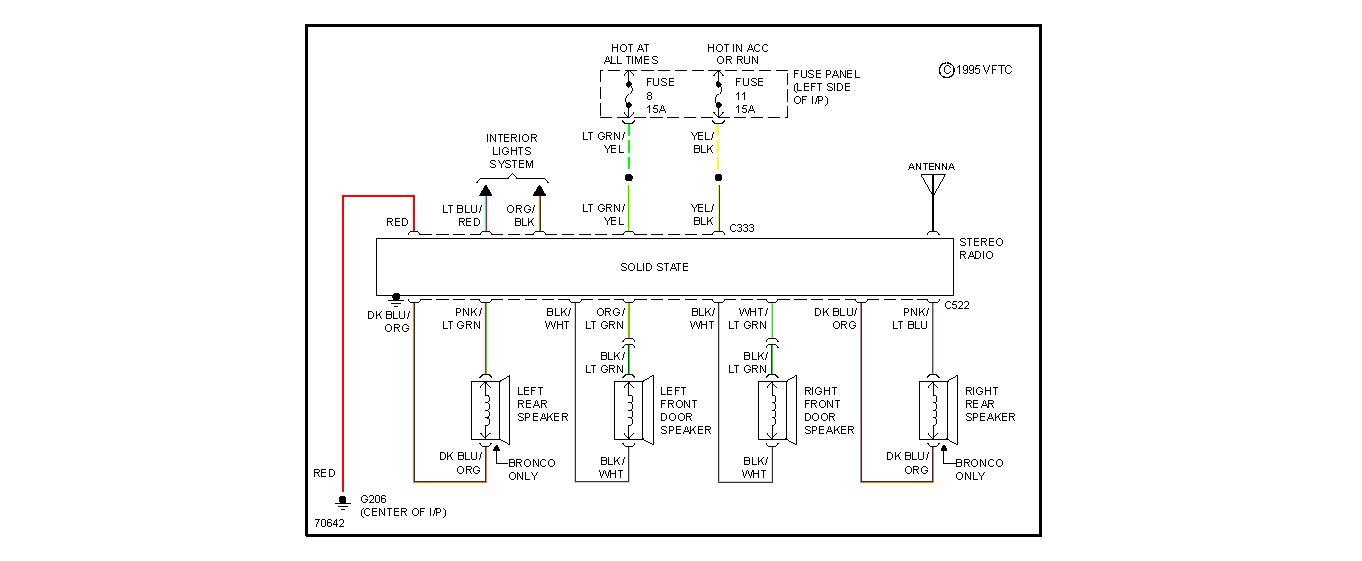

There you go:

Image (Click to enlarge)
Attached Media
Jul 31, 2011 at 9:44 PM
Avatar
LOGGERSTHIL
  • MEMBER
  • 3 POSTS
Thank You soooooo much! the last person who owned it totally rat nested the wires there are even ones not attached and mangled! now i have a place to start. Thanks!
Jul 31, 2011 at 10:53 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
You're welcome
Jul 31, 2011 at 10:55 PM
Avatar
LOGGERSTHIL
  • MEMBER
  • 3 POSTS
any suggestions i have another issue. I work at a scrap yard, and that is where is got my bronco, well i thought the other owner drained everything because front end rear end and tranny/transfer case were all growing and howling at about 45mph. It didnt do it before i changed my axles and hubs now it is and all of those fluids are full. I checked. any sugestions?
Jul 31, 2011 at 10:59 PM
