1988 Dodge Dakota I Can't Find the Timing Marks on the 2.2 Where Are They

1988 DODGE DAKOTA

DAKOTANICK

I can't find the timing marks on the 2.2 where are they

Mar 30, 2013 at 5:50 PM

ASEMASTER6371

the marks on the crank and distributor gears line up with each other. the cam goes straight up.

Roy

Mar 30, 2013 at 5:56 PM

DAKOTANICK

Is there a diagram I can look at

Mar 30, 2013 at 5:59 PM

ASEMASTER6371

i am on a different computer. i will try to copy and paste

Roy

Mar 30, 2013 at 6:01 PM

DAKOTANICK

Thank you

Mar 30, 2013 at 6:02 PM

ASEMASTER6371

get back to you soon

Mar 30, 2013 at 6:03 PM

DAKOTANICK

I just need to know where the oil pump gear needs to point

Mar 30, 2013 at 10:27 PM

THIS IS MIKE

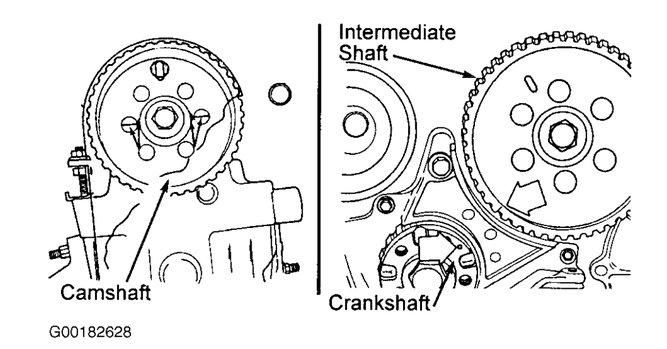

here you go

Image (Click to enlarge)

Jul 19, 2013 at 11:49 AM
