constant blowing of fuse

1988 CHEVROLET TRUCK
146,000 MILES • V8 • 4WD • AUTOMATIC
Avatar
ELREED11
  • MEMBER
  • 1 POST
Horn/interior/dome light fuseblown 2/9/11 when replaced fuse continue to blow.1988Chev
Feb 12, 2011 at 8:35 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

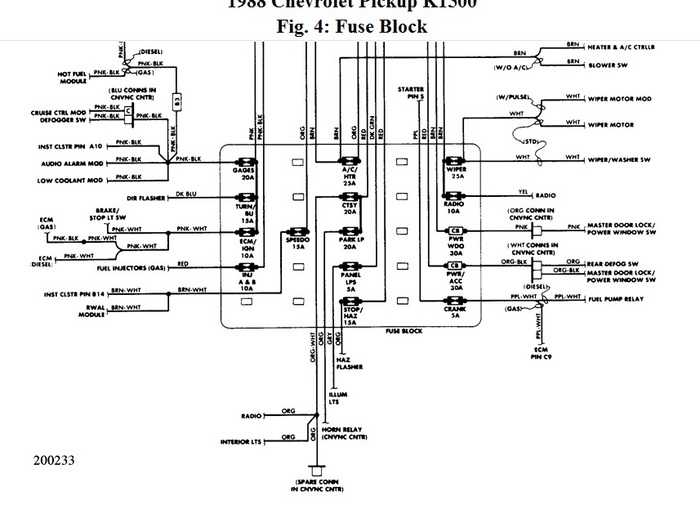

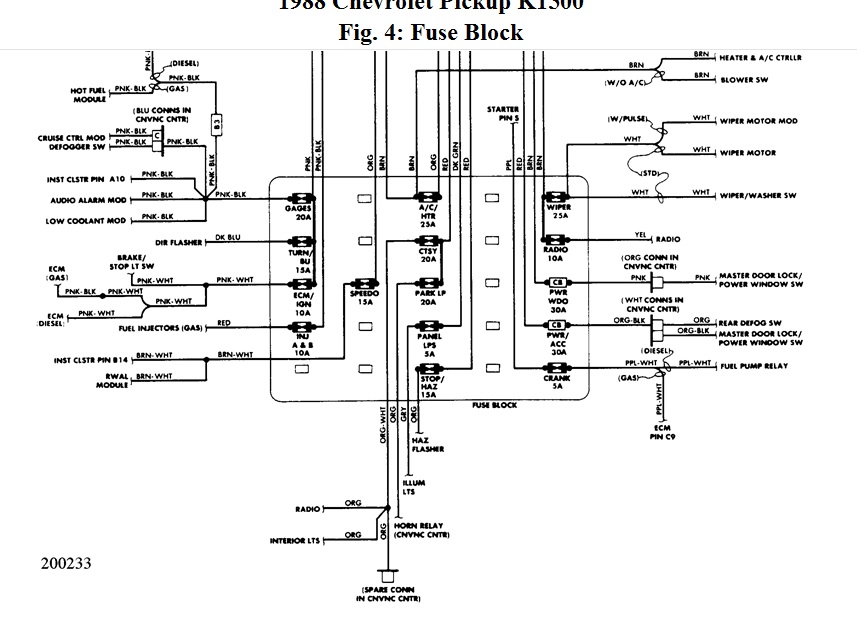

My info shows the horn relay gets voltage from the park lamps fuse. The interior lite get it from the courtesy fuse. These databases are not always correct. The fusebox is below. You could use a testlite across the fuse terminals, instead of blowing all your fuses. The testlite should control the amp draw, maybe nothing will get too hot. If the testlite comes on, it's going to ground somewhere? Disconnect circuits on that fuse, one at a time, see if lite goes out?
Feb 12, 2011 at 9:19 PM
