headlight replacement

1988 BUICK PARK AVENUE
6 CYL • 2WD • AUTOMATIC
Avatar
SWEENY
  • MEMBER
  • 4 POSTS
Diagrham on how to replace headlamp headlight on 1988 buick park avenue
Feb 9, 2011 at 6:05 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

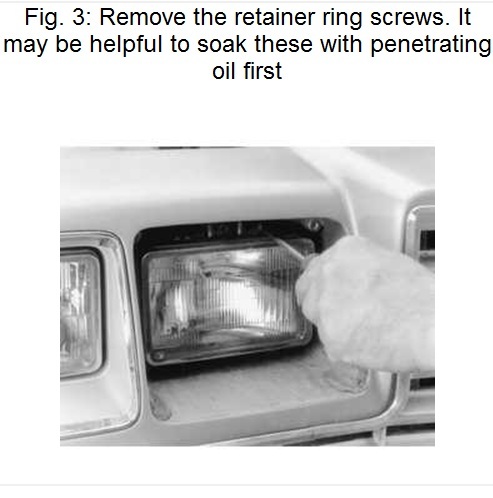

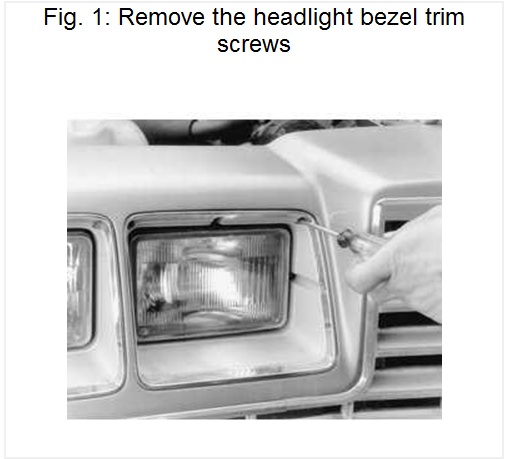

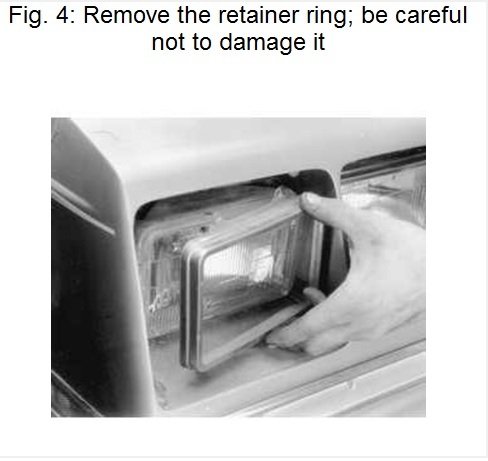

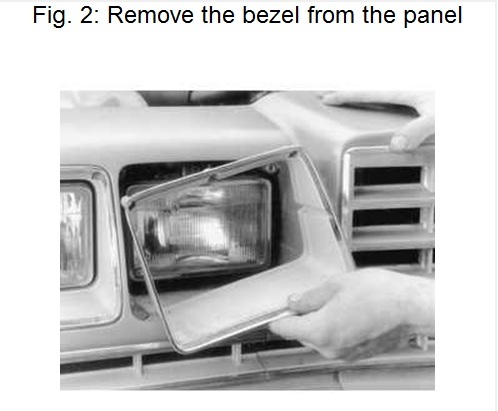

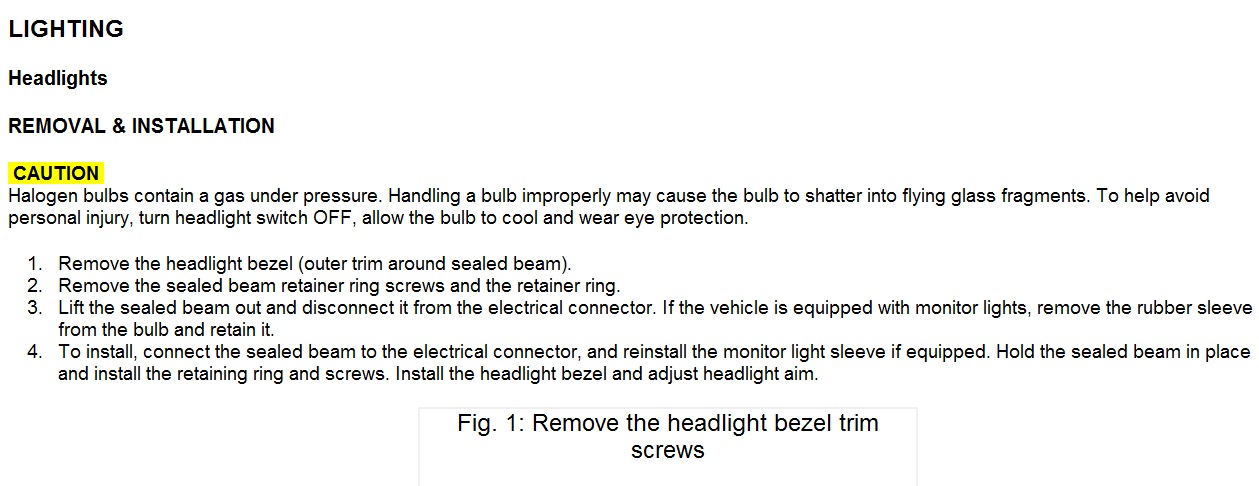

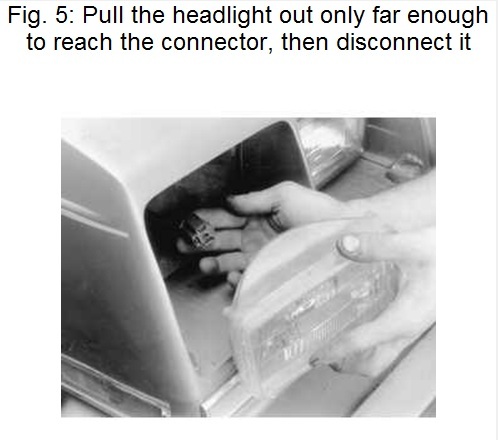

The info is below.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Feb 9, 2011 at 6:29 PM
Avatar
SWEENY
  • MEMBER
  • 4 POSTS
Nice try. That diagram is not a 1988 Buick Park Avenue. Any others/
Tom
Feb 9, 2011 at 6:39 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
My info said it was. I'm done.
Feb 9, 2011 at 7:21 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

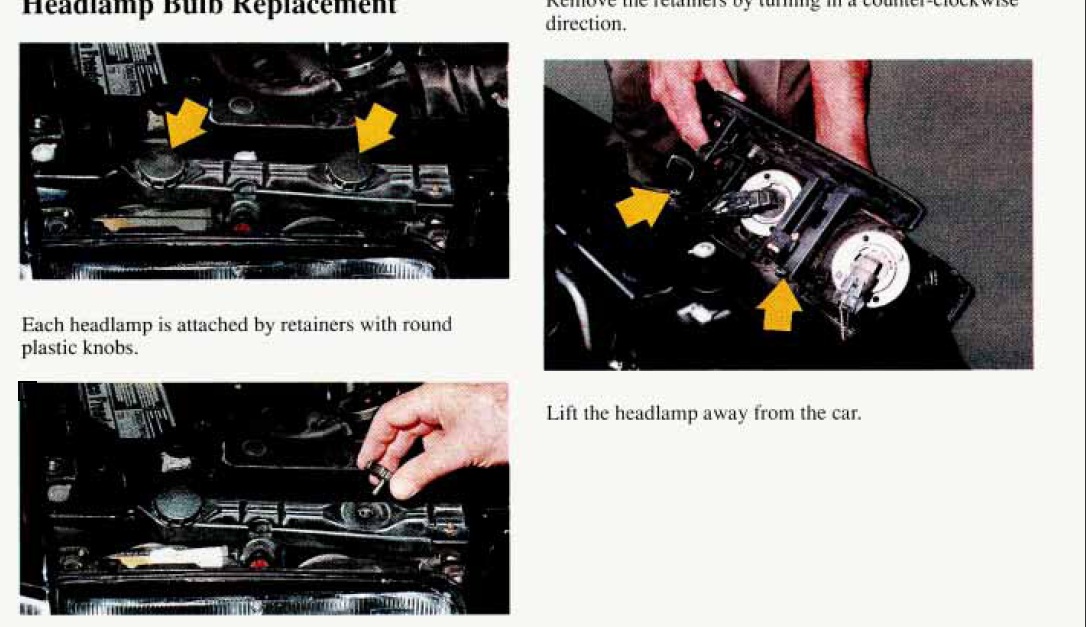

Well you got me curious, I guess it isn't a sealed-beam lamp? The oldest owners manual I could find was for 93 buick park avenue. Don't know if procedure is the same for 88. Procedure is below, I don't have anything else.
Image (Click to enlarge)
Attached Media
Feb 9, 2011 at 7:47 PM
