no spark

1988 BUICK ELECTRA
150,000 MILES
Avatar
DIRTRAT
  • MEMBER
  • 1 POST
I have 88 buick electra new coil still no spark
Sep 12, 2011 at 4:28 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Did you check primary voltage to the coil? If okay it sounds like the crankshaft angle sensor is out.
Sep 12, 2011 at 4:33 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

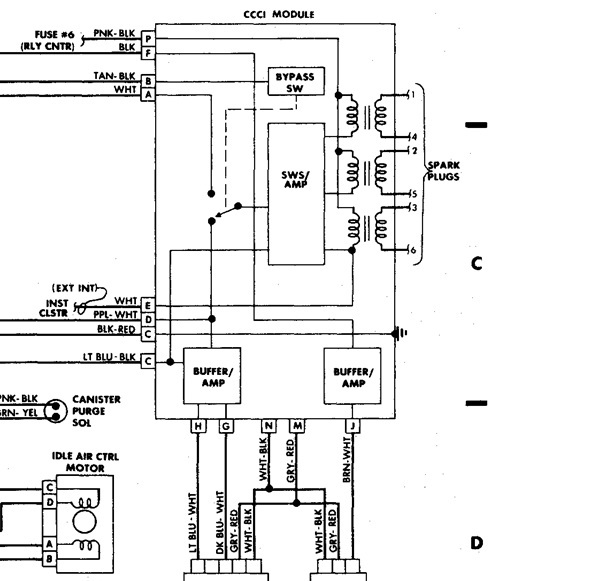

dis ignition. Any applicable trouble codes? In the diagram below, the top pink wire is primary voltage for the coils, probably goes hot/voltage when you turn on the key, If nothing there, check the fuse and wiring circuit.

https://www.2carpros.com/articles/buick-cadillac-chevy-gmc-oldsmobile-pontiac-gm-1983-1995-obd1-code-definitions-and-retrieval-method

I just had one of these in the shop so that why I say crankshaft angle sensor.

Also, engine cranking, do you have an injector pulse?

Please get back to me.
Sep 12, 2011 at 4:42 PM
