turn signal flasher

1987 MAZDA B2000

150,000 MILES • 4 CYL • 2WD • MANUAL

LORIALSCOTT

MEMBER
1 POST
FOLLOW

i have a 1987 mazda b2000 and my turn signals do not work, but my hazards do. i found the hazard light flasher, but not the turn signals flasher. Do they both run off the same flasher? i was told yes but they have different fuses. Are the fuses located in the flasher or where? Where could i go to see an image of where this is located or a video?

Jul 13, 2011 at 1:08 PM

STRAILER

CERTIFIED EXPERT
53,854 POSTS

Hello,

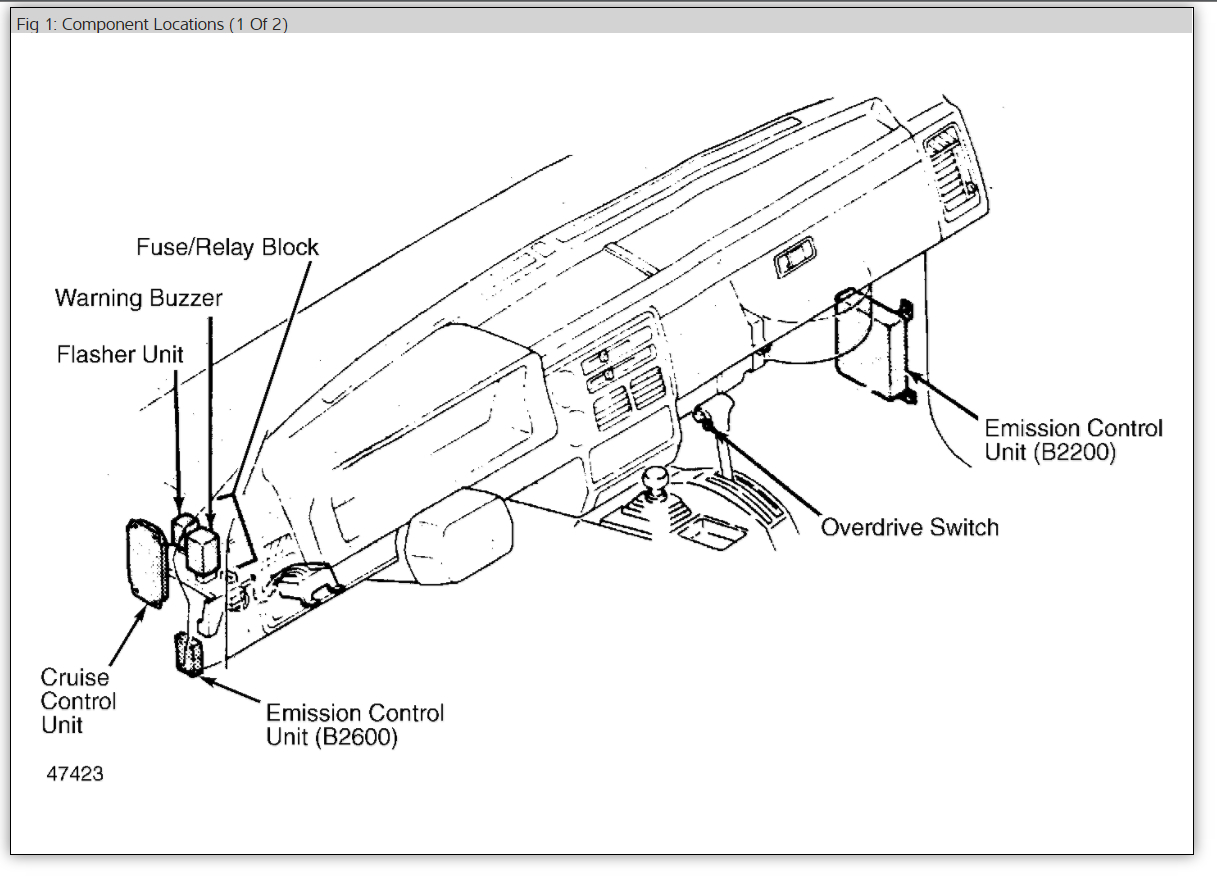

Here are some guides and diagrams that will help you test the fuses and get the problem fixed. The flasher is located on the drivers side foot well check out the diagrams to see.

https://www.2carpros.com/articles/turn-signals-not-working-blinker

and

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

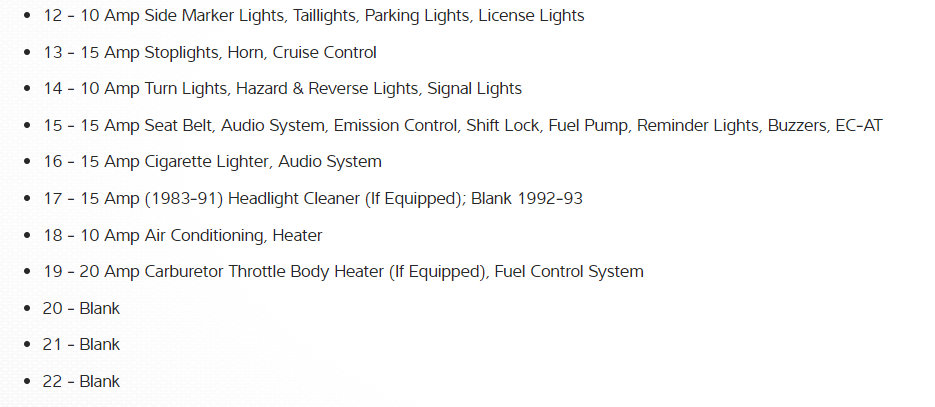

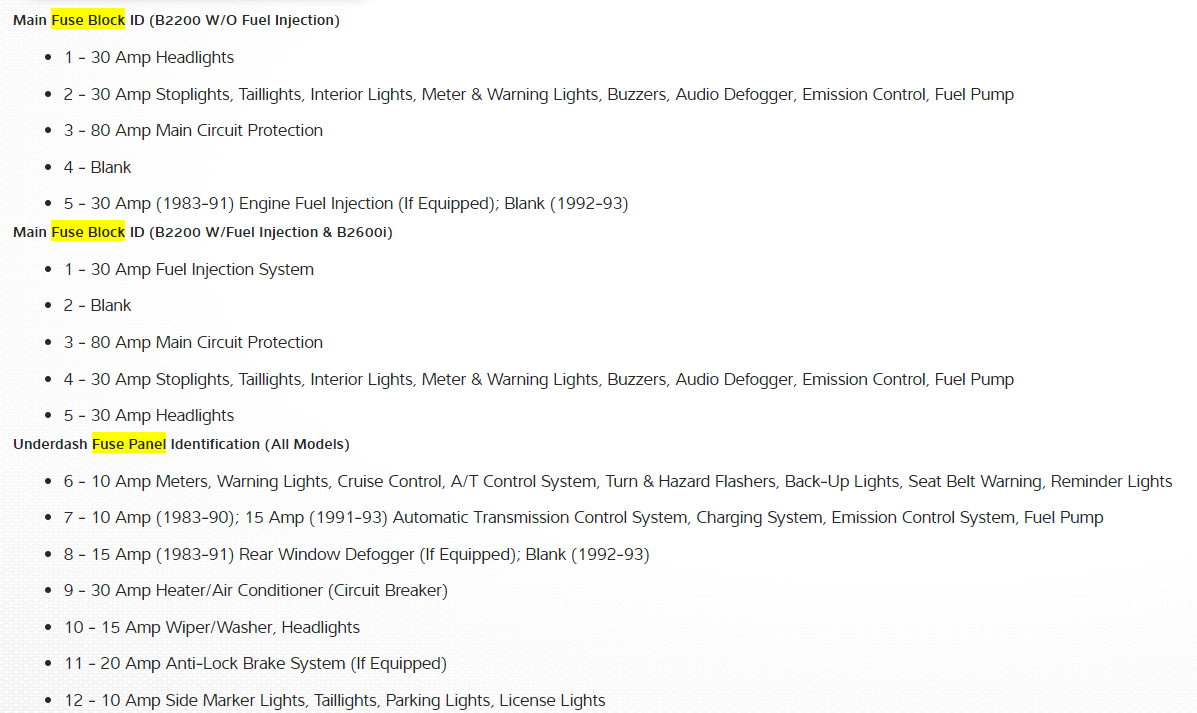

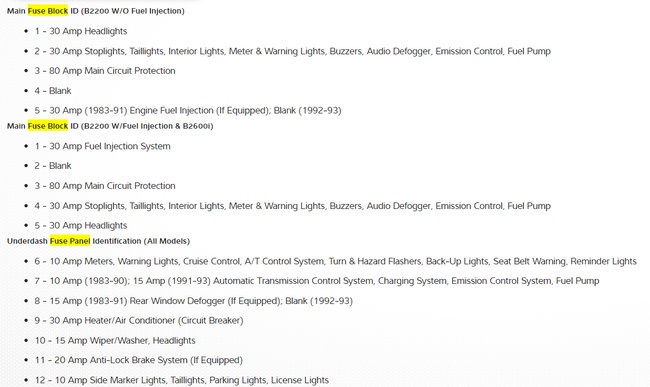

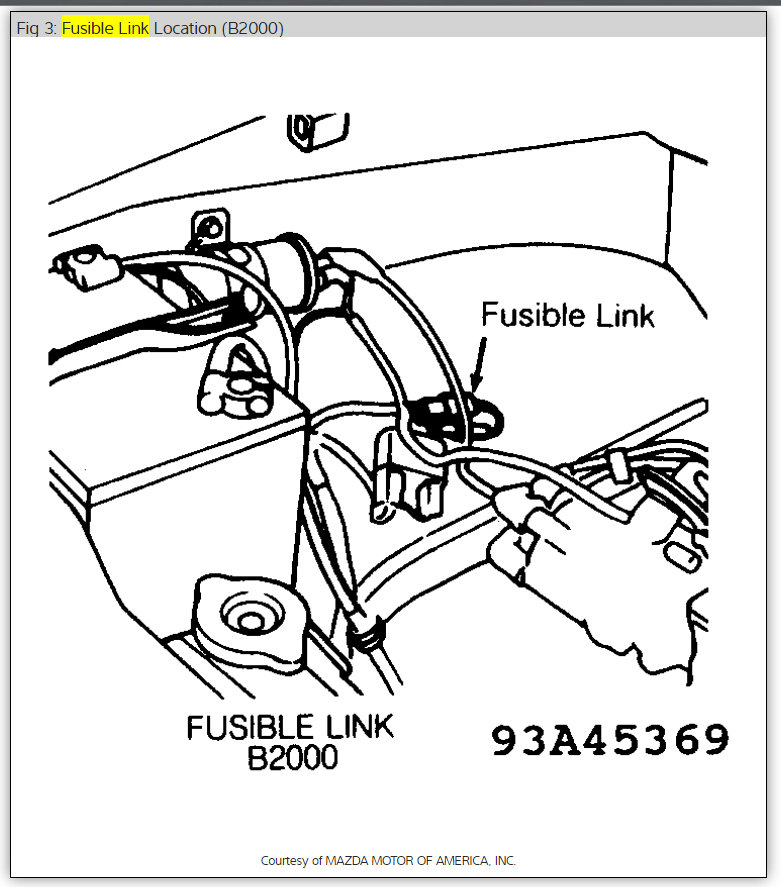

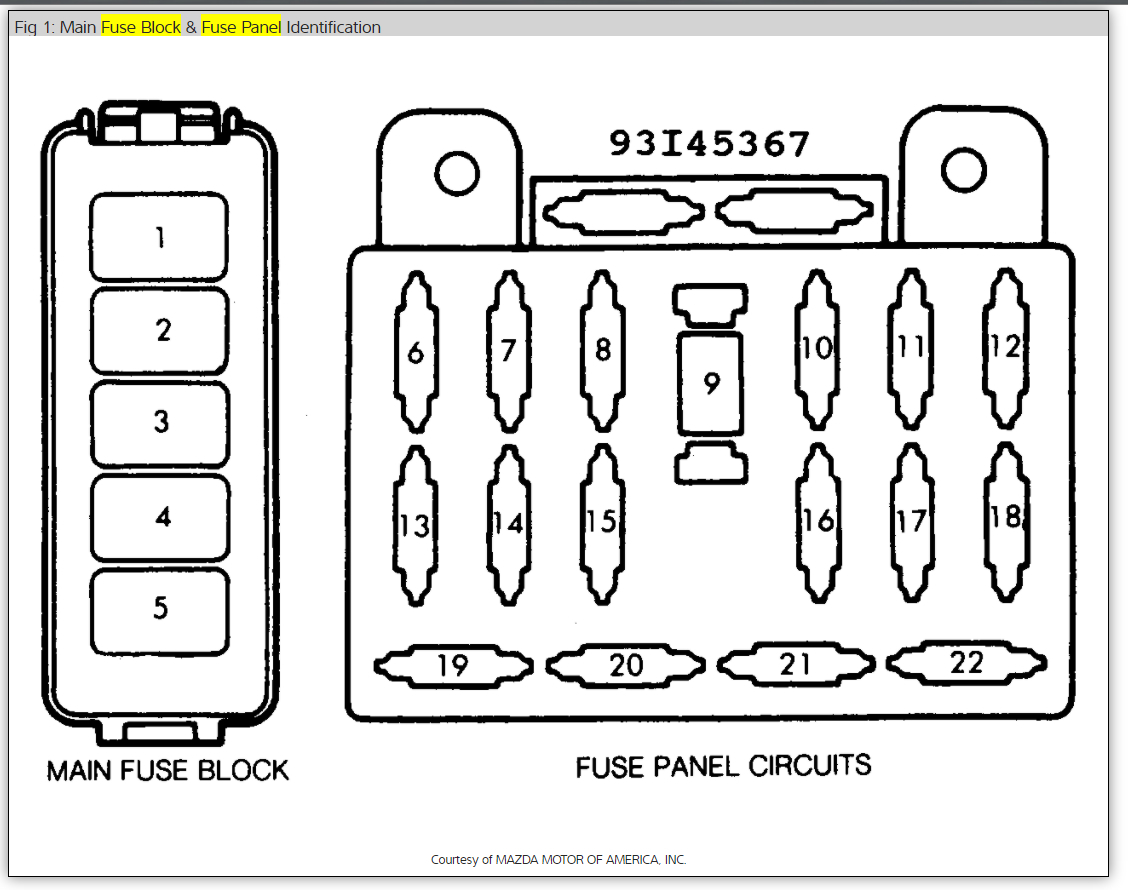

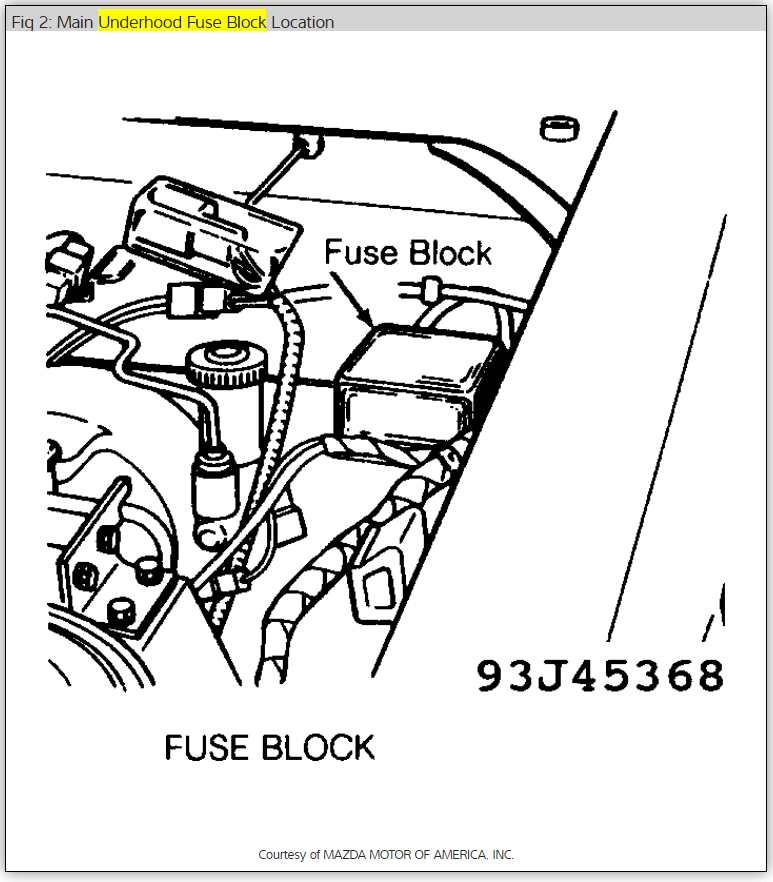

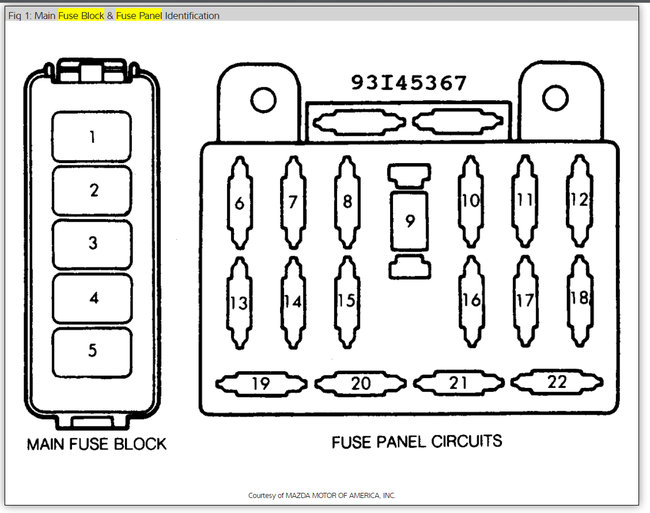

Here are the diagrams (below)

Please let us know if you need anything else to get the problem fixed.

Cheers, Ken

Images (Click to enlarge)

Oct 3, 2017 at 8:56 PM
