troubleshooting

1987 GMC S15
98,000 MILES • 6 CYL • 4WD • MANUAL
Avatar
WYKLE42548
  • MEMBER
  • 1 POST
fuel pump on 87 gmc s15 troubleshooting
Nov 20, 2010 at 1:54 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

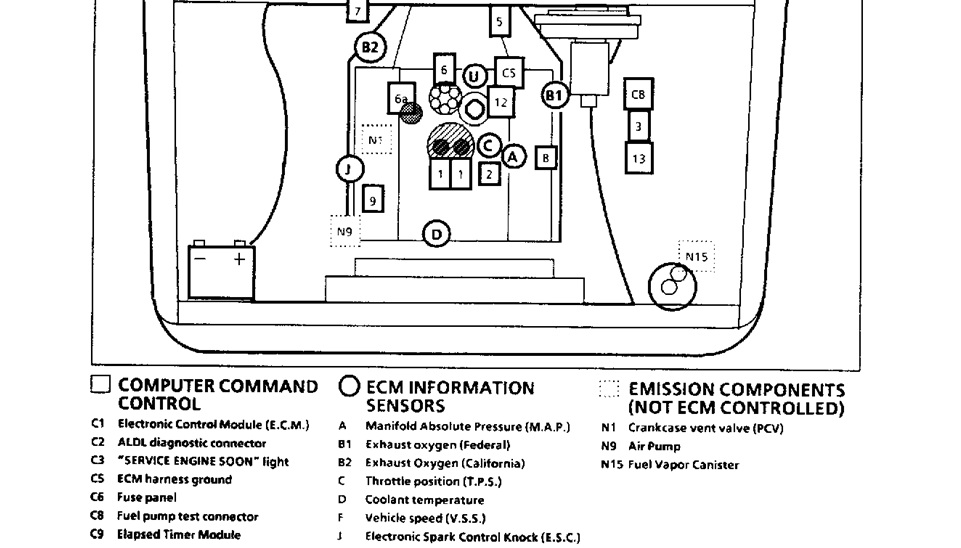

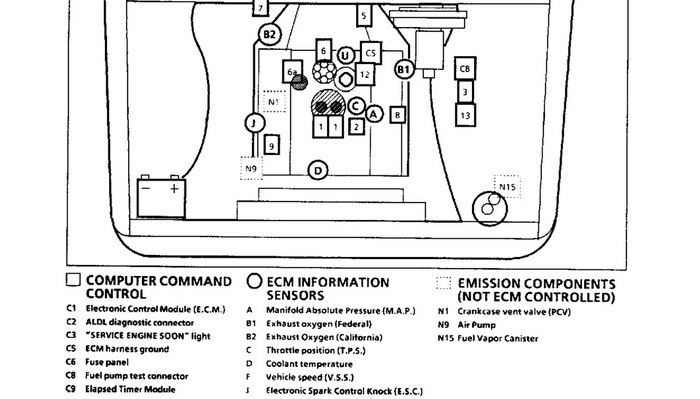

Just to add, there should be a fuel pump test connector, under the hood. driverside fender lining. Tan wire with white tracer, electrical connector, nothing plugged into it. If you use a jumper wire with inline fuse to battery +, the pump should run, no need to use the key. In the diagram c8 is the test connector, #3 is the fuel pump relay.

Nov 20, 2010 at 2:31 PM
