i have a 1985 ford f-150 pickup /302 fi all of the fuses are wrong but i cant find a manual or diagram im thinking thats the cause of my alternator not putting out the right amps grand battery said alt is bad auto zone and car quest said its putting out below normal but is working,i really need the fuse boxe under dash diagram bad please help
Aug 6, 2011 at 11:16 AM
Advertisement
Avatar
SHANNONMEEKER
  • MEMBER
  • 34 POSTS
thats real close thank you but its not the one, it looks just like that but i dont have 2,3,10,13,20,i do have all the outhers and 1 real tight next to 11,12 .i baught a bunch of 20 amps and put in all the spots will that work,my altnator still dont work,im buy a new one tomarow and put in it must be bad
Aug 6, 2011 at 11:57 PM
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
That IS your fuse box. If you read it, those slots are not used
Aug 7, 2011 at 12:06 AM
Advertisement
Avatar
SHANNONMEEKER
  • MEMBER
  • 34 POSTS

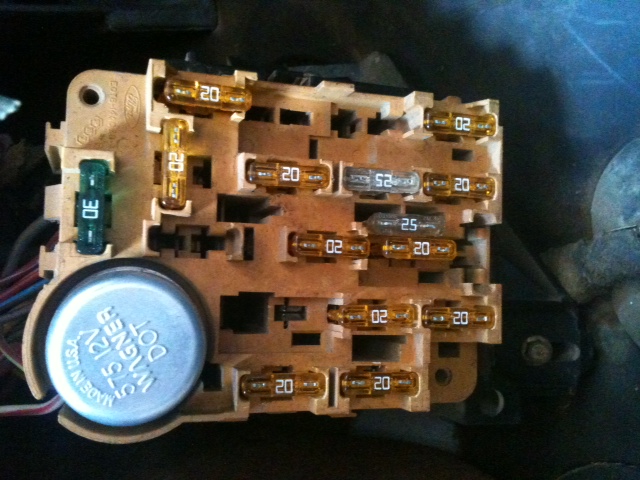

here is a pict of the 1 i have
Image (Click to enlarge)
Attached Media
Aug 7, 2011 at 12:18 AM
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
That's the exact same box. That 25amp in the middle looks like it doesn't belong there.
Aug 7, 2011 at 12:22 AM
Avatar
SHANNONMEEKER
  • MEMBER
  • 34 POSTS
ok thank you again
