1985 chrysler new yorker FWD...2.6 LITER..NEED Coil Wiring Diagram purchased car payed the old owner next day i picked up vehicle with tow dolly ..he said some one stold the coil .. have no idea where the wires go on the new coil i purchaes please help..
Jun 16, 2013 at 11:48 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

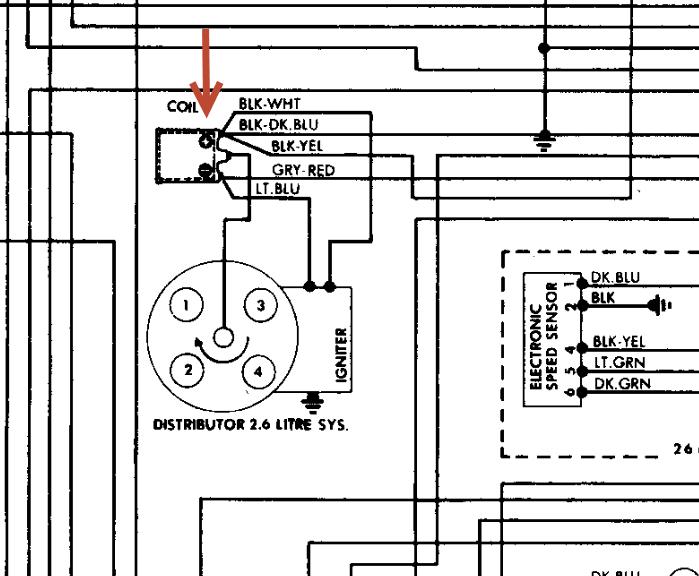

see pic arrow pints to positive
Image (Click to enlarge)
Attached Media
Jun 17, 2013 at 5:59 AM
Avatar
HAMMER67
  • MEMBER
  • 3 POSTS
thank you....big help HMAC300....IF I COULD ASK YOU ONE MORE THING..
the old owner thought the computer was bad in the 1985 chrysler newyorker 2.6 fwd

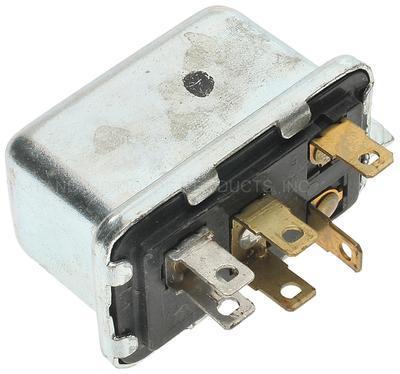

but after i put a coil in it and a computer in it still no spark or fuel pump.. i tryed running a hot wire from the battery to the ignition side of the coil +..i was told if the fuel pump kicked on the asd relay was bad..but it did not..do you think the hal senor is bad in the distributor?? can you tell me where the asd relay is,, is it mounted on the strut..would it be the first one on the left .....the car will be a young guns race car for my son ..any ideas would be greatful..thank you for your help..inclosed is a picture what i think is the asd...
Image (Click to enlarge)
Attached Media
Jun 17, 2013 at 7:05 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

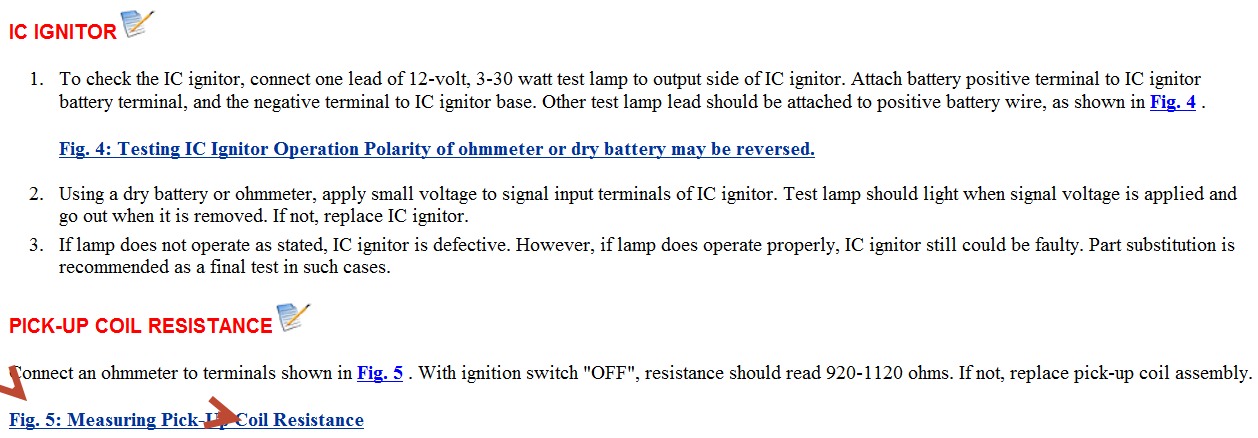

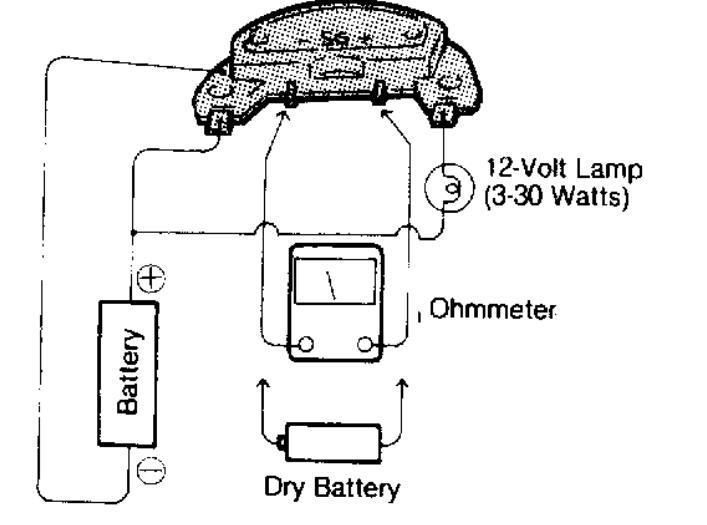

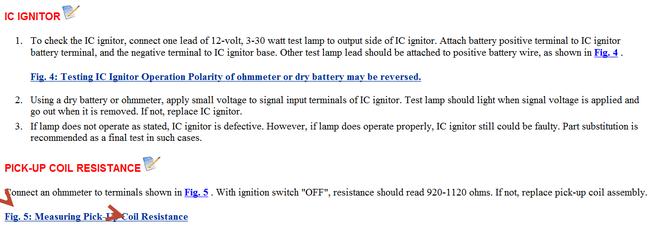

see pic for instructions on how to check but chck pickupcoil ifrst
Images (Click to enlarge)
Attached Media
Attached Media
Jun 17, 2013 at 9:49 AM
