How do I remove the ac compressor belt?

1984 VOLVO 242
108,000 MILES
Avatar
WOODSTOCKCT
  • MEMBER
  • 9 POSTS
There are 2 Fan belts, 1 AC Compressor belt and 1 Power Steering belt. The Fan and PS both have 10mm bolts that can be loosened to remove the belts. However, the AC Compressor looks stationary and lives below the PS unit. I believe this is a newer compressor installed 3 years ago when the AC system was upgraded. I can't figure out how to loosen the tension on that belt.
Sep 4, 2011 at 4:21 PM
Advertisement
Avatar
DOCFIXIT
  • CERTIFIED EXPERT
  • 18,828 POSTS
Crank pully two piece ie. split see the 6 or so bolts in center of pully. see diagram unbolt each little at a time front pully will come off and belt see shims that is how to adjust remove to tighten add to loosen
Image (Click to enlarge)
Attached Media
Sep 4, 2011 at 8:22 PM
Avatar
WOODSTOCKCT
  • MEMBER
  • 9 POSTS
That front crank pulley (bottom right) is for the PS belt. So, loosen those 6 bolts and remove and that will reveal the compressor pulley on the backside. Are the shims there?
Sep 4, 2011 at 9:01 PM
Advertisement
Avatar
DOCFIXIT
  • CERTIFIED EXPERT
  • 18,828 POSTS
Yes remove 6 bolts then front of pullt comes off and belt will need to remove PS belt to remove AC belt from engine
Sep 4, 2011 at 9:07 PM
Avatar
WOODSTOCKCT
  • MEMBER
  • 9 POSTS
Still will need to loosen the PS unit up above also, correct. That will take the tension off the PS pulley, right?
Sep 4, 2011 at 10:04 PM
Avatar
WOODSTOCKCT
  • MEMBER
  • 9 POSTS

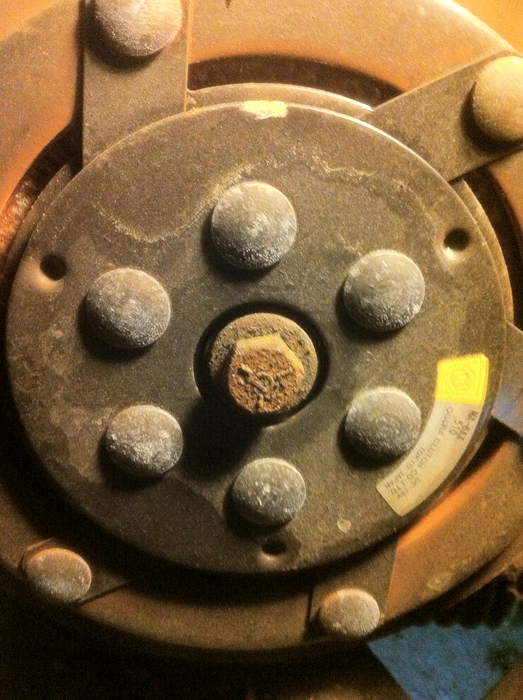

Doc - Seems to be a problem for me to remove these 6 bolts as there is no way to access the nuts? See snapshop of the front of the ac compressor. Any idea?
Image (Click to enlarge)
Attached Media
Sep 5, 2011 at 9:22 PM
Avatar
WOODSTOCKCT
  • MEMBER
  • 9 POSTS

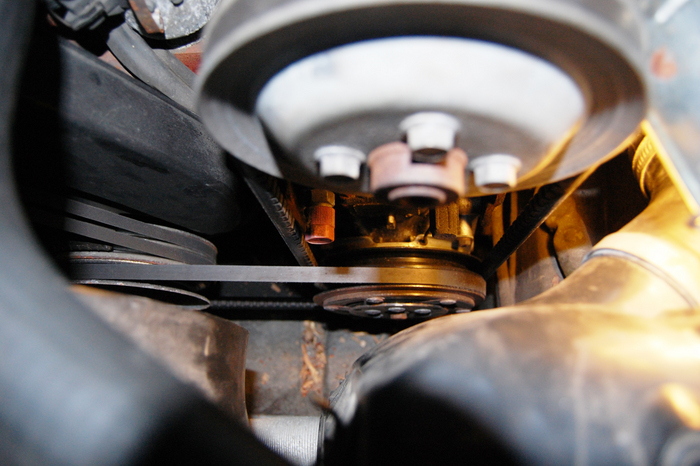

I'm figuring you really meant to say the crankcase pulley instead of the compressor pulley. I'll go that route. Here is the photo it's the one at the bottom LEFT (same in your diagram) not the bottom right.
Image (Click to enlarge)
Attached Media
Sep 6, 2011 at 12:53 AM
Avatar
DOCFIXIT
  • CERTIFIED EXPERT
  • 18,828 POSTS
I did say crank pully
Sep 6, 2011 at 3:35 PM
Avatar
WOODSTOCKCT
  • MEMBER
  • 9 POSTS
Yes, you did... thanks again.
Sep 6, 2011 at 3:41 PM
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS
Woodstock, did you get this taken care of?
Nov 28, 2011 at 2:34 AM
Avatar
WOODSTOCKCT
  • MEMBER
  • 9 POSTS
Yes, I'm all set.
Nov 28, 2011 at 6:31 AM
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS
Good. Glad to hear it. Have a great week. Post a new question if we can be of further help.
Nov 28, 2011 at 6:40 AM
