Heater core replacement

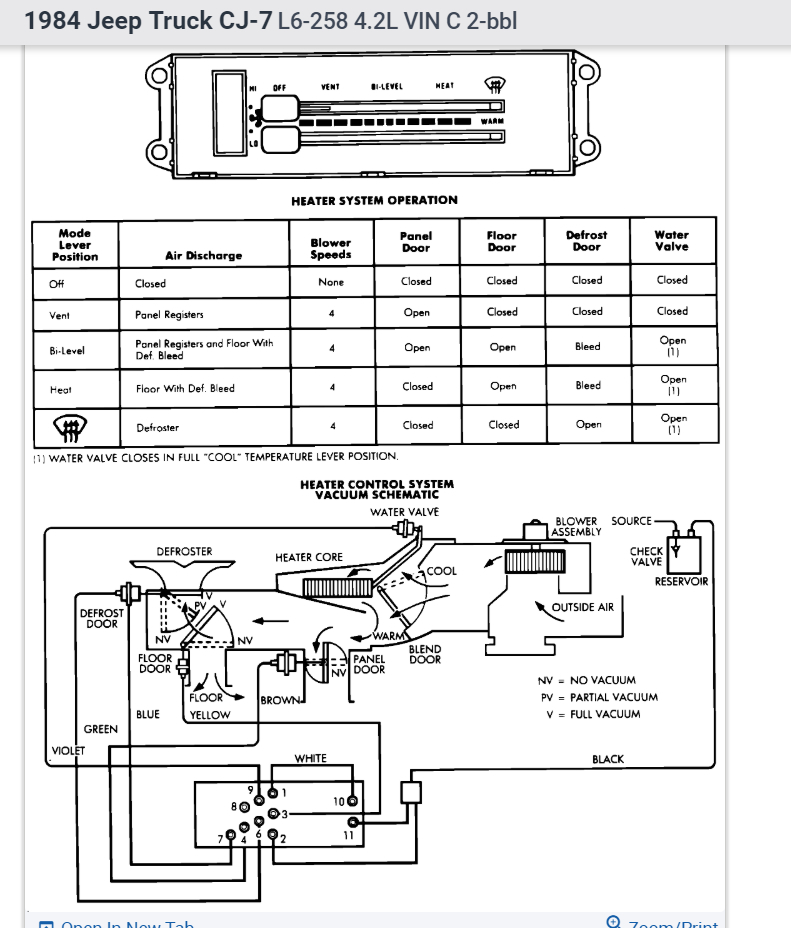

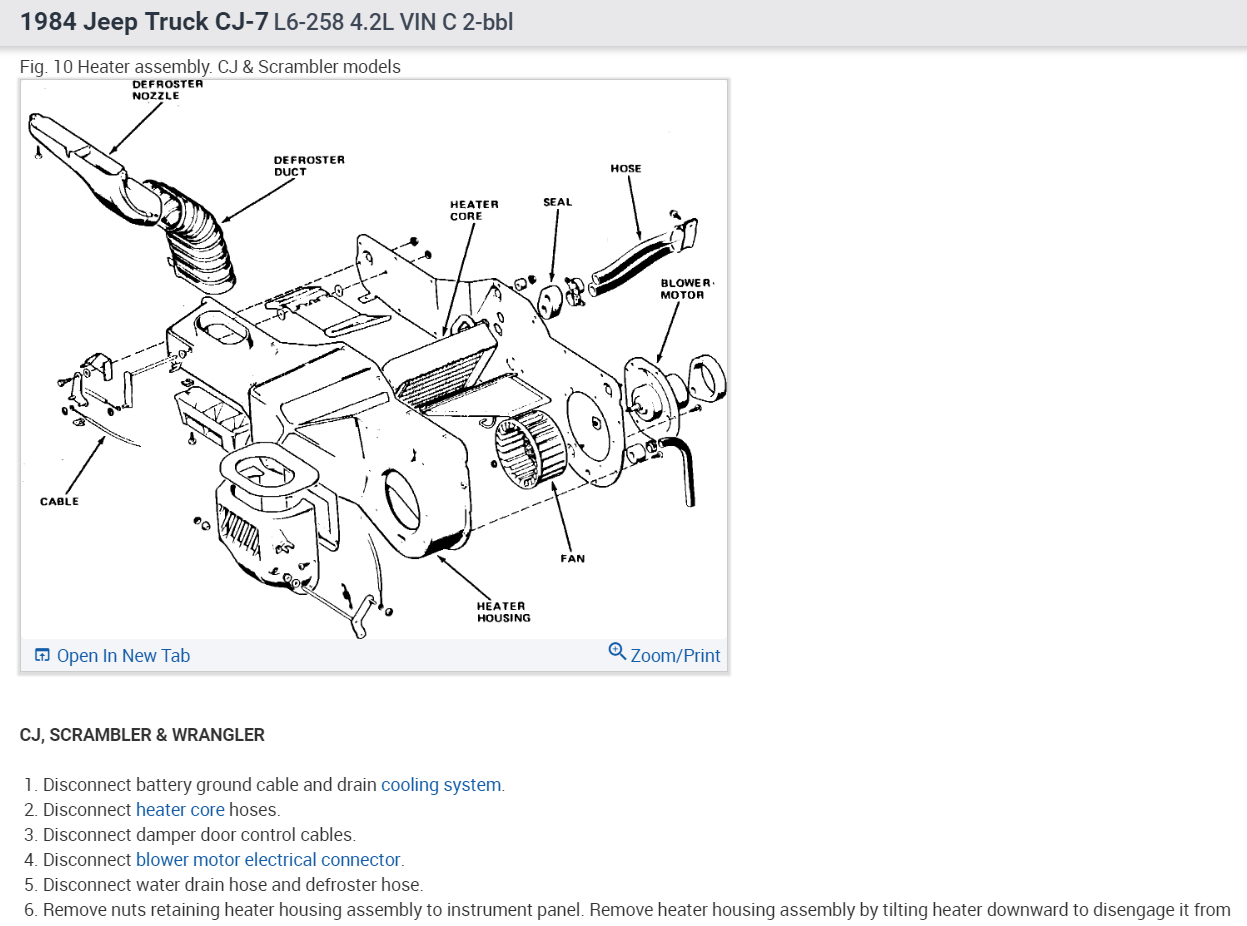

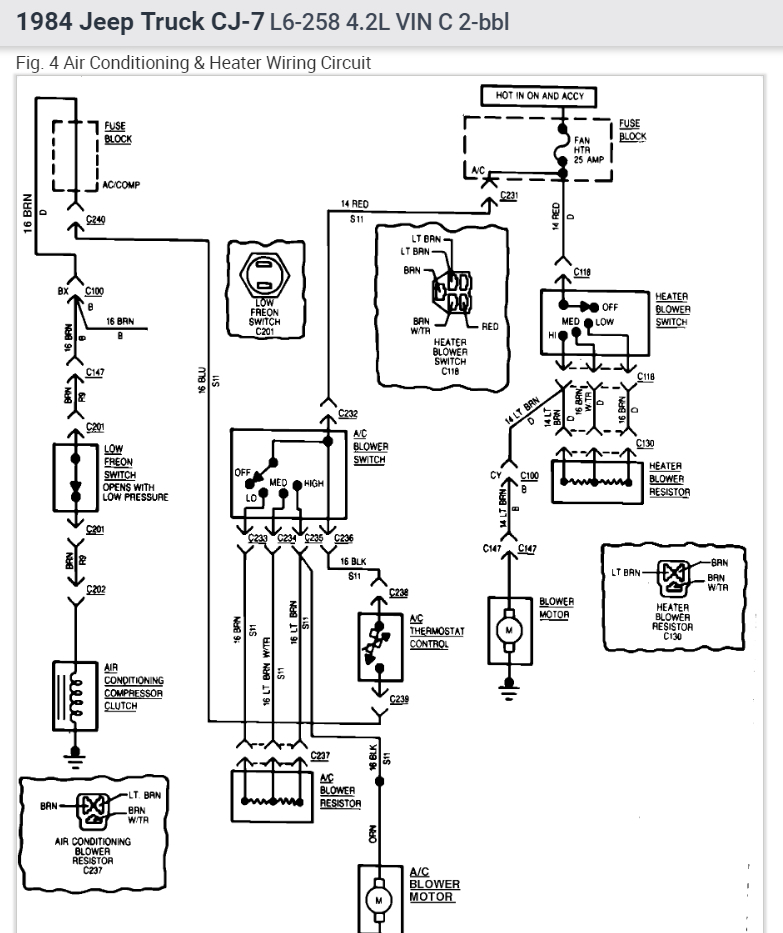

Here are the heater vacuum hoses with the electrical diagrams as well to help you see how the system works and it shows how to do a heater core. Check out the guide to walk you through the steps and the diagrams below.

https://www.2carpros.com/articles/replace-heater-core

and

https://www.2carpros.com/articles/replace-heater-hoses

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Medic,

Thanks for the post worked great I love this site.

Good to hear, please use 2CarPros anytime we are here to help.

Cheers

Just replaced heater core on my jeep. The hoses had been bypassed by previous owner and I need to know which hose connects to which tube on heater core?

I beg to differ here...............
It definitely does matter which direction the coolant flows. It needs to enter at the lowest point and exit from the highest. Otherwise you will not keep the air out of the heater core and air doesn't provide heat. If coolant is pushed up from the bottom, it will push any air out the top and keeps the core full.

i baught jeep used heater core was off i replaced i need to know where to run the hoses thanks

they are both the same size. verify this. you can place them in either direction

Roy
