Where are the timing marks

1983 DAIHATSU CHARADE
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST

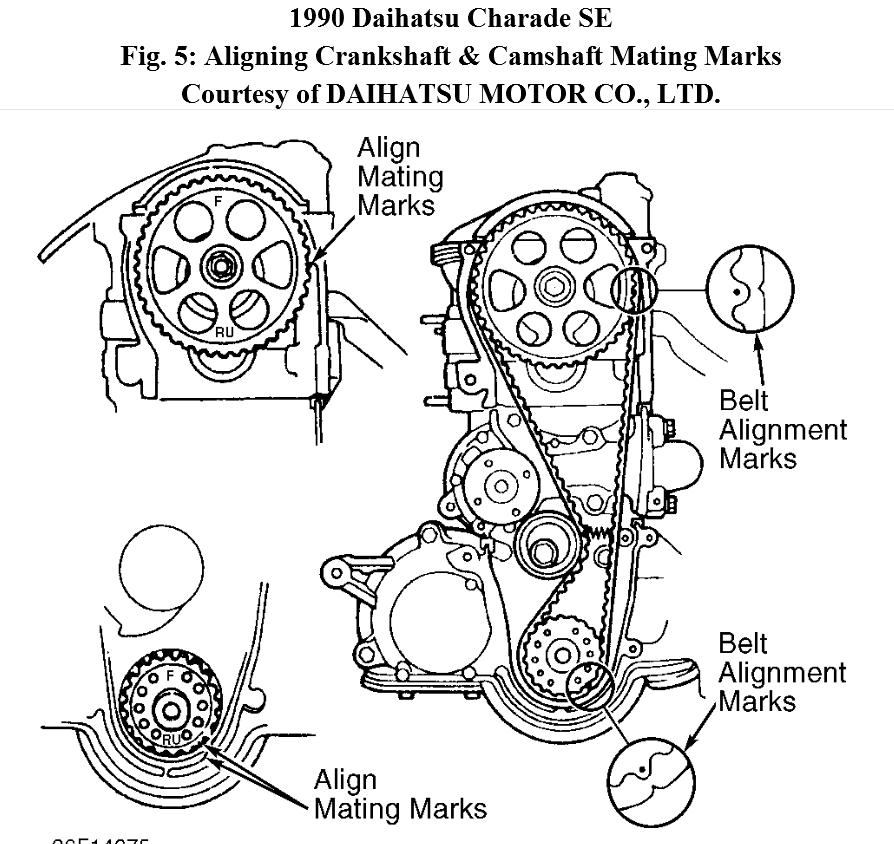

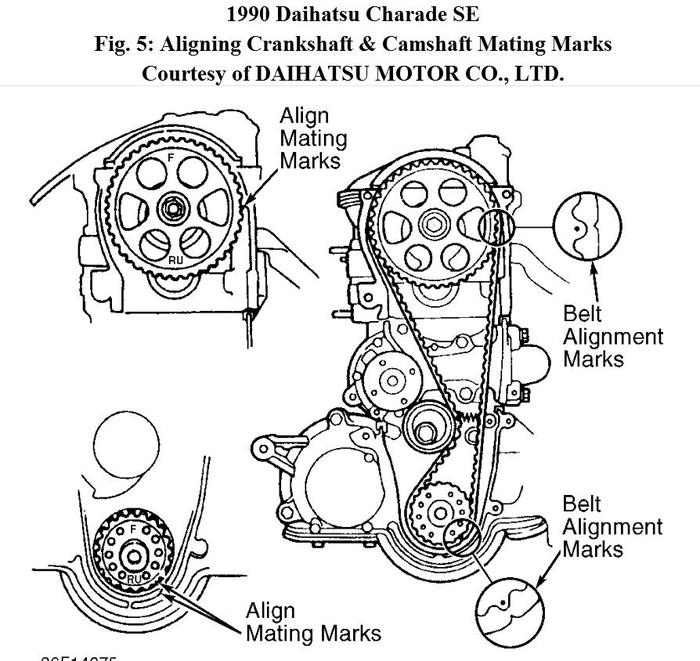

Where are the timing marks on the 993cc three cylinder engine?
What tension are the head bolts tightened down to?
Nov 12, 2012 at 9:01 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

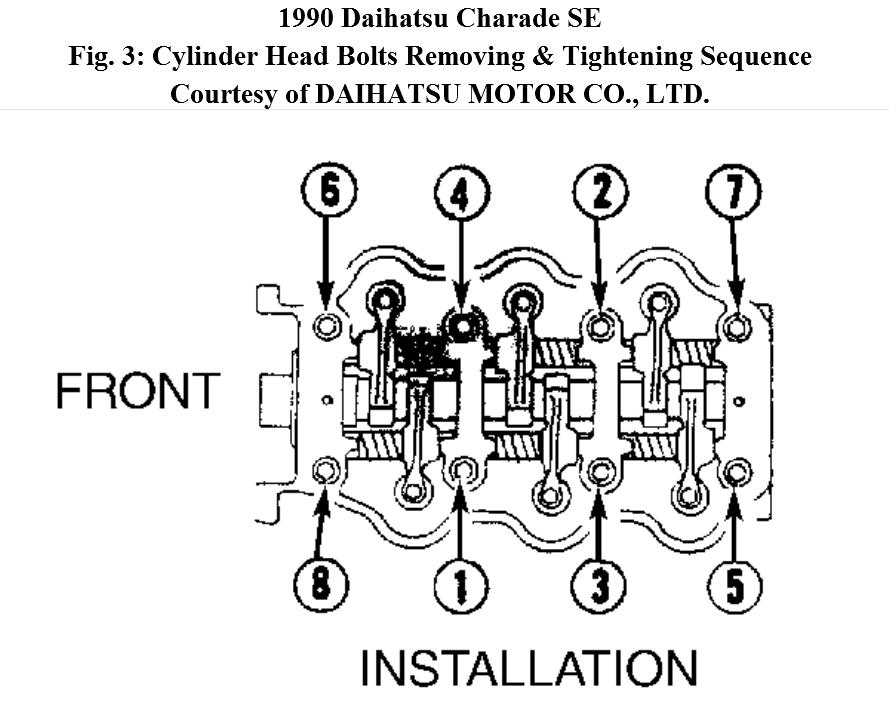

Cylinder head bolts are tightened in three steps to 40-47 ft.lbs (54-64 n.M.). Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Nov 13, 2012 at 3:29 PM
Avatar
JACKRUSSELL
  • MEMBER
  • 1 POST
Electrical problem
1990 Daihatsu Charade Manual

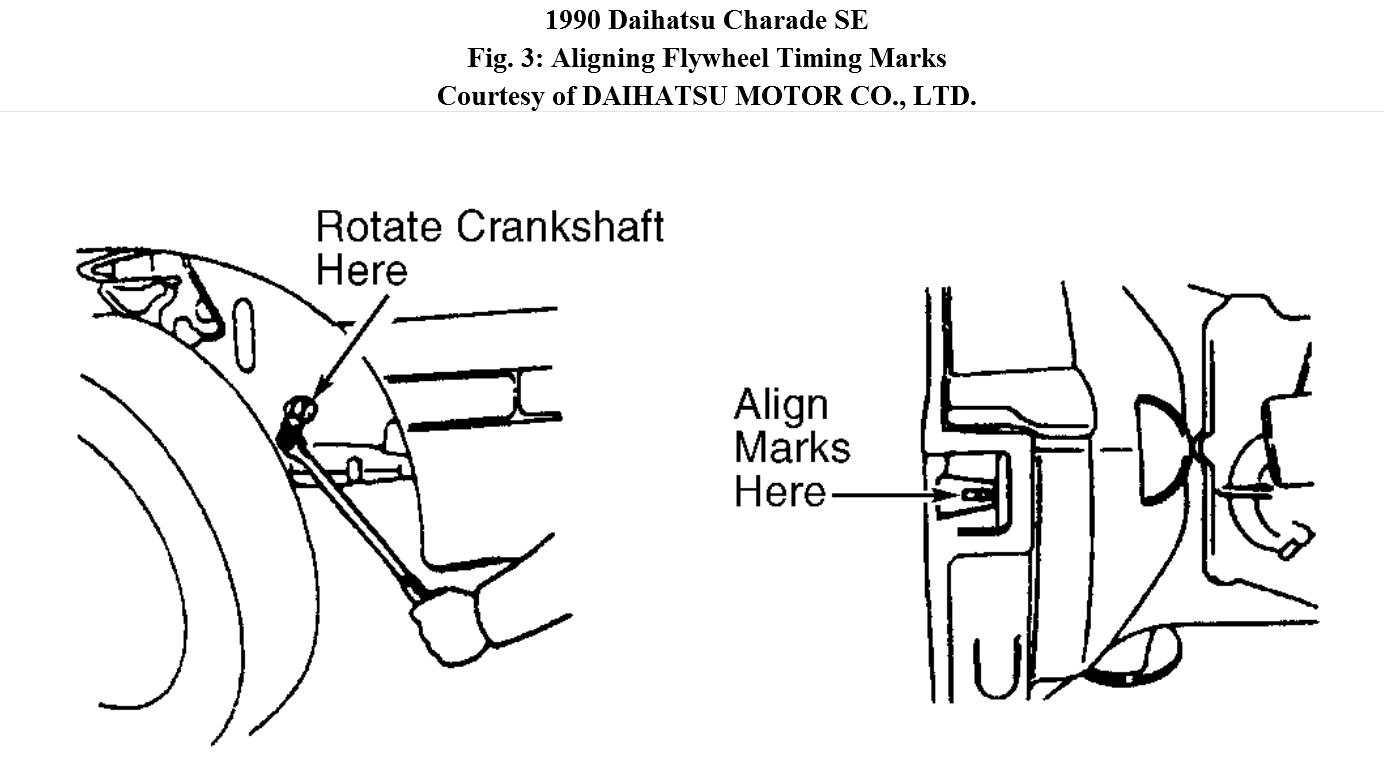

On the 1990 Daihatsu Charade 3 Cylinder, Where are the timing marks located?
Apr 2, 2019 at 6:54 PM (Merged)
Advertisement
Avatar
DAVE H
  • CERTIFIED EXPERT
  • 13,384 POSTS
your local autoparts store will supply a repair manual with the details you need inside
Apr 2, 2019 at 6:54 PM (Merged)
Avatar
RAYTHOMAS1
  • MEMBER
  • 1 POST
How do you release the tension on the timing belt so that it can be replaced? (3 cylinder motor)
Where are the valve timing marks?
Apr 2, 2019 at 6:54 PM (Merged)
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
what motor???

there is a tensioner that you lossen the center nut, release the tension and tighten it up in the released position for re installing.

Roy
Apr 2, 2019 at 6:54 PM (Merged)
