I have fire going to the coil but no fire coming out??

1982 FORD F-100
Avatar
GYVOR
  • MEMBER
  • 1 POST
I have replaced the coil and the module. I have put a new coild wire on and am in the proccess of changing the distributer. I have no idea where to look next i have good fire to coil and good ground and have replaced the coil twice thinking i might have got a bad one from the parts house.
Dec 19, 2011 at 8:52 PM
Advertisement
Avatar
CJ MEDEVAC
  • CERTIFIED EXPERT
  • 11,004 POSTS
WHAT ENGINE YOU GOT?

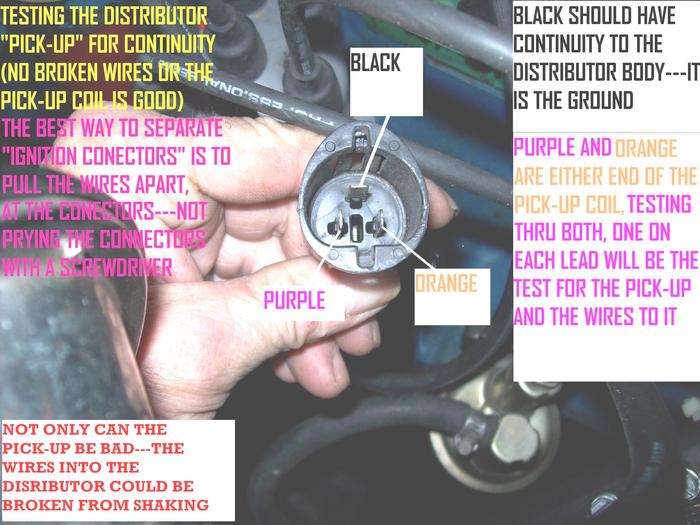

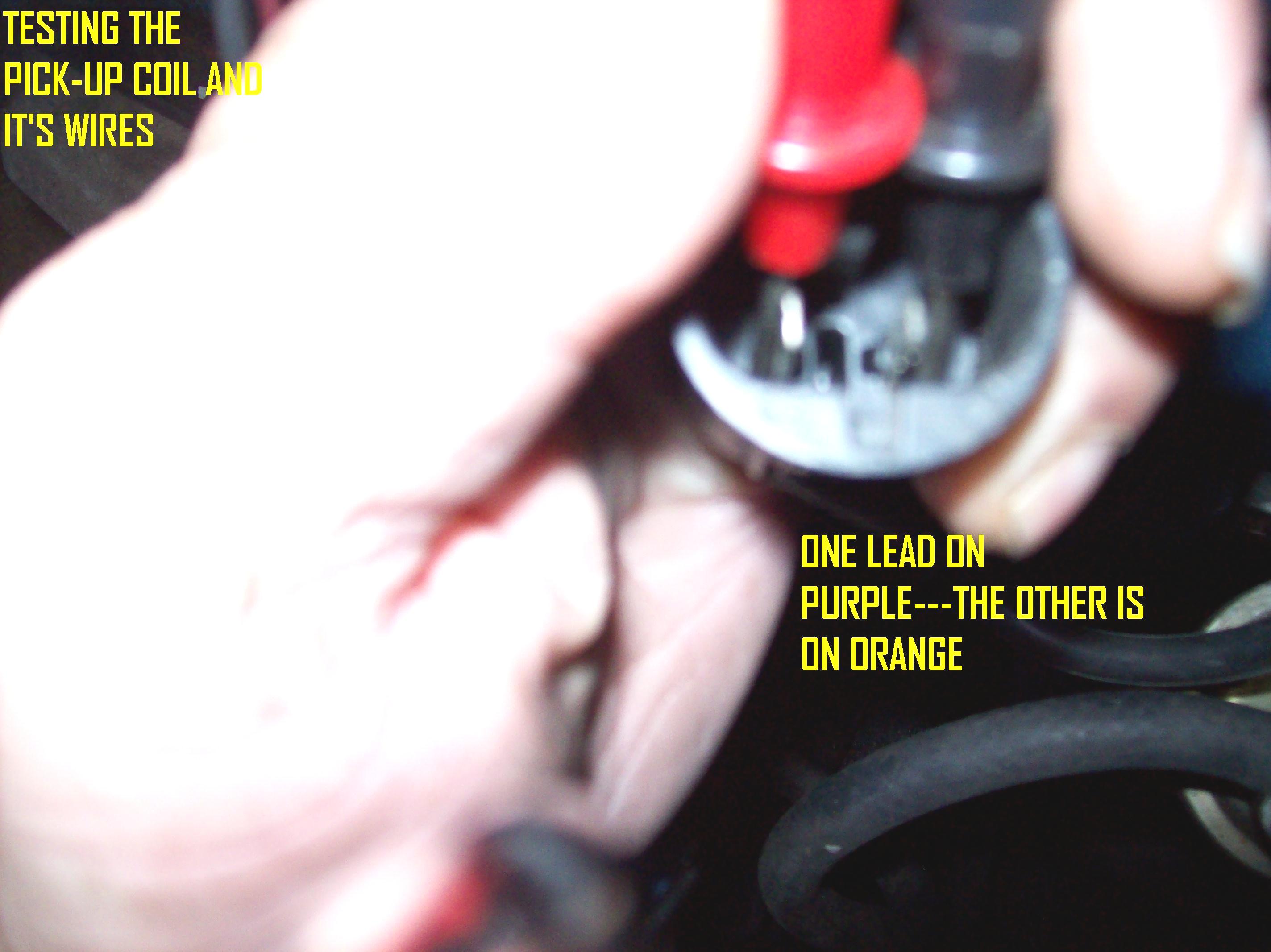

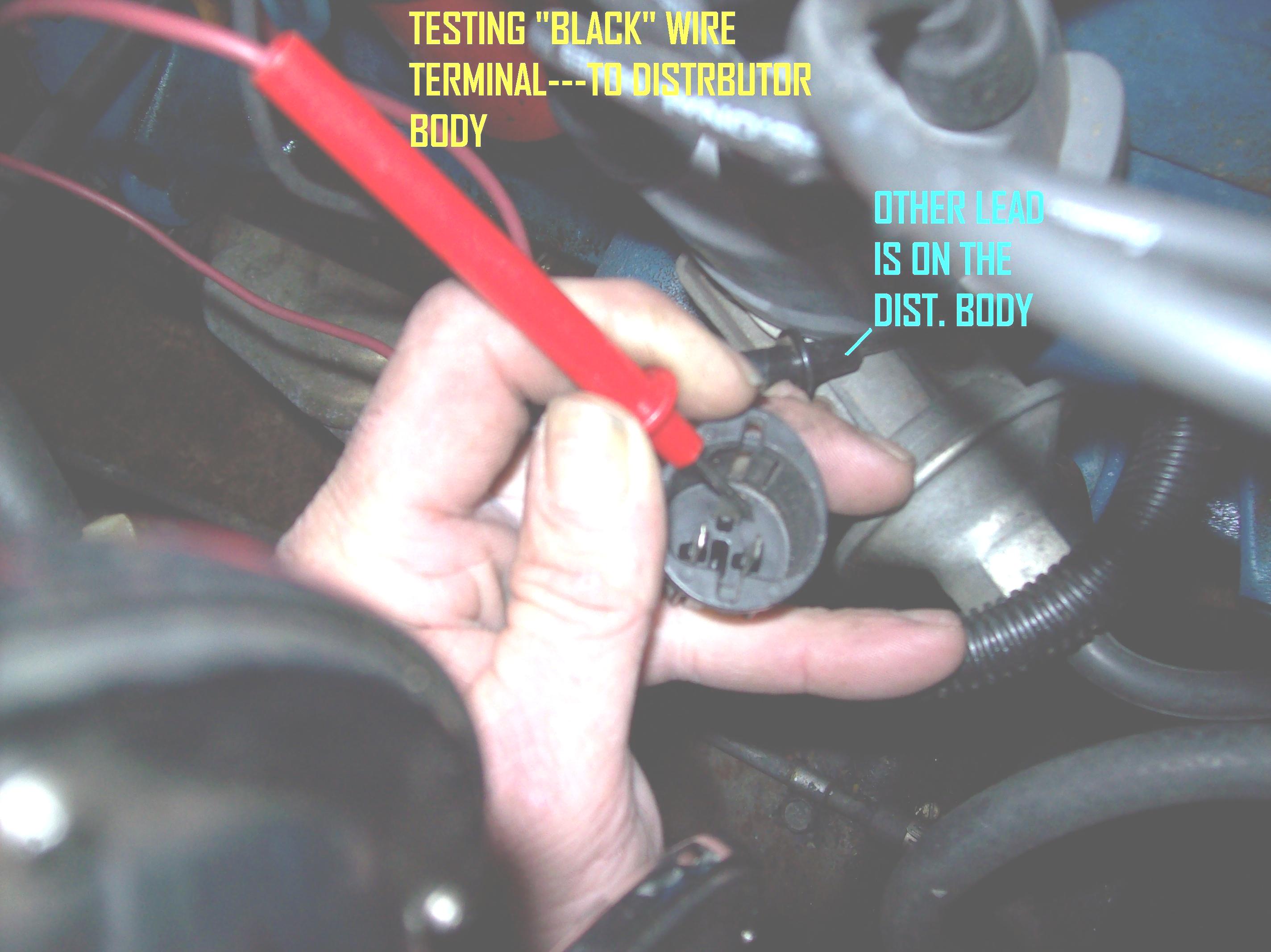

IF YOURS IS LIKE A JEEP CJ, THE PIC I HAVE IS HOW TO TEST THE DISTRIBUTOR

KEEP IN MIND, YOU COULD HAVE A BAD "NEW MODULE" I HAVE SEEN IT SEVERAL TIMES WITH CJs, THEY ARE TESTABLE AT THE PARTS STORE, I RECOMMEND 5 TO 8 CONSECUTIVE TESTS TO WARM THEM UP, IF THE LAST FEW FAIL...IT'S BAD!---SAME GOES FOR A NEW ONE BEFORE YOU WALK OUT THE DOOR WITH IT

ALTHOUGH I AM A JEEP CJ KINDA GUY--CJs USE A FORD IGN SYSTEM, I HAVE MORE DIAGRAMS PROBABLY SIMILAR TO YOUR RIG, THAT MAY HELP

IS YOUR MODULE "BLUE" WHERE THE WIRES COME OUT OF IT?

YOUR TURN

THE MEDIC

Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Dec 19, 2011 at 9:39 PM
