I have a charging problem and I think it in the regulator or wiring

1978 SUBARU BRAT
172,892 MILES
Avatar
MIKE47411
  • MEMBER
  • 1 POST
For some reason the regulator is not working properly and the wiring is not stock how does the regulator wiring go
Oct 3, 2012 at 12:16 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

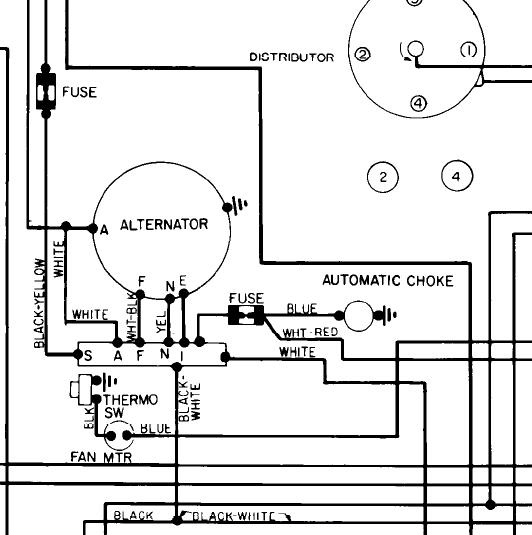

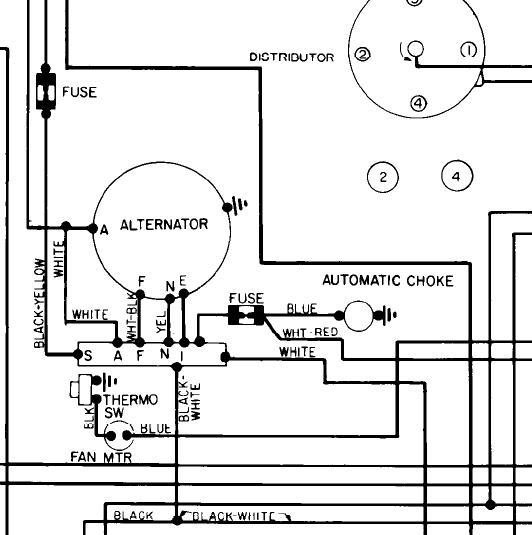

This is the wiring for the alternator. The voltage regulator should be external and could be the reason why the alternator is not charging.
Image (Click to enlarge)
Attached Media
Oct 3, 2012 at 1:26 AM
