1974 Dodge Custom What Part is this!!?

1974 DODGE CUSTOM
115,000 MILES • 6.6L • V8 • AUTOMATIC
Avatar
DOCTORSHARPY
  • MEMBER
  • 9 POSTS

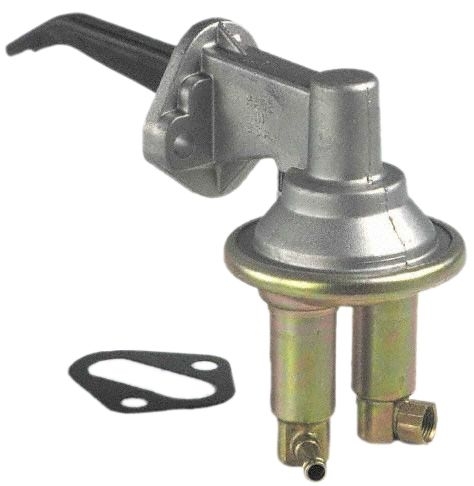

I have to change the fuel pump and there's a little problem, there's a little inlet, or outlet pipe that's stuck. It's a threaded metal pipe that the gas line from the back end hooks up to, otherwise.. It would go in the right port on the attached picture.
Image (Click to enlarge)
Attached Media
Jan 9, 2014 at 6:25 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

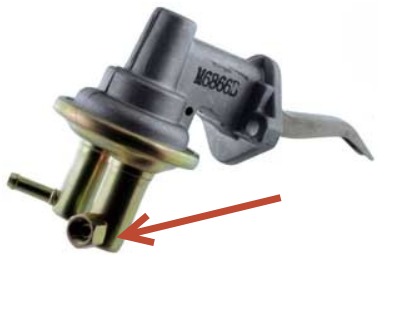

if I understand you right you are wondering what goes where, in the pic where I have the arrow pointing to goes to the carb......
Image (Click to enlarge)
Attached Media
Jan 9, 2014 at 6:35 AM
Avatar
DOCTORSHARPY
  • MEMBER
  • 9 POSTS
http://imgur.com/V6NODmr looking at my picture.. That is correct.. I forgot the angle on the pipe.. Been about 2 weeks since I took it off.
Jan 9, 2014 at 6:44 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
those had a large rounded bend at that point because the line goes between the engine and alternator if it's a V8
Jan 9, 2014 at 6:46 AM
Avatar
DOCTORSHARPY
  • MEMBER
  • 9 POSTS
Is there any specific name for that, because mine is stuck in there too tough, tried using PB blaster to get it loosened up and that didn't work.
Jan 9, 2014 at 6:48 AM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
if you are replacing the pump use a line wrench to get on the fuel line then hold the other with a wrench it should break away like that. if you are replacing the and it's damaged then it really doesn't matter if you break the old pump or not. It's just a fuel line an dnot that hard to do or replace the line for that matter. I have no idea what you are trying to do.
Jan 9, 2014 at 7:10 AM
Avatar
DOCTORSHARPY
  • MEMBER
  • 9 POSTS
Well the problem was that I could not get the outlet pipe off the old pump after removing the pump. The new pump did not come with one. And I have tried and tried to get that little pipe off the pump but cannot.
Jan 9, 2014 at 7:24 AM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
it's probably soldered or welded to theold pump. if the pump you got just has two nipples then put a hose on it and cut the fuel line to connect. I imagine you can always take it back for the correct one if you dont' want to do that. most of them I looked at at rock auto were like the old ones with the fitting attached. course it was a coronet and I know a dart didn't come with a 400 in it stock.
Jan 9, 2014 at 7:30 AM
