how to wire a 1962 chevy custom truck v8 fo a one wire alternator with built in regulator

1962 CHEVROLET TRUCK
250,000 MILES
Avatar
BILLY C
  • MEMBER
  • 21 POSTS
truck has factory wiring. voltagr regulator plug have F 2 3 4 terminalstruck has light in dash for charging indicator
Apr 19, 2012 at 4:09 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

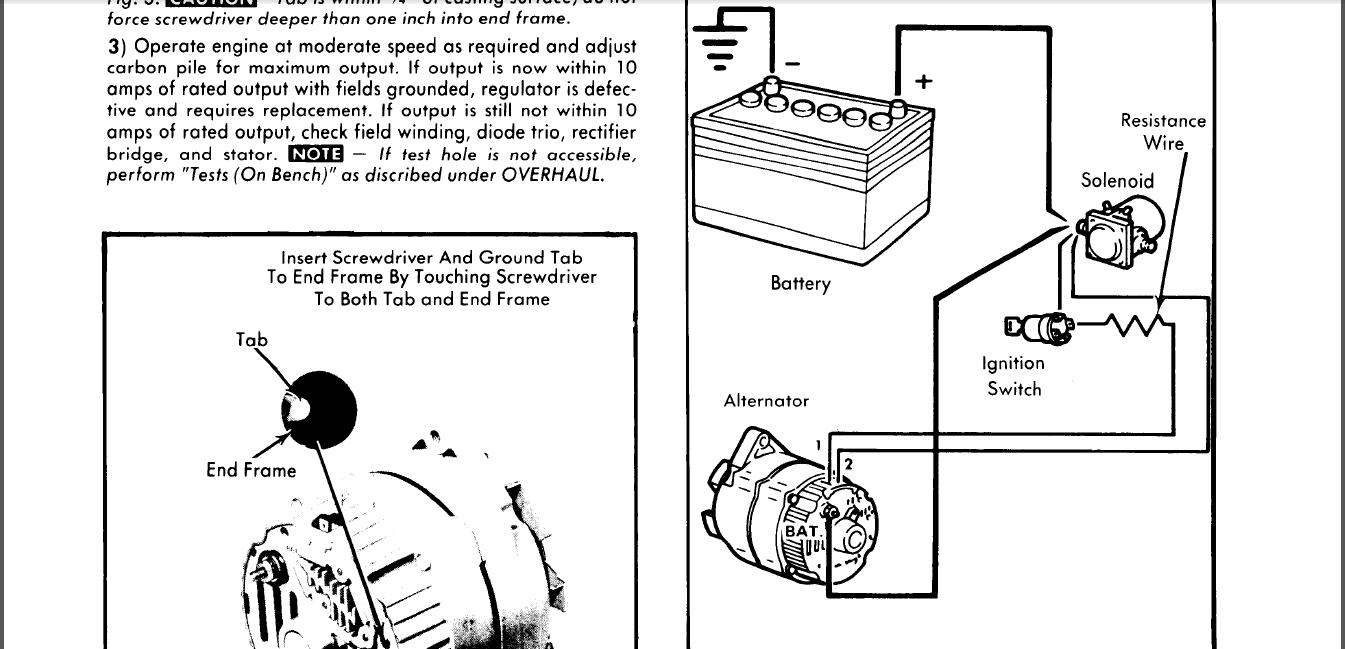

Here's how you wire it to a an integral regulator

Image (Click to enlarge)
Attached Media
Apr 19, 2012 at 5:37 PM
Avatar
BILLY C
  • MEMBER
  • 21 POSTS
mr.rasmataz the alternator i am attempting to inatall came off a 1998 chevy truck with a large one wire plug intergal regulator
Apr 19, 2012 at 8:57 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
See below

Image (Click to enlarge)
Attached Media
Apr 21, 2012 at 9:59 PM
