Camshaft position sensor location?

2009 CHEVROLET MALIBU
169,545 MILES • 4WD • AUTOMATIC
Avatar
ALEX LEE
  • MEMBER
  • 1 POST
I replace the camshafts position sensor that’s in the front of the engine. Now I’m getting told there’s another one in the back! I would like to know where it is at in the back.
Aug 7, 2019 at 6:00 PM
Advertisement
Avatar
SCGRANTURISMO
  • CERTIFIED EXPERT
  • 4,897 POSTS
Hello,

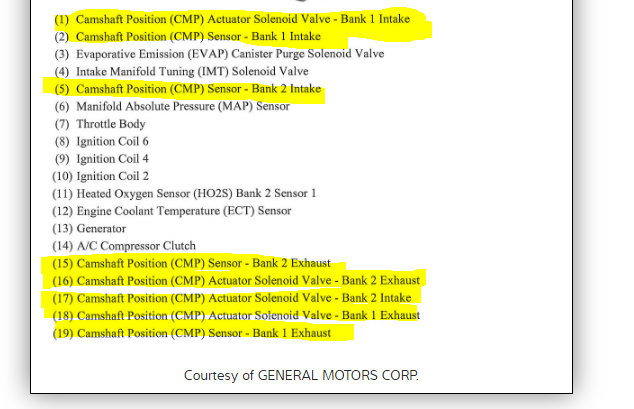

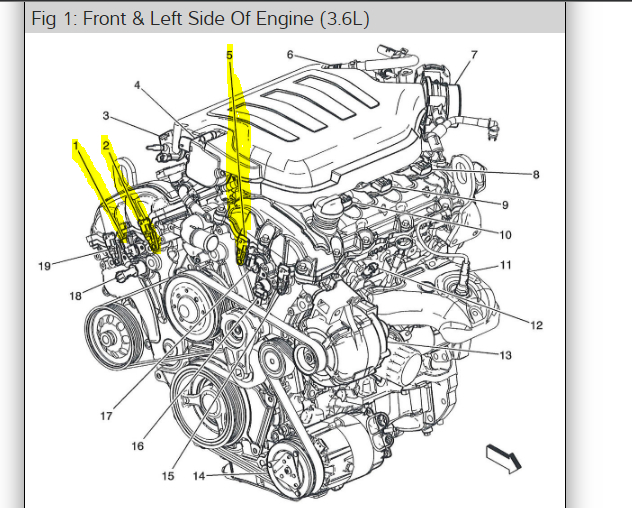

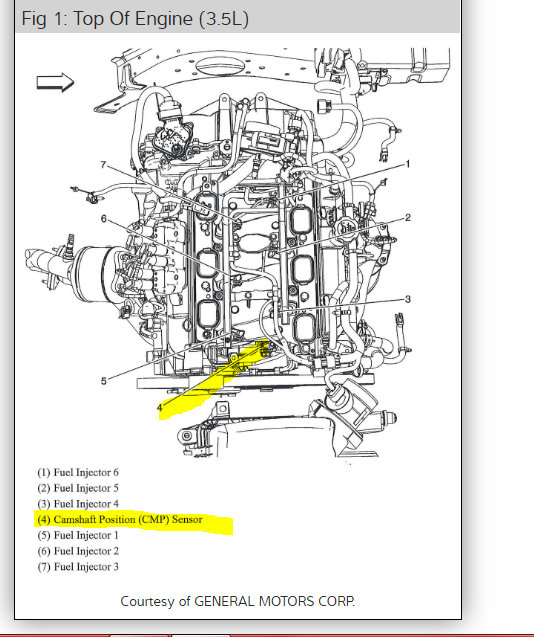

The information that you requested is in the diagrams down below. Please go through the information and get back to us with what you are able to find out.

Thanks,
Alex
2CarPros
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Aug 8, 2019 at 1:13 AM
