heater not working

2008 HYUNDAI ENTOURAGE
140,000 MILES • 6 CYL • FWD • AUTOMATIC
Avatar
QMAGS655
  • MEMBER
  • 1 POST
temperature here the last week has been -30 or lower and all of a sudden last night when we have the heat on full in all vents the right side (which has an independent control) wont heat up it blows cold all the time. every other vent blows warm/hot except the passenger side.
Dec 10, 2013 at 7:31 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Hello,

This sounds like a temperature blend door actuator failure. Here is a guide that will show you what you are in for when doing the job.

https://www.2carpros.com/articles/replace-blend-door-motor

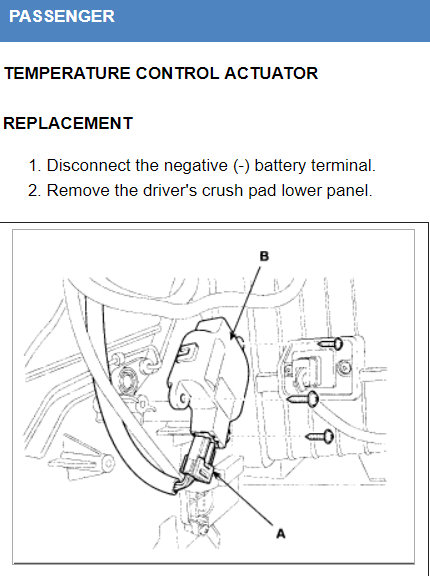

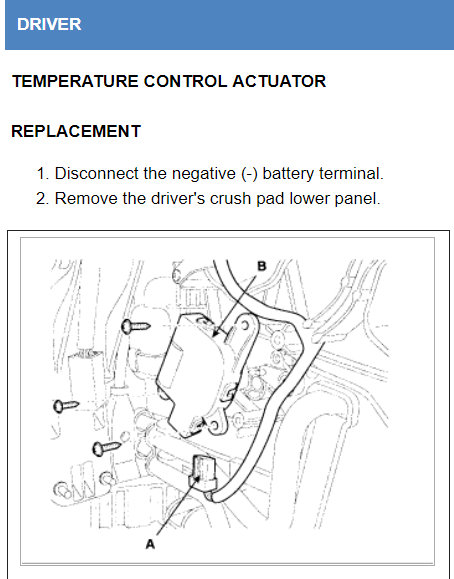

Here is how the job is done on your car for both drivers and passengers side.

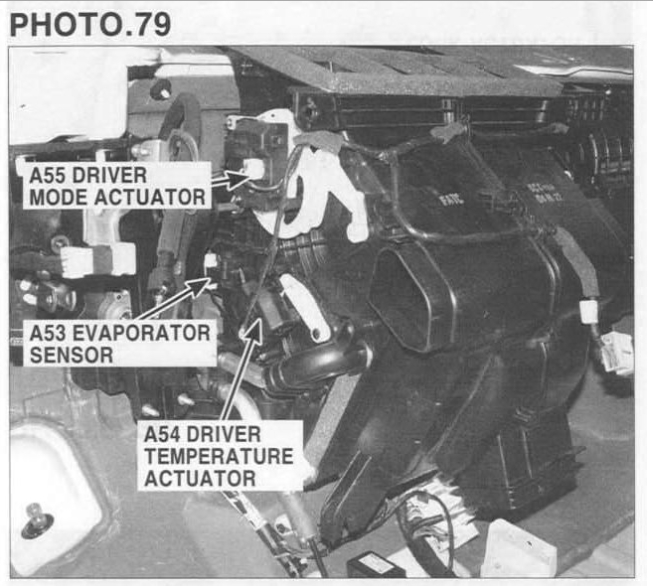

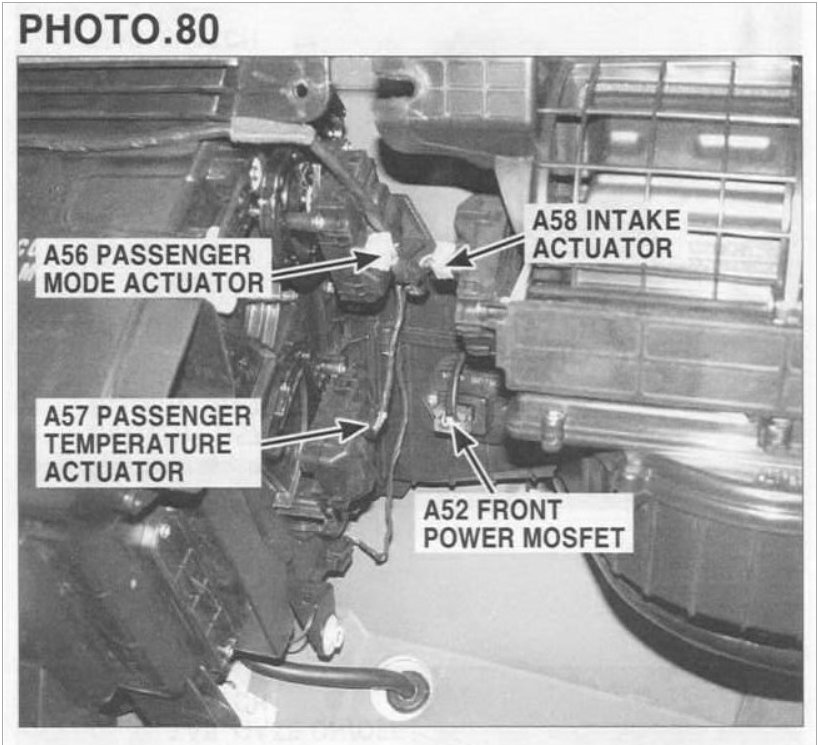

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers,
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Dec 11, 2013 at 7:24 AM
