Windows are stuck in the up position

2003 DODGE STRATUS
198,657 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
DREWTRAG
  • MEMBER
  • 1 POST
Windows will not work stuck in up position. I have checked all the fuses and relays I can find. I have power going into and out of the switch and window motor. Need help ASAP!
Jun 18, 2018 at 8:21 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Hello,

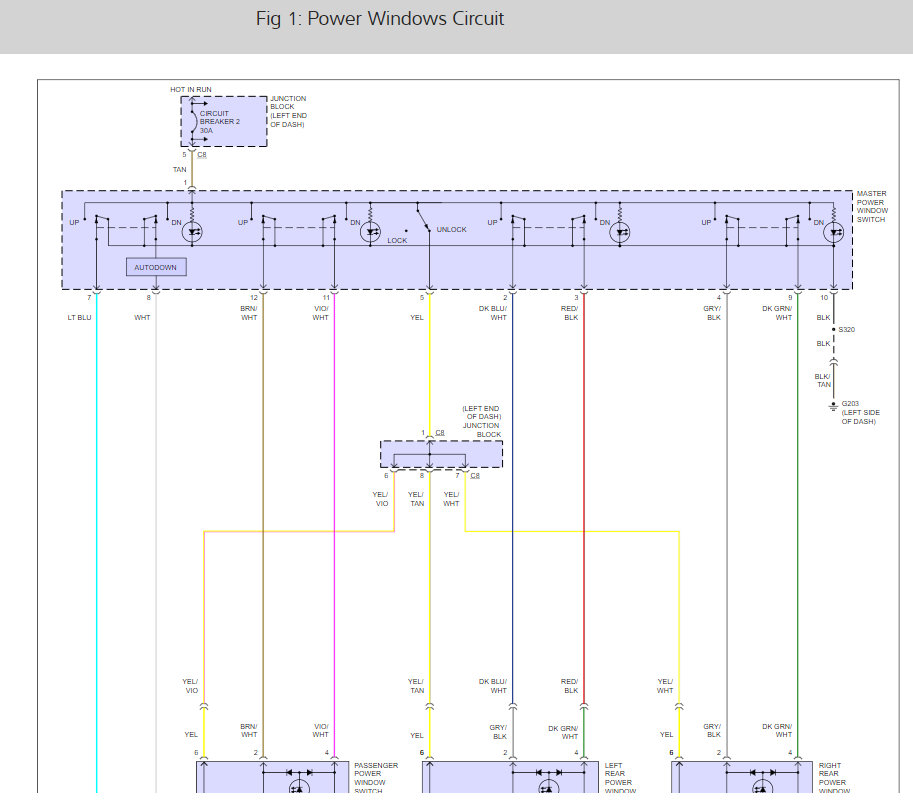

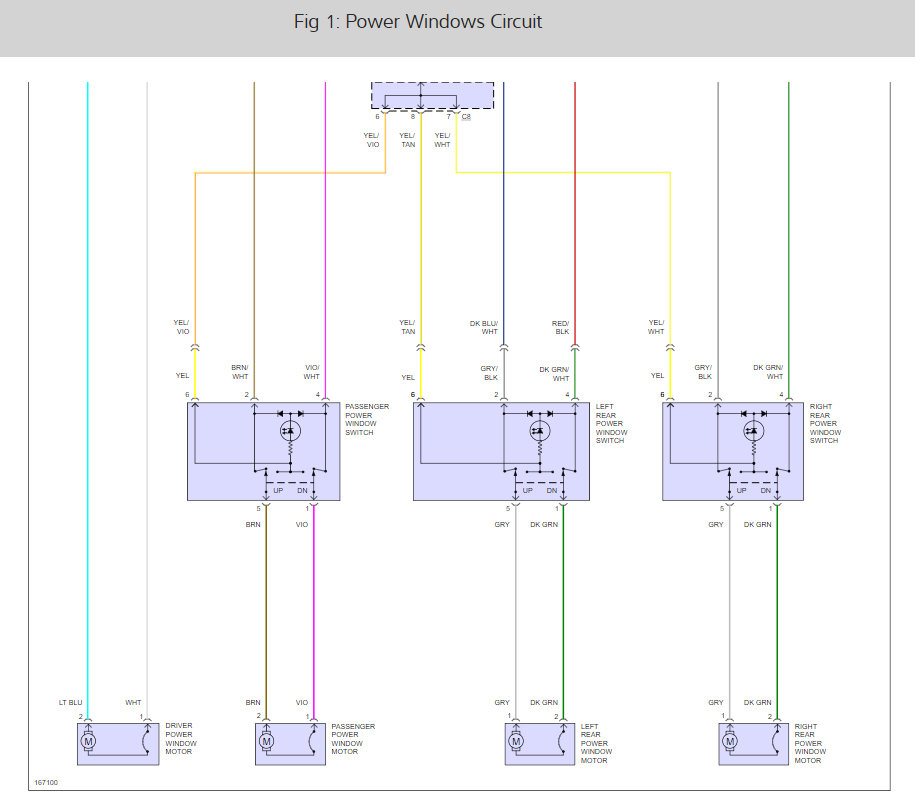

It sounds like you lost the window switch ground or the switch is bad. Here are two guides and the wiring diagrams so you can see whats going on:

https://www.2carpros.com/articles/electric-window-repair

and

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

Please run down these guides and diagrams and report back.

Cheers, Ken
Images (Click to enlarge)
Attached Media
Attached Media
Jun 20, 2018 at 10:41 AM
